GS130G-AWPFK (1991)
Toyota Crown
Production
Oct 1991
-
Apr 1999
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )

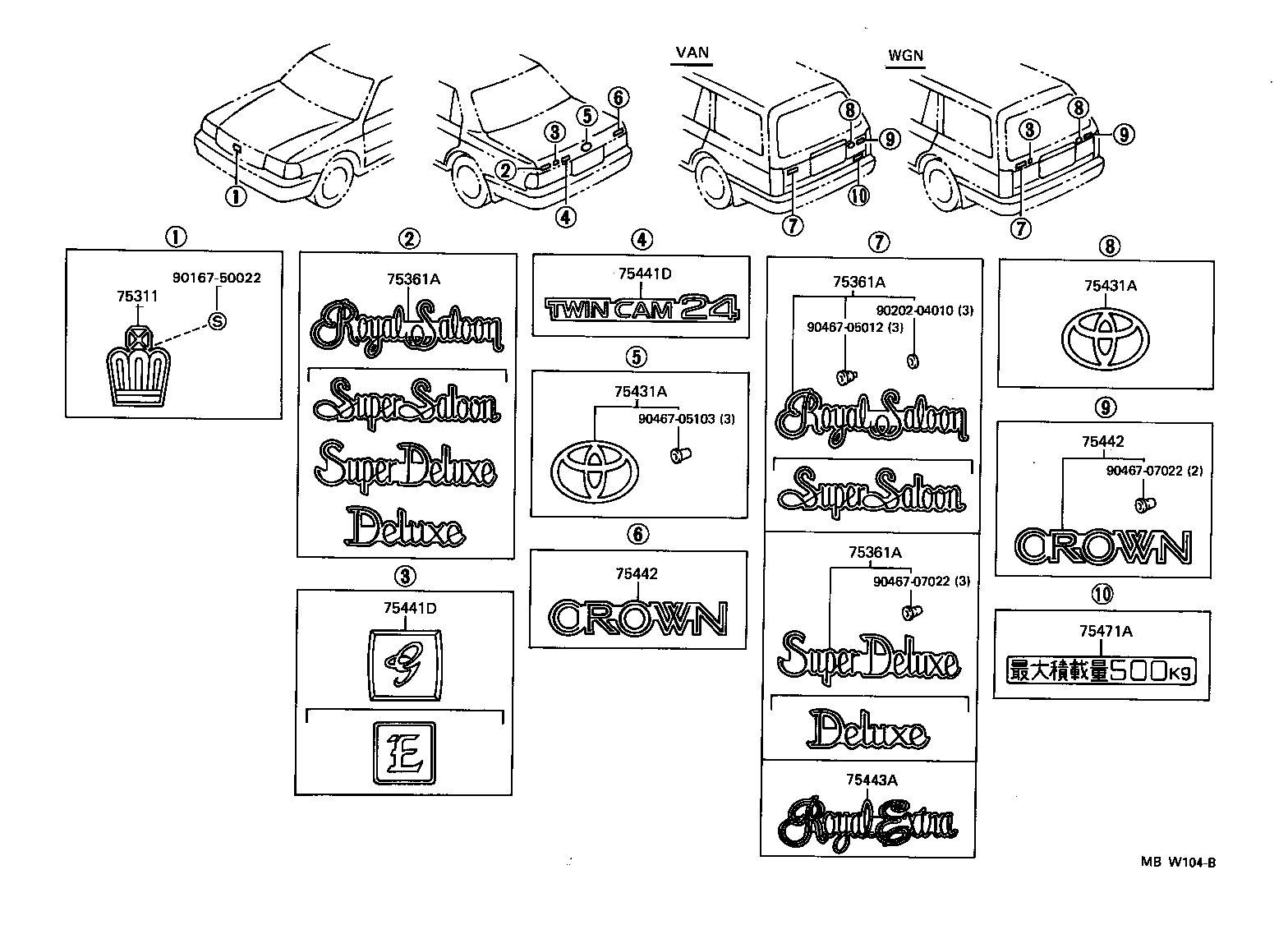

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75311-30250 |
LS130..SDX;GS130,136,LS136,YS130..DLX,DLXA,SALEX,SDX,STD |
1 | ||
| 75311-31010 |
GS13#..DLX,SDX |
1 | ||
| 75311-30250 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 75361A - PLATE, FRONT FENDER NAME, NO.1 | ||||
| 75361-30260 |
GS130,136..(V,WG)..SDX |
1 | ||
| 75361A - PLATE, FRONT FENDER NAME, NO.1 | ||||
| 75361-30260 |
GS130,136..(V,WG)..SDX |
1 | ||
| 75361A - PLATE, FRONT FENDER NAME, NO.1 | ||||
| 75361-30260 |
GS130,136..(V,WG)..SDX |
1 | ||
| 75431A - EMBLEM, BACK DOOR, NO.1 | ||||
| 75431-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 75431A - EMBLEM, BACK DOOR, NO.1 | ||||
| 75431-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 | ||||
| 75442-30110 |
GS130,136,JZS130,LS130,136..V,WG CROWN |
1 | ||
| 75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 | ||||
| 75442-30110 |
GS130,136,JZS130,LS130,136..V,WG CROWN |
1 | ||
| Common parts | ||||
| 90167-50022 | ||||
| 90202-04010 | ||||
| 90467-05012 | ||||
| 90467-05103 | ||||
| 90467-07022 | ||||
