GS130G-AWPFK (1991)

Toyota Crown

Production Oct 1991 - Apr 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

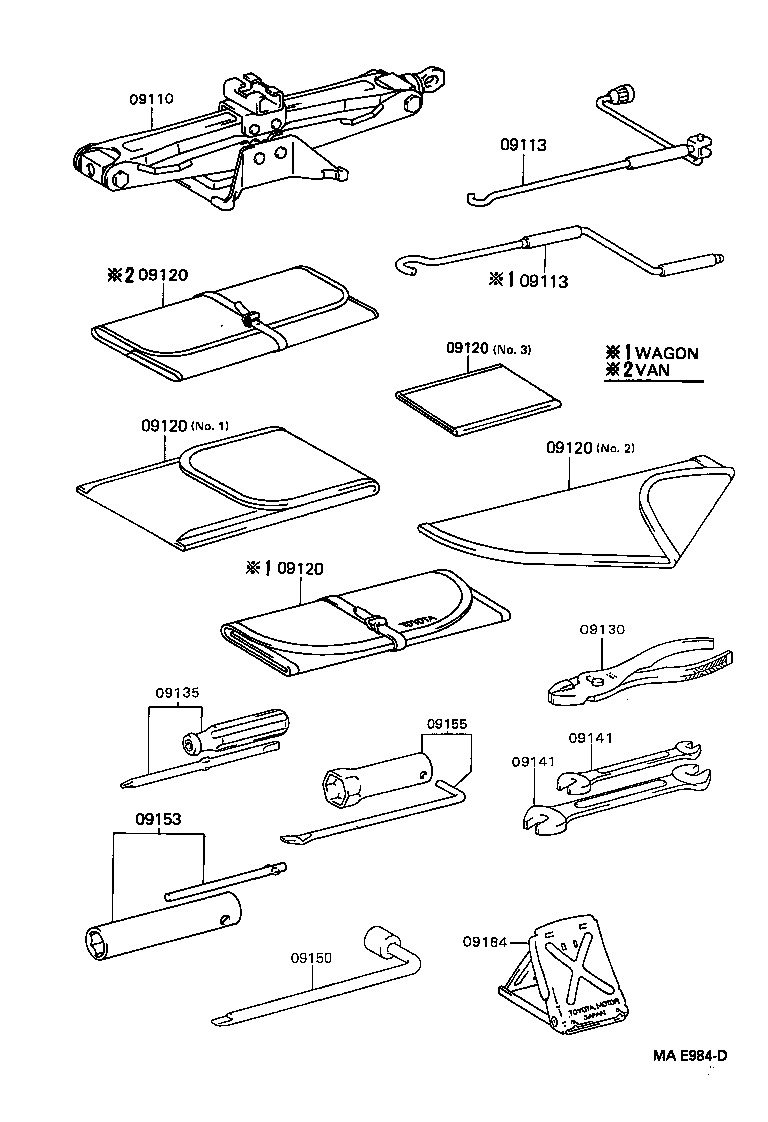

Click highlighted areas on diagram

diagram 09110 09113 09113 09120 09120 09120 09120 09120 09130 09135 09141 09141 09150 09153 09155 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-30081

GS130,131,JZS13#,LS130,131

 1
09111-30081

GS130,131,JZS13#,LS130,131,YS130

 1
09113 - HANDLE, JACK
09113-30030

GS130,JZS130,LS130..WG

 1
09113 - HANDLE, JACK
09113-30030

GS130,JZS130,LS130..WG

 1
09120 - BAG, TOOL
09120-24010

GS130,JZS133,135,YS130..LPEFI,TWC,TWLPG

NO.1

 1
09120-12011

GS130,JZS130,LS130..WG

 1
09120-16030

GS130,JZS130,LS130..WG

 1
09120 - BAG, TOOL
09120-24010

GS130,JZS133,135,YS130..LPEFI,TWC,TWLPG

NO.1

 1
09120-12011

GS130,JZS130,LS130..WG

 1
09120-16030

GS130,JZS130,LS130..WG

 1
09120 - BAG, TOOL
09120-24010

GS130,JZS133,135,YS130..LPEFI,TWC,TWLPG

NO.1

 1
09120-12011

GS130,JZS130,LS130..WG

 1
09120-16030

GS130,JZS130,LS130..WG

 1
09120 - BAG, TOOL
09120-24010

GS130,JZS133,135,YS130..LPEFI,TWC,TWLPG

NO.1

 1
09120-12011

GS130,JZS130,LS130..WG

 1
09120-16030

GS130,JZS130,LS130..WG

 1
09120 - BAG, TOOL
09120-24010

GS130,JZS133,135,YS130..LPEFI,TWC,TWLPG

NO.1

 1
09120-12011

GS130,JZS130,LS130..WG

 1
09120-16030

GS130,JZS130,LS130..WG

 1
09130 - PLIERS
99913-11500

GS13#,JZS13#,LS13#

 1
99913-11500

GS13#,JZS13#,LS13#,YS130

 1
09135 - DRIVER, SCREW
99915-10700

GS13#,JZS13#,LS13#,YS130

 1
99915-10700

GS13#,JZS13#,LS13#

 1
09141 - SPANNER
99914-10810

GS13#,JZS13#,LS13#,YS130

8 X 10

 1
99914-11214

GS13#,JZS13#,LS13#

12 X 14

 1
99914-11214

GS13#,JZS13#,LS13#,YS130

12 X 14

 1
99914-10810

GS13#,JZS13#,LS13#

8 X 10

 1
09141 - SPANNER
99914-10810

GS13#,JZS13#,LS13#,YS130

8 X 10

 1
99914-11214

GS13#,JZS13#,LS13#

12 X 14

 1
99914-11214

GS13#,JZS13#,LS13#,YS130

12 X 14

 1
99914-10810

GS13#,JZS13#,LS13#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

GS13#,JZS13#,LS13#,YS130

 1
09150-40010

GS13#,JZS13#,LS13#

 1
09184 - STOPPER, WHEEL
09184-00010

GS13#,JZS13#,LS13#

 1
09184-00010

GS13#,JZS13#,LS13#,YS130

 1
