GS130G-AWPFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

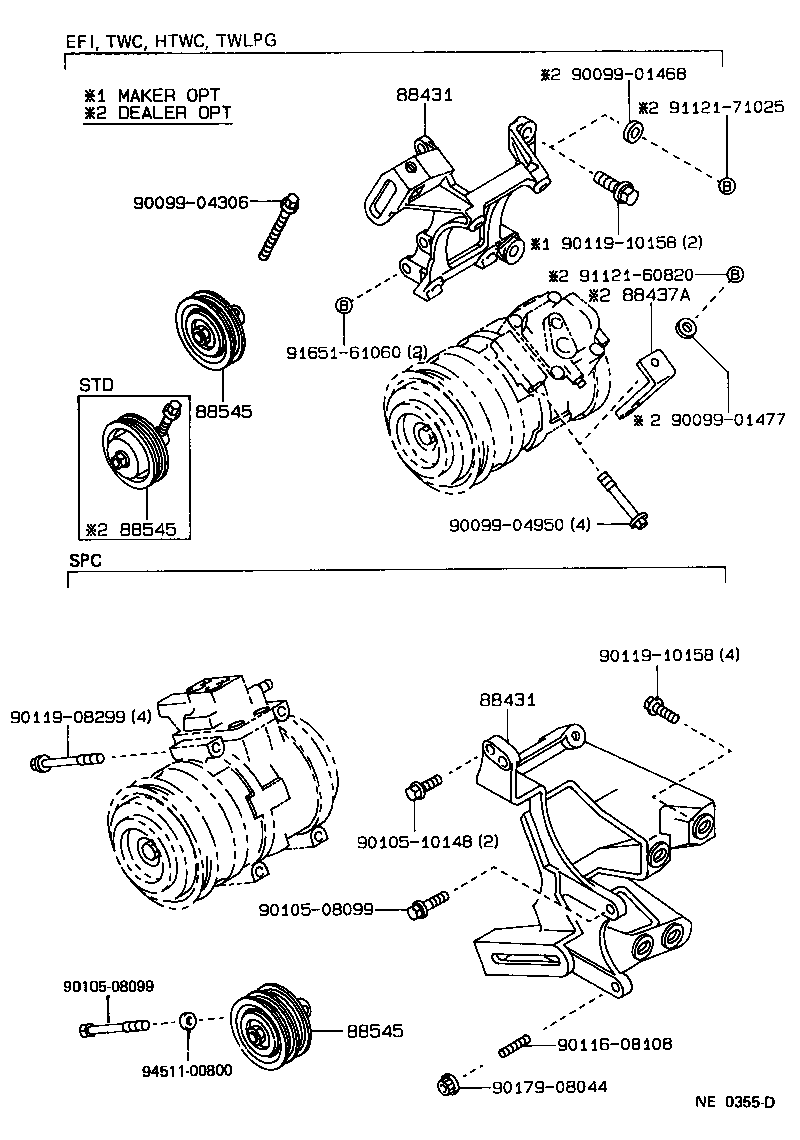

ILLUST NO. 1 OF 2(8709- )GS13#

Click highlighted areas on diagram

diagram 88431 88431 88437A 88545 88545 88545 9009901468 9009901477 9009904306 9009904950 9010508099 9010508099 9010510148 9011608108 9011908299 9011910158 9011910158 9017908044 9112160820 9112171025 9165161060 9451100800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24050

GS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24050

GS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI

 1
88437A - ATTACHMENT, COMPRESSOR
88437-24020

GS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI

 1
88545 - PULLEY ASSY, IDLE
88440-17010

GS13#,MS135,137..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)

 1
88545 - PULLEY ASSY, IDLE
88440-17010

GS13#,MS135,137..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)

 1
88545 - PULLEY ASSY, IDLE
88440-17010

GS13#,MS135,137..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)

 1
Common parts
90099-01468
90099-01477
90099-04306
90099-04950
90105-08099
90105-10148
90116-08108
90119-08299
90119-10158
90179-08044
91121-60820
91121-71025
91651-61060
94511-00800

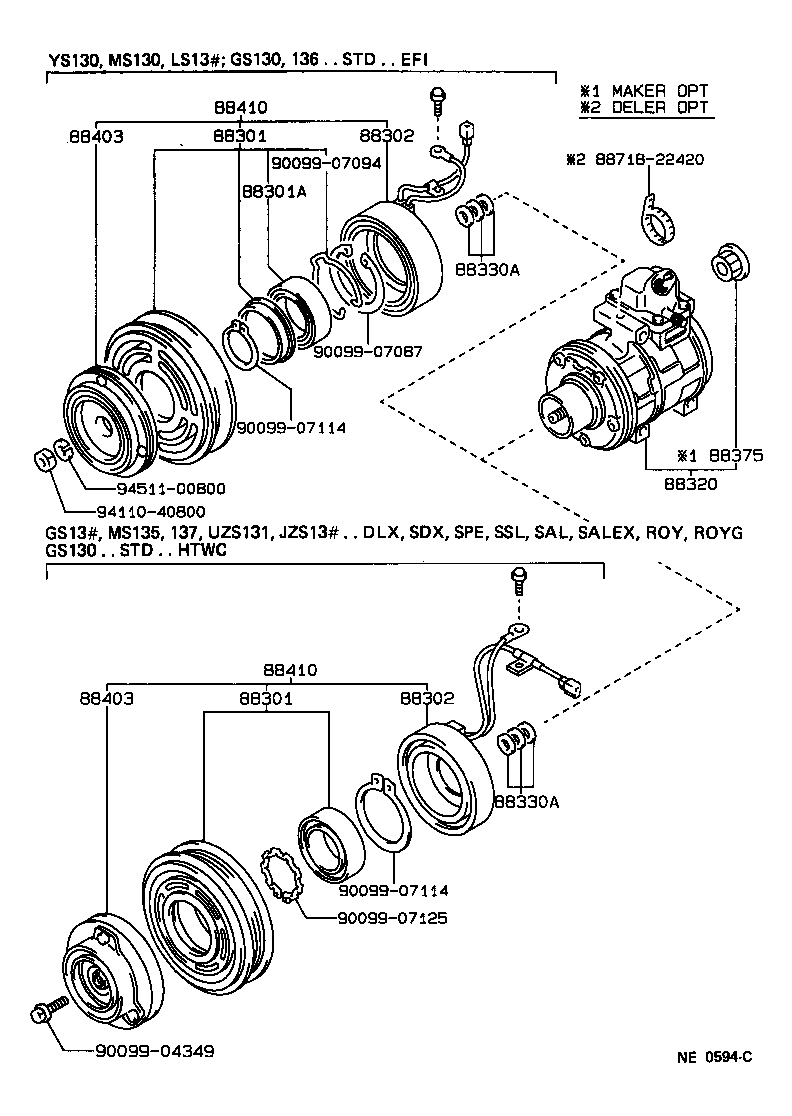

ILLUST NO. 2 OF 2(8709- )

Click highlighted areas on diagram

diagram 88301 88301 88301A 88302 88302 88320 88330A 88330A 88375 88403 88403 88410 88410 8871822420 9009904349 9009907087 9009907094 9009907114 9009907114 9009907125 9411040800 9451100800
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-30501

GS13#..(DLX,SAL,SALEX,SDX,SPE,SSL)..EFI

 1
88410 - CLUTCH ASSY, MAGNET
88410-30470

GS13#..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)

 1
88410 - CLUTCH ASSY, MAGNET
88410-30470

GS13#..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC)

 1
Common parts
88718-22420
90099-04349
90099-07087
90099-07094
90099-07114
90099-07125
94110-40800
94511-00800
