Toyota Crown GS130 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
JP
CROWN
GS130G-AWPFE (1987)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

GS130G-AWPFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989

Engine 1GE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

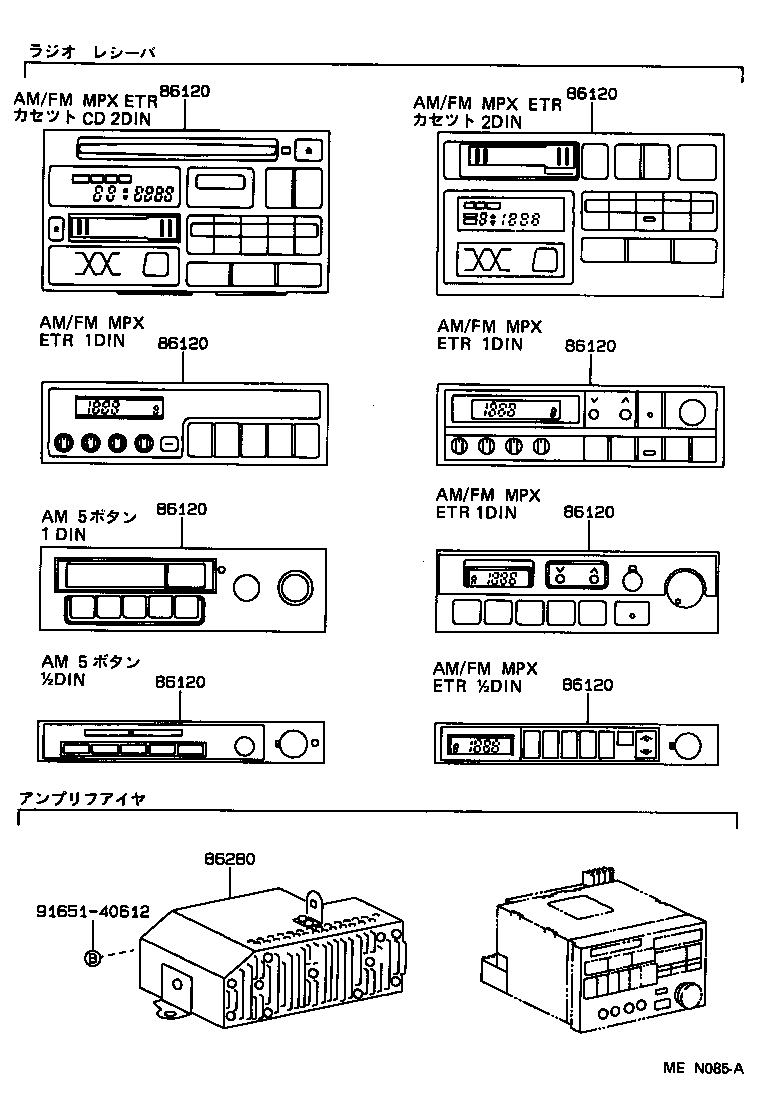

ILLUST NO. 1 OF 5(8709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
86120 - RECEIVER ASSY, RADIO
86120-30760	GS130,131,LS130,MS130..SAL,SALEX,SDX,SPE,SSL FUJITSU TEN,AM/FM MPX ETR 1DIN	09/1987 - 08/1989	1
Common parts
91651-40612

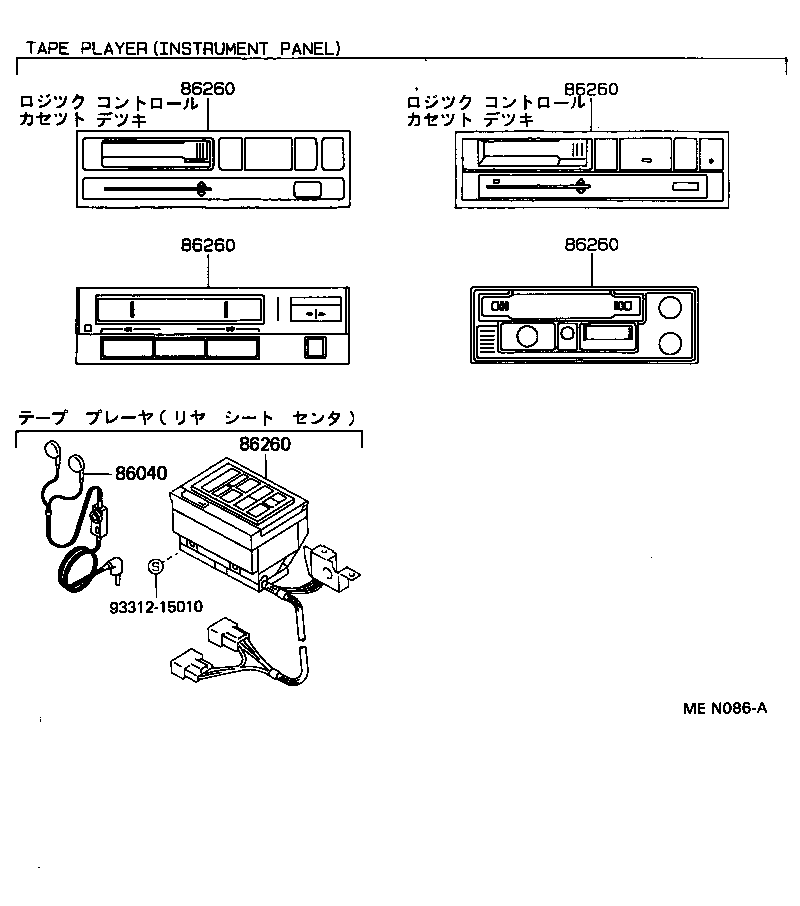

ILLUST NO. 2 OF 5(8709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86260 - TAPE PLAYER ASSY
86260-30250	GS130..WG..SDX;GS130,131,LS130..SAL,SALEX,SSL FRONT	09/1987 - 09/1988	1
86260-30230	MS130..ATM..SDX;GS130,LS130..SDX,SPE FRONT	09/1988 - 08/1989	1
86260 - TAPE PLAYER ASSY
86260-30250	GS130..WG..SDX;GS130,131,LS130..SAL,SALEX,SSL FRONT	09/1987 - 09/1988	1
86260-30230	MS130..ATM..SDX;GS130,LS130..SDX,SPE FRONT	09/1988 - 08/1989	1
86260 - TAPE PLAYER ASSY
86260-30250	GS130..WG..SDX;GS130,131,LS130..SAL,SALEX,SSL FRONT	09/1987 - 09/1988	1
86260-30230	MS130..ATM..SDX;GS130,LS130..SDX,SPE FRONT	09/1988 - 08/1989	1
86260 - TAPE PLAYER ASSY
86260-30250	GS130..WG..SDX;GS130,131,LS130..SAL,SALEX,SSL FRONT	09/1987 - 09/1988	1
86260-30230	MS130..ATM..SDX;GS130,LS130..SDX,SPE FRONT	09/1988 - 08/1989	1
86260 - TAPE PLAYER ASSY
86260-30250	GS130..WG..SDX;GS130,131,LS130..SAL,SALEX,SSL FRONT	09/1987 - 09/1988	1
86260-30230	MS130..ATM..SDX;GS130,LS130..SDX,SPE FRONT	09/1988 - 08/1989	1
Common parts
93312-15010

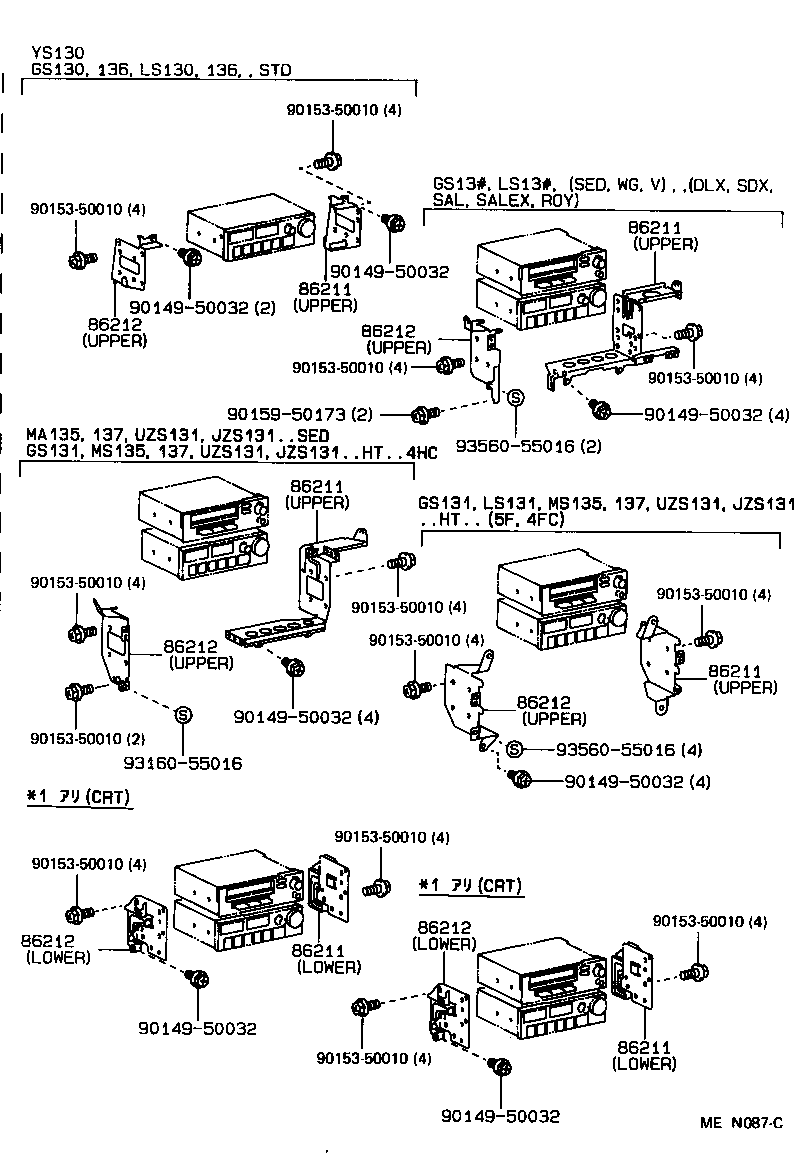

ILLUST NO. 4 OF 5(8709- )

Click highlighted areas on diagram

RADIO SETTING PARTS

Part #	Description	Period	Qty
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86211 - BRACKET, RADIO, NO.1
86211-30080	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
86212 - BRACKET, RADIO, NO.2
86212-30070	GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,JZS130,LS13#,MS130..(SED,V,WG)..(DLX,ROY,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TD,TDE,TWC,TWLPG) UPPER	09/1987 - 10/1991	1
Common parts
90149-50032
90153-50010
90159-50173
93160-55016
93560-55016

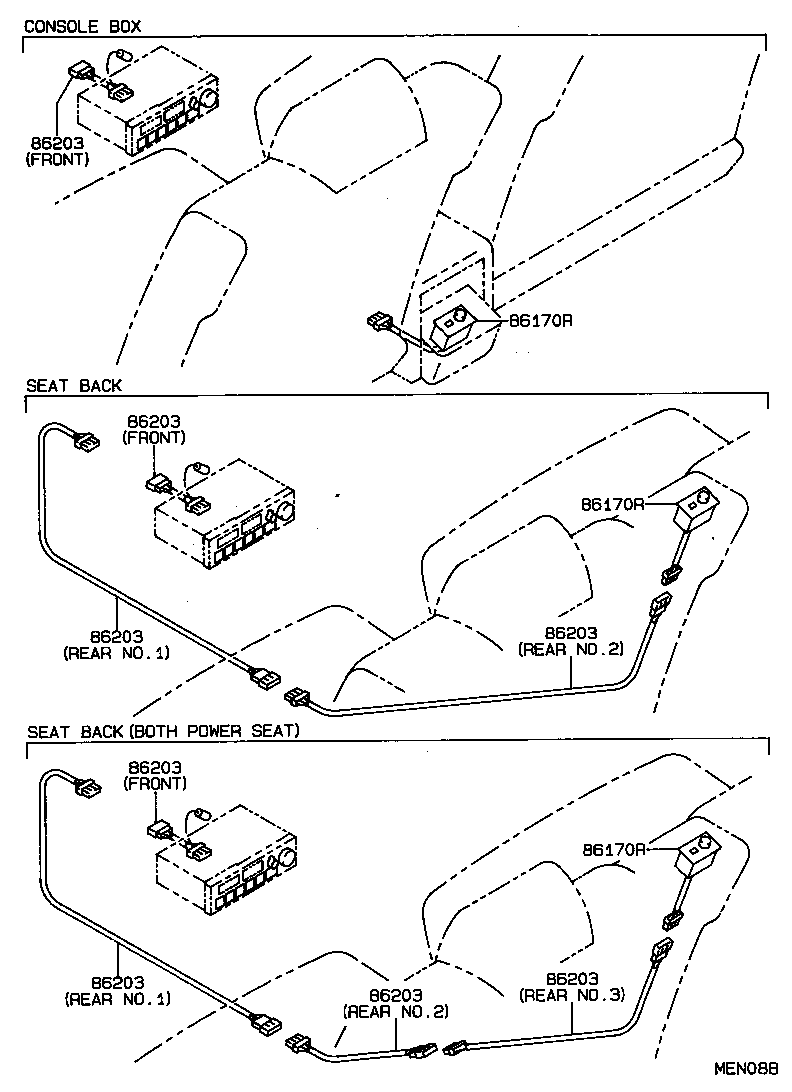

ILLUST NO. 5 OF 5(8709- )ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

Click highlighted areas on diagram

REMOTE WIRE & SWITCH

Part #	Description	Period	Qty
86170R - SWITCH & VOLUME ASSY, RR
86170-30210	GS130,LS130,MS130..SDX	09/1987 - 08/1989	1
86170R - SWITCH & VOLUME ASSY, RR
86170-30210	GS130,LS130,MS130..SDX	09/1987 - 08/1989	1
86170R - SWITCH & VOLUME ASSY, RR
86170-30210	GS130,LS130,MS130..SDX	09/1987 - 08/1989	1

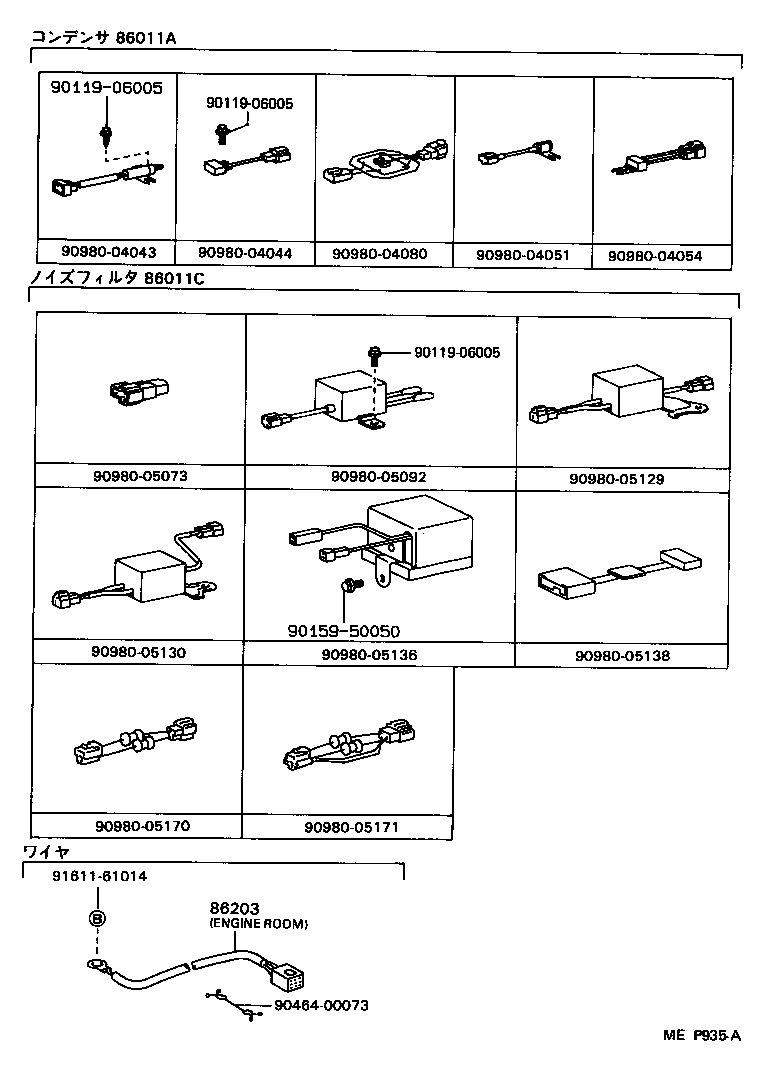

ILLUST NO. 3 OF 5(8709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04054	GS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	01/1988 - 02/1989	1
90980-04054	GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	09/1987 - 01/1988	1
90980-04078	GS13#,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	02/1989 - 06/1989	1
90980-04051	LS13#;GS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL	09/1987 - 01/1988	1
86011C - FILTER, NOISE
90980-05073	GS13#,JZS13#,LS13#,MS13#,UZS131,YS130	09/1987 - 10/1991	1
90980-05092	GS130,136,LS13#..(V,WG)..(DLX,ROY,SALEX,SDX)	09/1987 - 08/1989	1
Common parts
90119-06005
90159-50050
90464-00073
90980-04043
90980-04044
90980-04051
90980-04054
90980-04080
90980-05073
90980-05092
90980-05129
90980-05130
90980-05136
90980-05138
90980-05170
90980-05171
91611-61014
