GS130G-AWPFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)V,WG

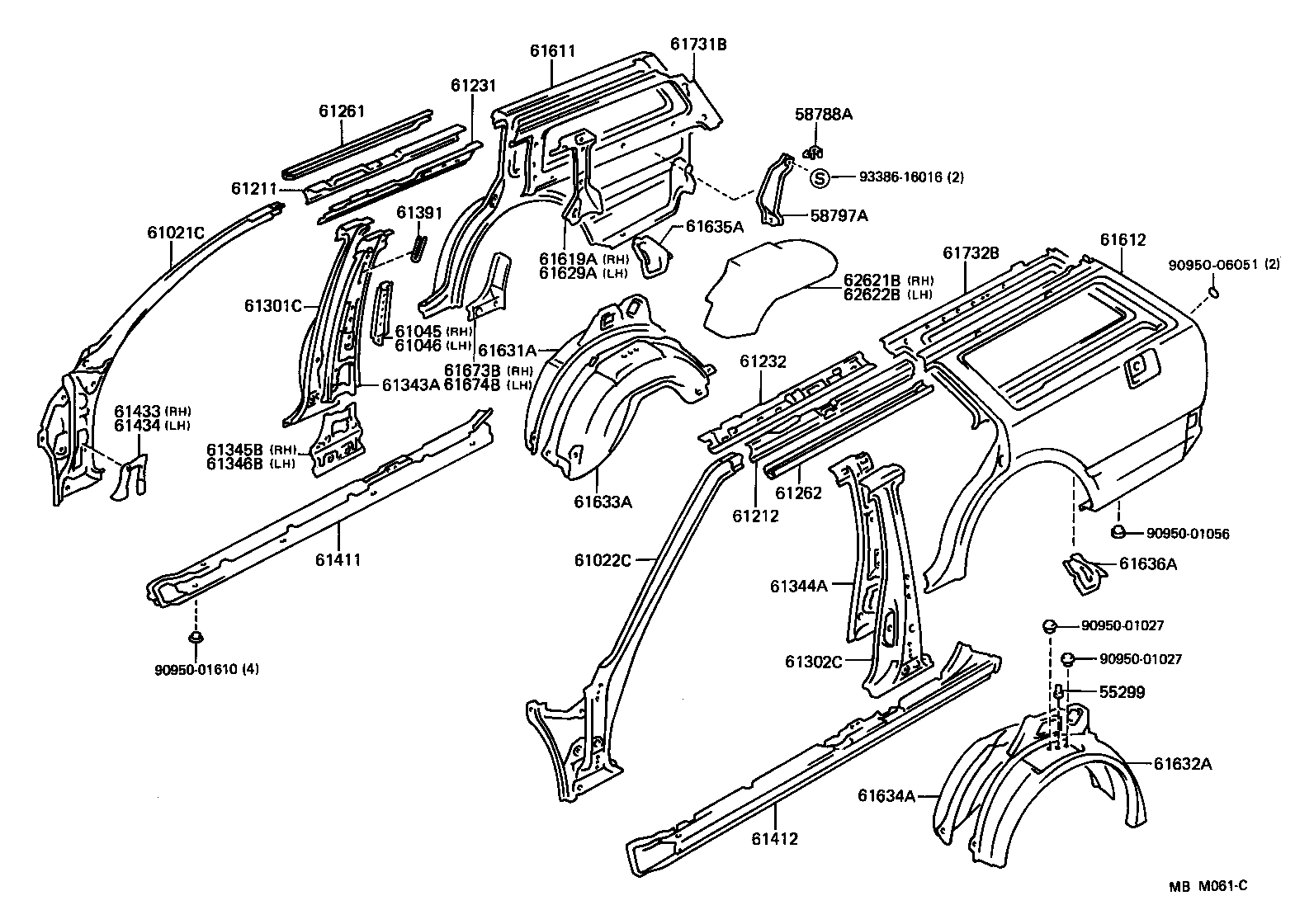

Click highlighted areas on diagram

diagram 55299 58788A 58797A 61021C 61022C 61045 61046 61211 61212 61231 61232 61261 61262 61301C 61302C 61343A 61344A 61345B 61346B 61391 61411 61412 61433 61434 61611 61612 61619A 61629A 61631A 61632A 61633A 61634A 61635A 61636A 61673B 61674B 61731B 61732B 62621B 62622B 9095001027 9095001027 9095001056 9095001610 9095006051 9338616016
Part # Description Qty Price
55299 - CAP, TEE NUT(FOR 6MM)
55299-30010

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 4
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-30160

GS13#,LS13#,MS13#,YS130..SED,V,WG

 1
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-30160

GS13#,LS13#,MS13#,YS130..SED,V,WG

 1
61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH
61045-30060

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH
61046-30060

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-91704

GS130,136,JZS130,LS130,136..V,WG

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-91704

GS130,136,JZS130,LS130,136..V,WG

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-91705

GS130,136,JZS130,LS130,136..V,WG

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-91705

GS130,136,JZS130,LS130,136..V,WG

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-91702

GS130,136,JZS130,LS130,136..V,WG

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-91702

GS130,136,JZS130,LS130,136..V,WG

 1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-30120

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-30140

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-30100

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-30100

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-30080

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 1
61391 - SPACER, CENTER BODY PILLAR, INNER
61391-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
61411 - PANEL, ROCKER, OUTER RH
61401-30210

GS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

 1
61412 - PANEL, ROCKER, OUTER LH
61402-30210

GS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

 1
61433 - PANEL, ROCKER, INNER RH
61433-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
61434 - PANEL, ROCKER, INNER LH
61434-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
61611 - PANEL, QUARTER, RH
61601-91713

GS130,LS130..WG

 1
61612 - PANEL, QUARTER, LH
61602-91716

GS130,LS130..WG

 1
61619A - REINFORCEMENT, QUARTER PANEL
61619-91790

GS130,136,JZS130,LS130,136..V,WG

 1
61629A - REINFORCEMENT, QUARTER PANEL, LH
61629-91790

GS130,136,JZS130,LS130,136..V,WG

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-91790

GS130,136,JZS130,LS130,136..V,WG

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-91790

GS130,136,JZS130,LS130,136..V,WG

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61633-91791

GS130..WG..SDX

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61634-91791

GS130..WG..SDX

 1
61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61673-91701

GS130,136,JZS130,LS130,136..V,WG

 1
61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61674-91701

GS130,136,JZS130,LS130,136..V,WG

 1
61731B - PANEL, ROOF SIDE, INNER RH
61705-91717

GS130,JZS130,LS130..WG

 1
61732B - PANEL, ROOF SIDE, INNER LH
61706-91722

GS130,LS130..WG..(SALEX,SDX)

 1
Common parts
90950-01027
90950-01056
90950-01610
90950-06051
93386-16016

(8709- )

Click highlighted areas on diagram

diagram 61815B 61815B 61816B 61816B 61817B 61818B 61824 61825A 61826A 62554B 62554B 62554B 62939A 9354014012 9354014012
Part # Description Qty Price
Common parts
93540-14012
