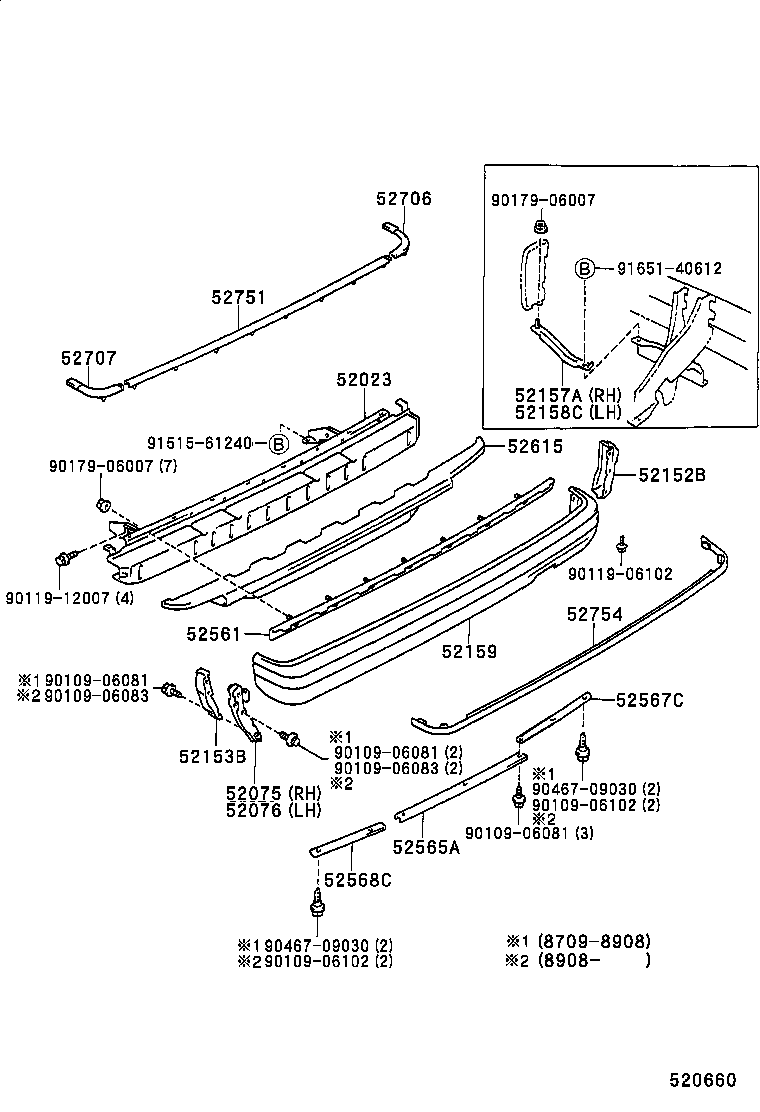

GS130G-AWPFE (1987)
Toyota Crown
(8709- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-91702 |
GS130,LS130..WG |
1 | ||
| 52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52075-91702 |
GS130,LS130..WG |
1 | ||
| 52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52076-91702 |
GS130,LS130..WG |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-9170402 |
GS130,LS130..WG DARK RED MICA,3H3 |
1 | ||
| 52152-9170433 |
GS130,LS130..WG GRAY MICA M,170 |
1 | ||
| 52152-9170403 |
GS130,LS130..WG SUPER SILVER 2. M,166 |
1 | ||
| 52152-9170404 |
GS130,LS130..WG DARK BLUE. M,869 |
1 | ||
| 52152-9170408 |
GS130,LS130..WG SUPER WHITE 2,040 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-9170403 |
GS130,LS130..WG SUPER SILVER 2. M,166 |
1 | ||
| 52153-9170408 |
GS130,LS130..WG SUPER WHITE 2,040 |
1 | ||
| 52153-9170402 |
GS130,LS130..WG DARK RED MICA,3H3 |
1 | ||
| 52153-9170404 |
GS130,LS130..WG DARK BLUE. M,869 |
1 | ||
| 52153-9170433 |
GS130,LS130..WG GRAY MICA M,170 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-3009003 |
GS130,LS130..WG SUPER SILVER 2. M,166 |
1 | ||
| 52159-3009004 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK BLUE. M,869 |
1 | ||
| 52159-3009002 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL DARK RED MICA,3H3 |
1 | ||
| 52159-3009008 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL SUPER WHITE 2,040 |
1 | ||
| 52159-3009013 |
GS130,131,LS130,MS130..ROY,SAL,SALEX,SDX,SPE,SSL GRAY MICA. M,170 |
1 | ||
| 52159-3009003 |
GS130..WG..SDX;GS130,131,LS130..(SED,WG)..(ROY,SAL,SALEX) SUPER SILVER 2. M,166 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-30030 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-30020 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 52567C - RETAINER, REAR BUMPER LOWER SIDE, RH | ||||
| 52567-30020 |
GS130,LS130..WG |
1 | ||
| 52568C - RETAINER, REAR BUMPER LOWER SIDE, LH | ||||
| 52568-30040 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-30040 |
YS130..DLX..LPEFI;GS130,131,LS130,131,MS130..(ROY,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52706-91701 |
GS130,LS130..WG |
1 | ||
| 52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52707-91701 |
GS130,LS130..WG |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-30030 |
GS130,LS130..WG 上側 |
1 | ||
| 52754 - MOULDING, REAR BUMPER, NO.2 | ||||
| 52751-91702 |
GS130,LS130..WG LWR |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06083 | ||||
| 90109-06102 | ||||
| 90119-06102 | ||||
| 90119-12007 | ||||
| 90179-06007 | ||||
| 90467-09030 | ||||
| 91515-61240 | ||||
| 91651-40612 | ||||
