GS130G-AWPFE (1987)
Toyota Crown
(8709- )

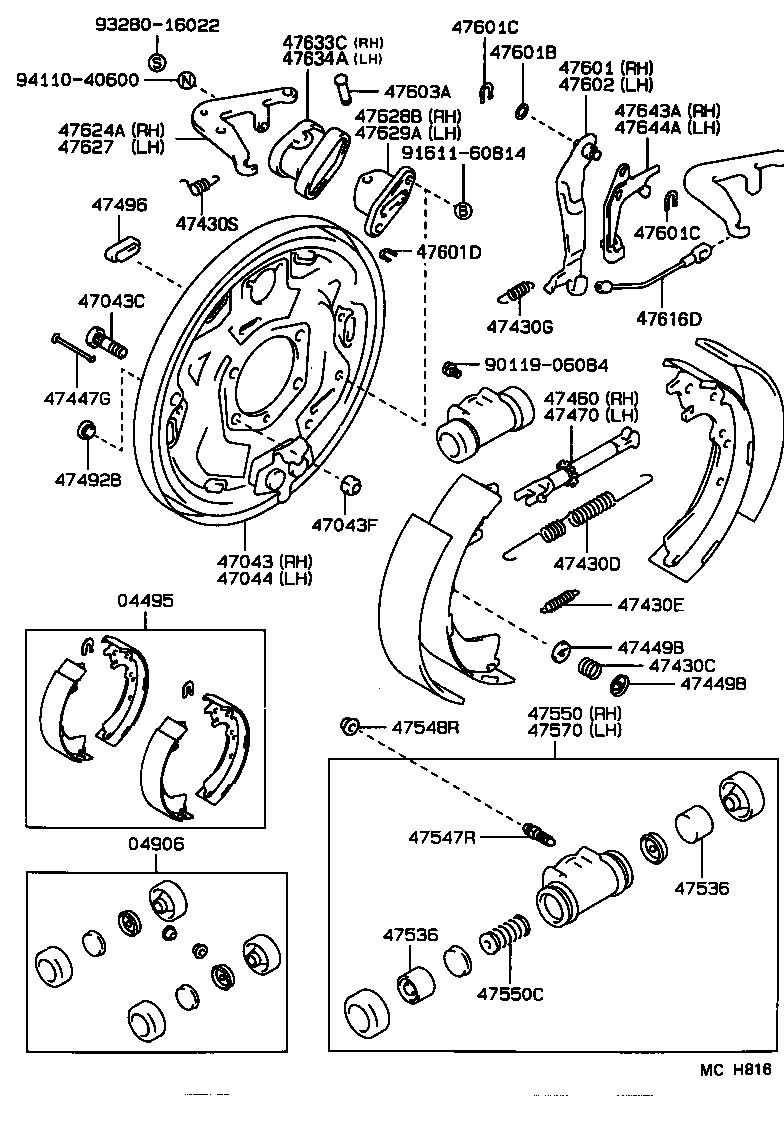

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-30050 |
YS130..4HC;YS130..4H..DLX;GS136,LS136,MS130;GS130,LS130..WG..SALEX;GS130,LS130..DLX,ROY,SDX,SPE,SSL |
1 | ||
| 04497-30050 |
YS130..4HC;YS130..4H..DLX;GS136,LS136,MS130;GS130,LS130..WG..SALEX;GS130,LS130..DLX,ROY,SDX,SPE,SSL |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30100 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-30110 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-30021 |
GS130,LS130..WG..SALEX;GS130,136,LS13#,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD *10−1.25PX45−20 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90179-10030 |
GS130,LS130..WG..SALEX;GS130,136,LS13#,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-30120 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23003 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12480 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90506-18004 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-30040 |
YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..DLX,ROY,SDX,SPE,SSL |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47062-30040 |
YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..DLX,ROY,SDX,SPE,SSL |
1 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-30130 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-30130 |
YS130..4HC..LPG;GS130..STD..HTWC;YS130..4H..DLX..LPG;GS130,LS130..WG..SALEX;GS136,JZS130,LS136,MS130;GS130,LS130..(DLX,ROY,SDX,SPE,SSL)..(DSL,EFI,HTWC,SPC,TD,TDE) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-09001 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.2 |
1 | ||
| 90564-09003 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.5 |
1 | ||
| 90564-09186 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.9 |
1 | ||
| 90564-09002 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.4 |
1 | ||
| 90564-09185 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.6 |
1 | ||
| 90564-09184 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=0.3 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=1.6 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD 厚さ=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90213-06013 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08068 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47616D - WIRE, PARKING BRAKE | ||||
| 47616-30040 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
2 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-30080 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47627 - CRANK, PARKING BRAKE BELL, LH | ||||
| 47627-30030 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47628B - BRACKET, REAR BRAKE BELLCRANK, RH | ||||
| 47628-30070 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47629A - BRACKET, REAR BRAKE BELLCRANK, LH | ||||
| 47629-30060 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-30030 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47634A - BOOT, REAR BRAKE BELLCRANK, LH | ||||
| 47634-30020 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-30010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-30010 |
GS130,LS130..WG..SALEX;GS130,136,JZS130,LS130,136,MS130,YS130..DLX,ROY,SDX,SPE,SSL,STD |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 91611-60814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
