GS130G-AWPFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

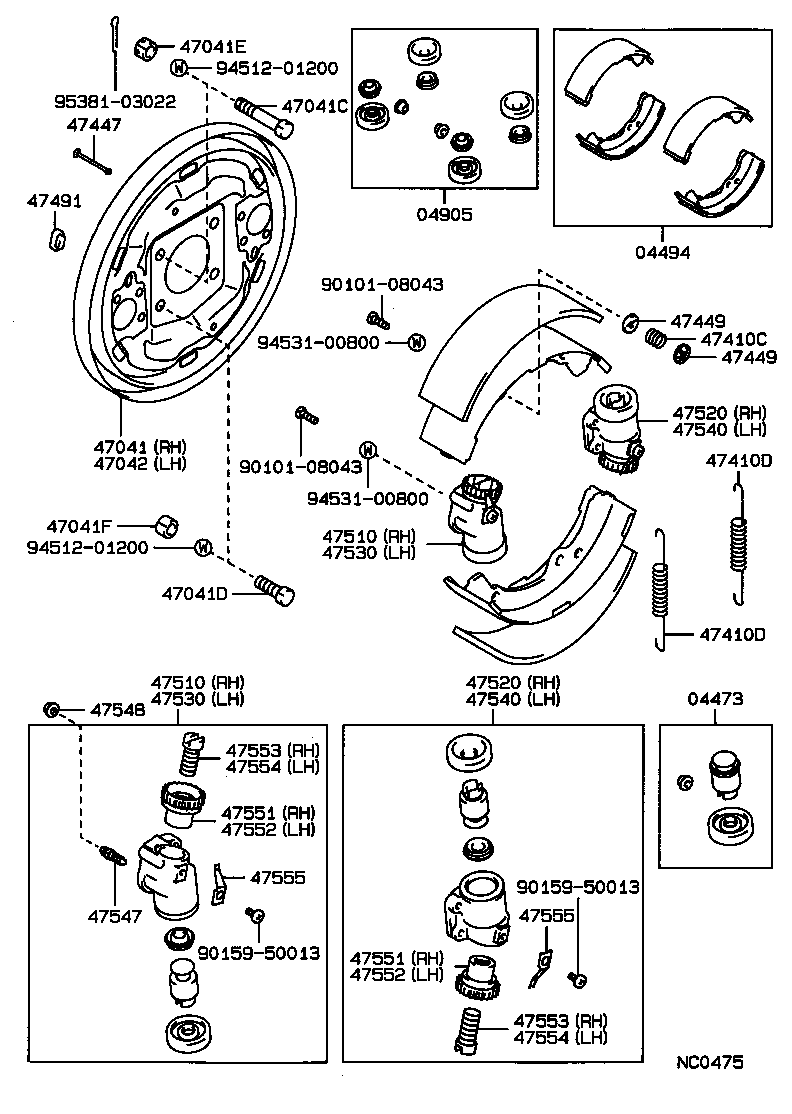

Click highlighted areas on diagram

diagram 04473 04494 04905 47041 47041C 47041D 47041E 47041F 47042 47410C 47410D 47410D 47447 47449 47449 47491 47510 47510 47520 47520 47530 47530 47540 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 9010108043 9010108043 9015950013 9015950013 9451201200 9451201200 9453100800 9453100800 9538103022
Part # Description Qty Price
47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
90102-12010

GS13#,LS13#,MS13#,UZS131,YS130

*12−1.25PX54−24,ﾘﾔ

 2
90102-12009

GS13#,LS13#,MS13#,UZS131,YS130

*12−1.25PX61.5−24,ﾌﾛﾝﾄ

 2
Common parts
90101-08043
90159-50013
94512-01200
94531-00800
95381-03022
