GS130G-AWPFE (1987)
Toyota Crown
(8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

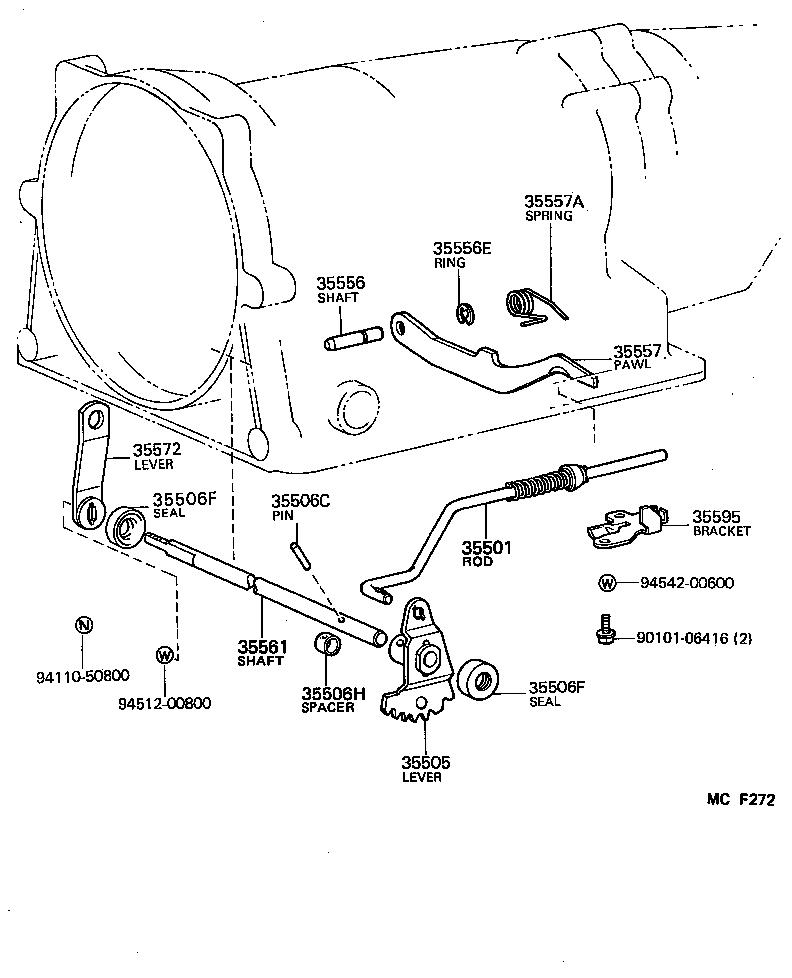

| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-22020 |
GS130,131,LS13#..ATM..(DSL,EFI,HTWC,TDE,TWC) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22040 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
GS130,131,LS13#..ATM..(DSL,EFI,HTWC,TDE,TWC) |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
GS130,131,LS13#..ATM..(DSL,EFI,HTWC,TDE,TWC) |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-40010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-22040 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||
(8709- )GS13#..EFI,HTWC,SPC,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

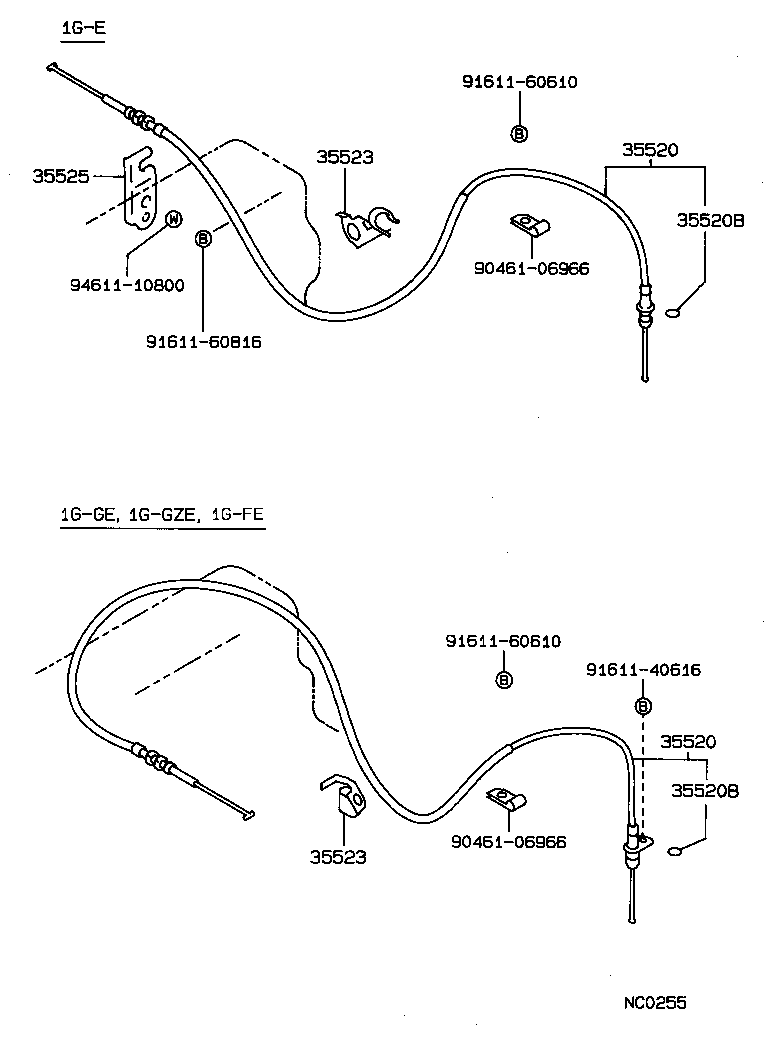

| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24010 |
GS130,131..ATM..EFI |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24010 |
GS130,131..ATM..EFI |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
GS131..ATM..(EFI,SPC);GS130,LS13#,MS13#..ATM |
1 | ||
| 90301-09004 |
GS130,131,LS13#,MS13#..ATM |
1 | ||
| 90301-09012 |
GS130,131,LS13#,MS130,135,YS130..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
GS131..ATM..(EFI,SPC);GS130,LS13#,MS13#..ATM |
1 | ||
| 90301-09004 |
GS130,131,LS13#,MS13#..ATM |
1 | ||
| 90301-09012 |
GS130,131,LS13#,MS130,135,YS130..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-22030 |
GS130,131..ATM..EFI |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-22030 |
GS130,131..ATM..EFI |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-22090 |
GS130,131..ATM..EFI |
1 | ||
| Common parts | ||||
| 90461-06966 | ||||
| 91611-40616 | ||||
| 91611-60610 | ||||
| 91611-60816 | ||||
| 94611-10800 | ||||
