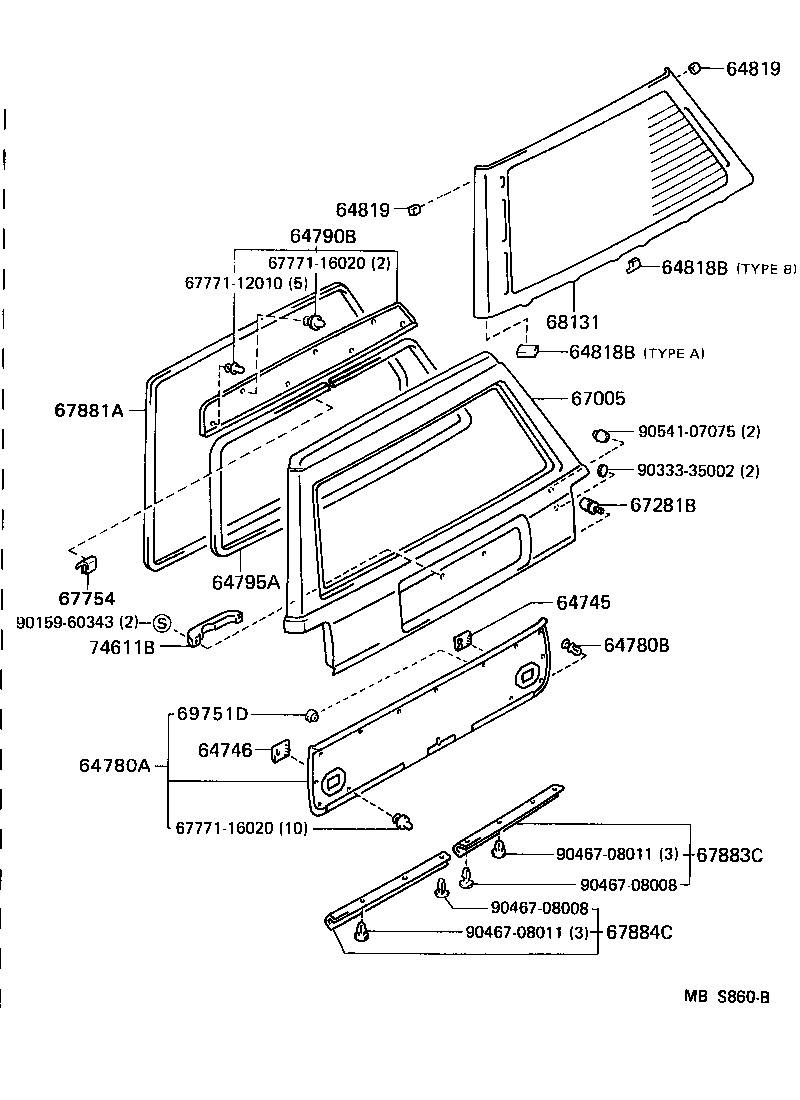

GS130G-AWMFK (1988)
Toyota Crown
(8709-8908)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62357C - COVER, BACK WINDOW INSIDE TRIM | ||||
| 62357-9170314 |
GS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 62357-9170312 |
GS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-9170102 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64745-9170104 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64745-9170102 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64745-9170104 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-9172004 |
GS130..WG..SDX BLUE,TRIM8# |
1 | ||
| 64780-9172002 |
GS130..WG..SDX MAROON,TRIM3# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-0811432 |
GS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX) MAROON,TRIM3# |
6 | ||
| 90467-0811454 |
GS130,136,JZS130,LS130,136..V,WG BLUE,TRIM8# |
6 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-9170306 |
GS130..WG..SDX SABLE,TRIM3# |
1 | ||
| 64790-9170304 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64795A - TRIM, BACK WINDOW OPENING | ||||
| 64795-9170102 |
GS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64795-9170402 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64795-9170404 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64795-9170114 |
GS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-91702 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
1 | ||
| 64818-91702 |
GS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 64818-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-91702 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
1 | ||
| 64818-91702 |
GS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 64818-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-91702 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
1 | ||
| 64818-91702 |
GS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 64818-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-91784 |
GS130..WG..SDX |
1 | ||
| 67005-91E01 |
GS130,JZS130,LS130..WG |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-91605 |
GS130,136,JZS130,LS130,136..V,WG |
2 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-91701 |
GS130,136,LS136..(V,WG)..(DLX,SDX,STD) |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-91255 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 67883C - WEATHERSTRIP, BACK DOOR, LOWER RH | ||||
| 67883-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 67884C - WEATHERSTRIP, BACK DOOR, LOWER LH | ||||
| 67884-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-91716 |
GS130,LS130..WG *EHTT,厚さ=4.0 |
1 | ||
| 68105-91723 |
GS130,JZS130,LS130..WG *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR) | ||||
| 69751-9170114 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 69751-9170112 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-9170112 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 74611-9170114 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 67771-16020 | ||||
| 90159-40001 | ||||
| 90159-60343 | ||||
| 90189-04007 | ||||
| 90333-35002 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90541-07075 | ||||
(8908- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-9170102 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64745-9170104 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64745-9170102 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64745-9170104 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-9172004 |
GS130..WG..SDX BLUE,TRIM8# |
1 | ||
| 64780-9172002 |
GS130..WG..SDX MAROON,TRIM3# |
1 | ||
| 64780B - CLIP(FOR BACK DOOR TRIM PANEL) | ||||
| 90467-0811432 |
GS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX) MAROON,TRIM3# |
6 | ||
| 90467-0811454 |
GS130,136,JZS130,LS130,136..V,WG BLUE,TRIM8# |
6 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-9170306 |
GS130..WG..SDX SABLE,TRIM3# |
1 | ||
| 64790-9170304 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64795A - TRIM, BACK WINDOW OPENING | ||||
| 64795-9170102 |
GS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64795-9170402 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 64795-9170404 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64795-9170114 |
GS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-91702 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
1 | ||
| 64818-91702 |
GS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 64818-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-91702 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
1 | ||
| 64818-91702 |
GS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 64818-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-91701 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ A |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-91784 |
GS130..WG..SDX |
1 | ||
| 67005-91E01 |
GS130,JZS130,LS130..WG |
1 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-91605 |
GS130,136,JZS130,LS130,136..V,WG |
2 | ||
| 67754 - MOULDING, BACK DOOR TRIM | ||||
| 67754-91701 |
GS130,JZS130,LS130..WG |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-91255 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 67883C - WEATHERSTRIP, BACK DOOR, LOWER RH | ||||
| 67883-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 67884C - WEATHERSTRIP, BACK DOOR, LOWER LH | ||||
| 67884-91701 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-91716 |
GS130,LS130..WG *EHTT,厚さ=4.0 |
1 | ||
| 68105-91723 |
GS130,JZS130,LS130..WG *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR) | ||||
| 69751-9170114 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| 69751-9170112 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-9170112 |
GS130,JZS130,LS130..WG MAROON,TRIM3# |
1 | ||
| 74611-9170114 |
GS130,JZS130,LS130..WG BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 67771-16020 | ||||
| 90159-60343 | ||||
| 90333-35002 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90541-07075 | ||||
