GS130G-AWMFE (1987)
Toyota Crown
(8709- )EFI

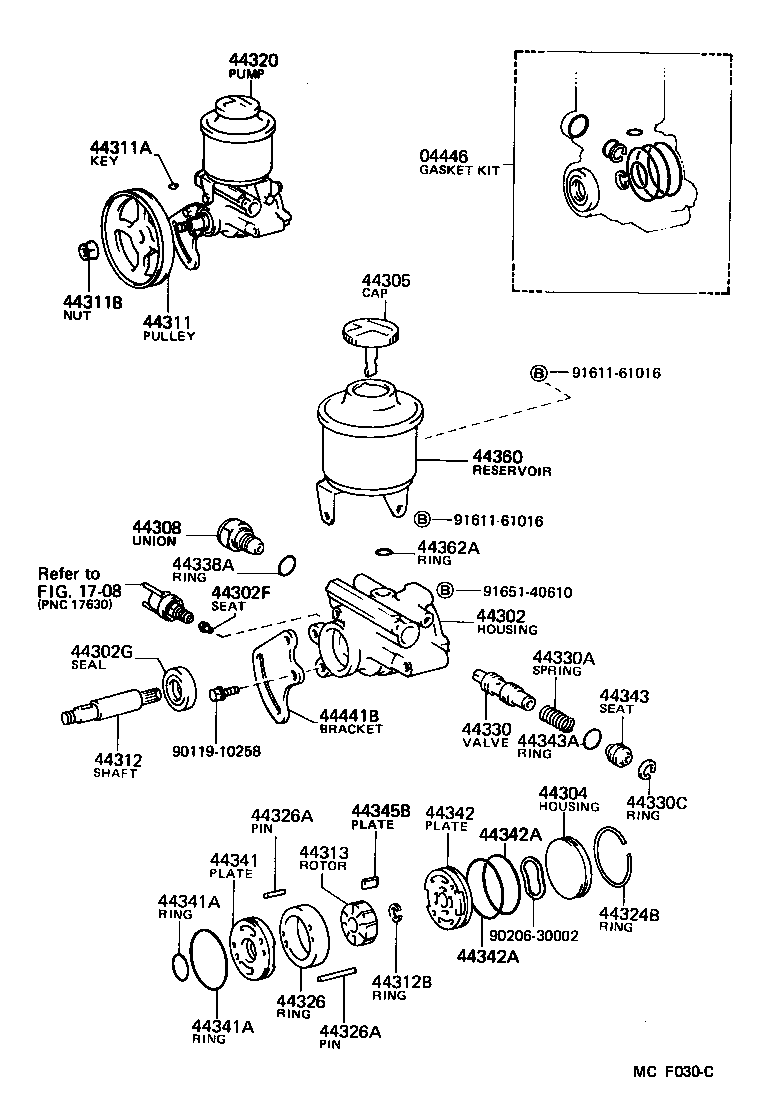

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30080 |
GS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30040 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
MS130..ATM;GS136,YS130;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-12031 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12010 |
GS136,LS13#,YS130;GS130,131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-30080 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30080 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12055 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GS136;GS130,131,MS135,137..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ無し |
1 | ||
| 44313-12050 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 4 |
1 | ||
| 44313-12040 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 3 |
1 | ||
| 44313-22060 |
GS136;GS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 2 |
1 | ||
| 44313-12020 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 1 |
1 | ||
| 44313-12030 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 2 |
1 | ||
| 44313-22070 |
GS136;GS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
GS136;GS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
GS136;GS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
GS136;GS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ無し |
1 | ||
| 44313-22050 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ 3 |
1 | ||
| 44313-22040 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ無し |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30301 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44320-30300 |
GS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30120 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) ﾏｰｸ 2 |
1 | ||
| 44325-30140 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) ﾏｰｸ 4 |
1 | ||
| 44325-30130 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) ﾏｰｸ 3 |
1 | ||
| 44325-30100 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) ﾏｰｸ無し |
1 | ||
| 44325-30110 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) ﾏｰｸ 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GS131,136,UZS131..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30100 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ A |
1 | ||
| 44330-30140 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ E |
1 | ||
| 44330-30120 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ C |
1 | ||
| 44330-30110 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ B |
1 | ||
| 44330-30130 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ D |
1 | ||
| 44330-30150 |
GS136,LS13#,YS130;GS130,131,MS130,135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL ﾏｰｸ F |
1 | ||
| 44330-30100 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ A |
1 | ||
| 44330-30150 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ F |
1 | ||
| 44330-30140 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ E |
1 | ||
| 44330-30110 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ B |
1 | ||
| 44330-30120 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ C |
1 | ||
| 44330-30130 |
GS136,LS13#,MS135,YS130;GS130,131,MS130..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG,SPC) ﾏｰｸ D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GS136,LS13#,YS130;GS130,131,MS130..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
GS131,136,UZS131..EFI,HTWC;GS130,JZS13#..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,TWC) 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12030 |
GS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI 内側 |
1 | ||
| 90301-52001 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI 内側 |
1 | ||
| 90301-52001 |
GS131,136..EFI,HTWC;GS130..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-12021 |
GS136;GS130,131..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
GS136,LS13#,YS130;GS130,131,MS130..DLX,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
GS136,LS13#,YS130;GS130,131,MS130..(DLX,SAL,SALEX,SDX,SPE,SSL)..(EFI,HTWC,LPG) |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 長さ=14.997 |
10 | ||
| 44345-12020 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 長さ=14.995 |
10 | ||
| 44345-12050 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 長さ=14.989 |
10 | ||
| 44345-12040 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 長さ=14.991 |
10 | ||
| 44345-12030 |
GS136,LS130,136,YS130;GS130,131,LS131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL 長さ=14.993 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-30220 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
UZS131;GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-30061 |
GS131,136..EFI;GS130..(DLX,SAL,SALEX,SDX,SPE)..EFI |
1 | ||
| Common parts | ||||
| 90119-10258 | ||||
| 90206-30002 | ||||
| 91611-61016 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 1708 | ||||
