GS130G-AWMFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)1GE..GS130,131

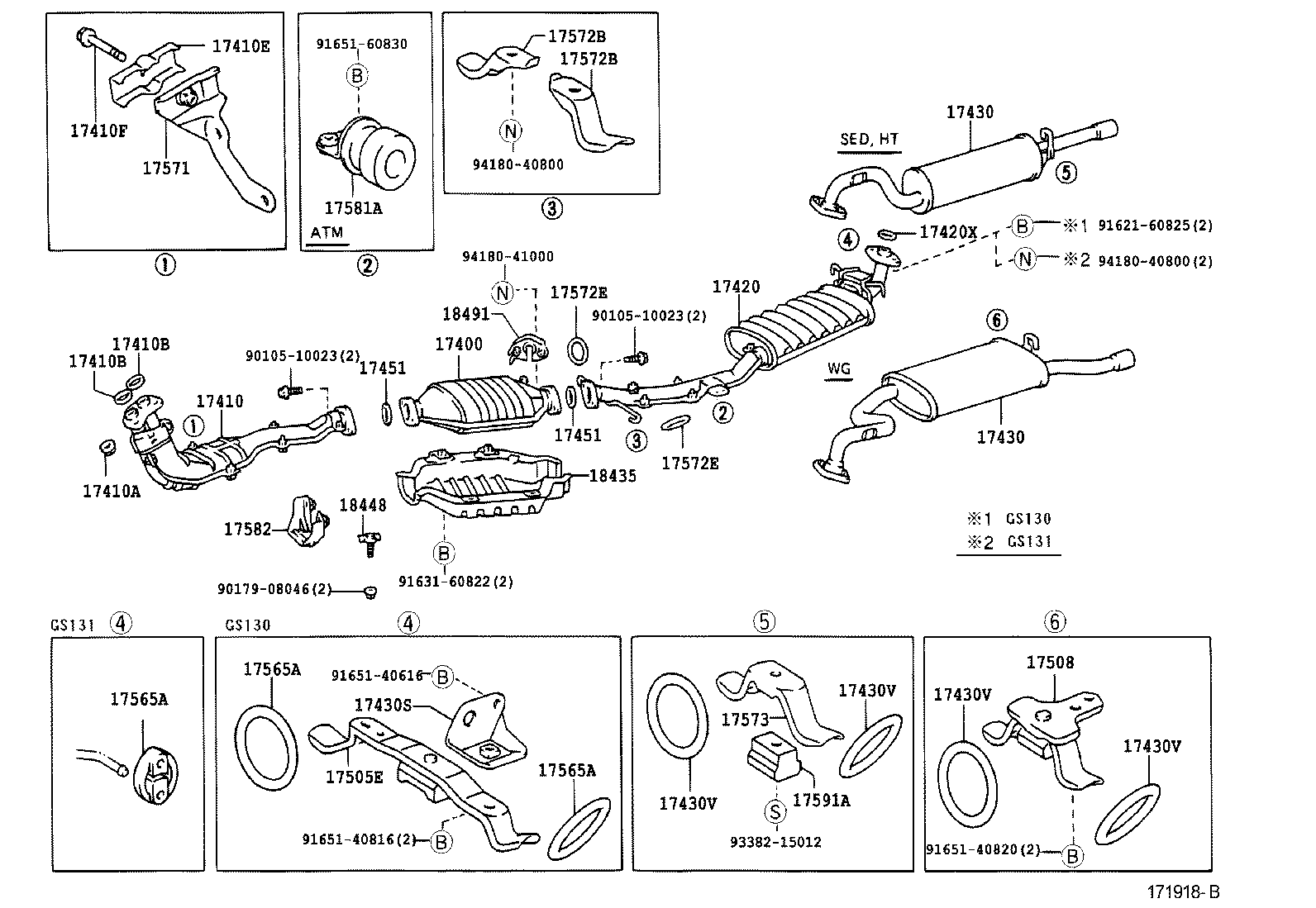

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17410F 17420 17420X 17430 17430 17430S 17430V 17430V 17430V 17430V 17451 17451 17505E 17508 17565A 17565A 17565A 17571 17572B 17572B 17572E 17572E 17573 17581A 17582 17591A 18435 18448 18491 9010510023 9010510023 9017908046 9162160825 9163160822 9165140616 9165140816 9165140820 9165160830 9338215012 9418040800 9418040800 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-70060

1GE,1GGE..GS130,131

 1
18450-70060

1GE..GS130,131

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70081

1GE,1GGE..GS130,131

 1
17410-70081

1GE..GS130,131

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GE,1GFE,1GG#,1JZGE,2L,2LT#,7MGE,MP..GS13#,JZS13#,LS13#,MS13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1GE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,MP..GS130,131,JZS13#,MS13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1GE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,MP..GS130,131,JZS13#,MS13#

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1GE,1GFE,1GG#,1JZGE,7MGE,MP..GS13#,JZS13#,MS13#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10019

1GE,1GFE,1GG#,7MGE,MP..GS13#,MS13#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-41170

1GE,1GGP..GS130

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

1GE,1GGE..GS131;1GE,1GGZE,MP,3YP..GS130,MS130,YS130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70180

1GE..GS130..WG

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70180

1GE..GS130..WG

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-41020

1GE..GS13#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

1GE,1GGP,1GGZE,1JZGE,2L,2LT#,MP..GS130,JZS130,LS130,136,MS130

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

1GE,1GGE..GS130,131

ﾘﾔ

 1
90917-06023

1GE,1GGE..GS130,131

ﾌﾛﾝﾄ

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

1GE,1GGE..GS130,131

ﾘﾔ

 1
90917-06023

1GE,1GGE..GS130,131

ﾌﾛﾝﾄ

 1
17505E - SUPPORT SUB-ASSY, CATALYTIC CONVERTER
17505-45040

1GE,1GFE,1GGP,1GGZE,1JZGE,MP,3YP#..GS130,JZS130,MS130,YS130

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-54020

1GE,1GFE,1GGZE,1JZGE,2LTHE..GS130,JZS130,LS130..WG

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-45010

1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-45010

1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-45010

1GE,1GGP,1GGZE,1JZGE,2LT#,MP..GS130,136,JZS130,LS130,MS130

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-70030

1GE,1GFE,1GG#..GS13#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GE,1GFE,1GG#,1JZGE,2LT#,7MGE,MP,1UZFE..GS13#,JZS13#,LS130,131,MS13#,UZS131

 2
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-41030

1GE,1GGE..GS130,131

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-70020

1GE,1GGE..GS130,131

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1GFE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,1UZFE..GS130,131,JZS13#,MS135,137,UZS131

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

1GFE..GS136;1GE,1GFE,1GG#,1JZGE,7MGE,1UZFE..GS130,131,JZS13#,MS135,137,UZS131

 1
Common parts
90105-10023
90179-08046
91621-60825
91631-60822
91651-40616
91651-40816
91651-40820
91651-60830
93382-15012
94180-40800
94180-41000
