GS130G-AWJFK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )V,WG..DLX,SDX,STD

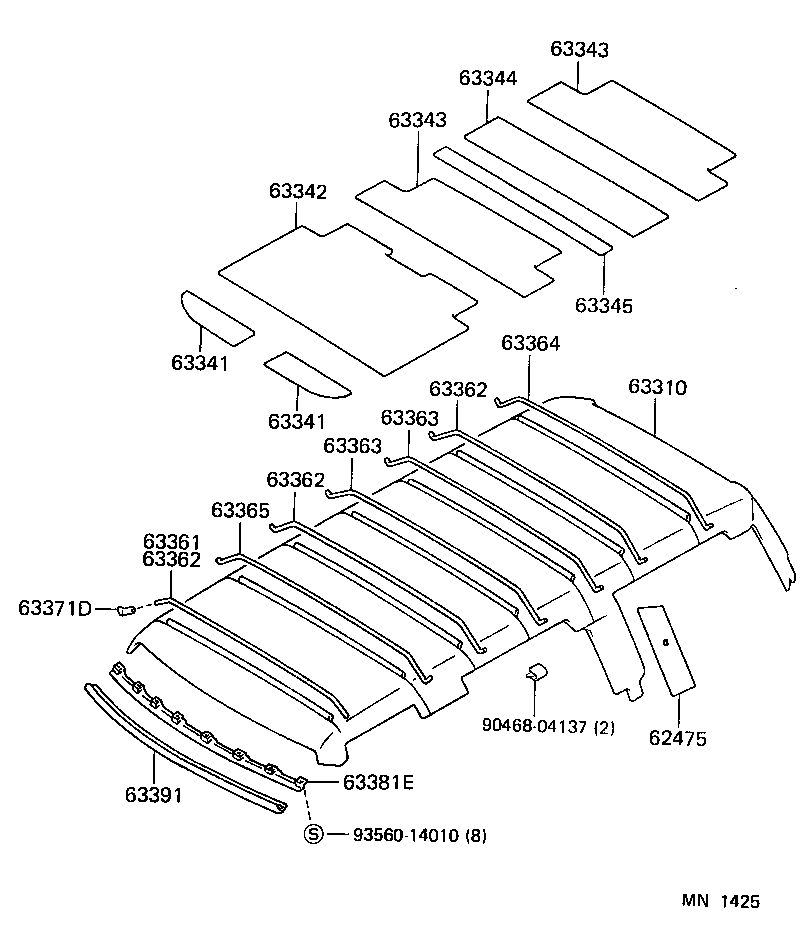

Click highlighted areas on diagram

diagram 62475 63310 63341 63341 63342 63343 63343 63344 63345 63361 63362 63362 63362 63363 63363 63364 63365 63371D 63381E 63391 9046804137 9356014010
Part # Description Qty Price
62475 - PAD, ROOF SIDE INNER GARNISH
62475-91703

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63310 - HEADLINING ASSY, ROOF
63310-31020E0

GS130..WG..SDX

QUARTZ,TRIM4#

 1
63310-31020J0

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

DK.BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-91706

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-91706

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-91705

GS130,136,LS136..V,WG

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-91704

GS130,136,JZS130,LS130,136..V,WG

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-91704

GS130,136,JZS130,LS130,136..V,WG

 2
63344 - PAD, ROOF SILENCER, NO.4
63344-91702

GS130,136,JZS130,LS130,136..V,WG

 1
63345 - PAD, ROOF SILENCER, NO.5
63345-91703

GS130,136,JZS130,LS130,136..V,WG

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-30160

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

L=1041(YELLOW)

 1
63361-30170

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

L=1044(PINK)

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-91705

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63362-30170

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

L=1047(ORANGE)

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-91705

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63362-30170

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

L=1047(ORANGE)

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-91705

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63362-30170

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

L=1047(ORANGE)

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-91707

GS130,136,JZS130,LS130,136..V,WG

L=1057(GREEN)

 1
63363-91705

GS130,136,JZS130,LS130,136..V,WG

L=1049(BLUE)

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-91707

GS130,136,JZS130,LS130,136..V,WG

L=1057(GREEN)

 1
63363-91705

GS130,136,JZS130,LS130,136..V,WG

L=1049(BLUE)

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-91701

GS130,136,JZS130,LS130,136..(V,WG)..(DLX,SALEX,SDX,STD)

L=1050(YELLOW)

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63365-91701

GS130,136,LS136..V,WG

 1
63371D - RETAINER, ROOF HEADLINING SUPPORT
63371-30060

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 2
63381E - RETAINER, ROOF HEADLINING TRIM, FRONT
63381-30070

GS130,136,LS136..(V,WG)..(DLX,SDX,STD)

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-30100J2

GS130..WG..SDX

DK.BLUE,TRIM8#

 1
63391-30100E2

GS130..WG

QUARTZ,TRIM4#

 1
Common parts
90468-04137
93560-14010
