GS130G-AWJFK (1991)
Toyota Crown

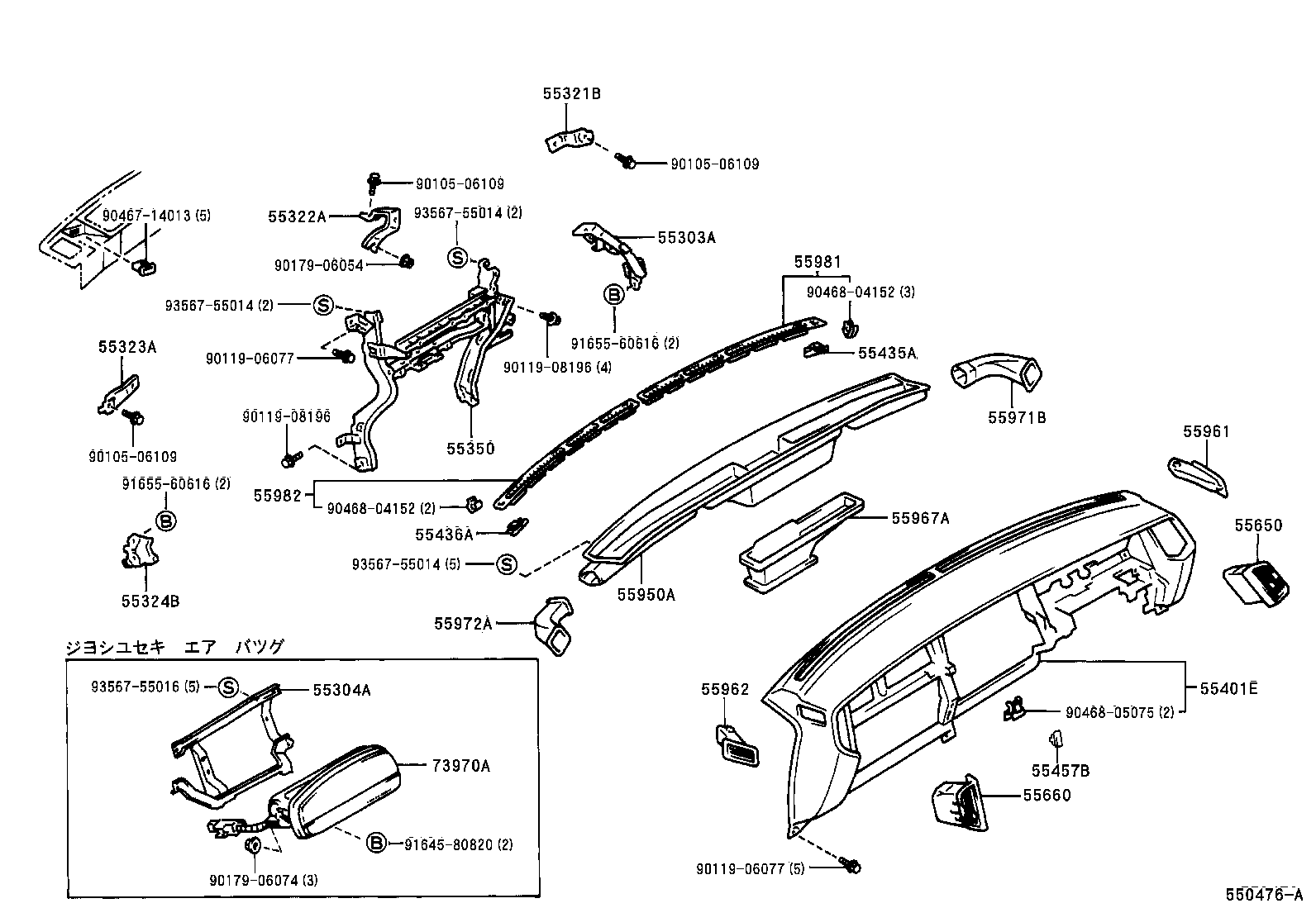

ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-30080 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# |
1 | ||
| 55303-30080 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55321-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55323-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55324-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-30030 |
GS130..DLX;GS136,LS136..DLX,SDX;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30301J0 |
GS13#,LS136 DK.BLUE,TRIM8# |
1 | ||
| 55401-30301E0 |
GS130,131..(DLX,SALEX,SDX)..HTWC QUARTZ,TRIM4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30130 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 55435-30130 |
GS130,136,LS130,136,YS130..DLX,DLXA,ROY,SDX,STD |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30070 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 55436-30070 |
GS130,136,LS130,136,YS130..DLX,DLXA,SDX,STD |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-30070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30170E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55650-30171J0 |
JZS130..SALEX;GS13#,JZS131,133,135,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55650-30171E0 |
JZS130..4HC;JZS130..SALEX;GS130,131,JZS131,133,135,LS13#..HTWC,TDE,TWC DK.ROSE,TRIM4# |
1 | ||
| 55650-30170J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55650-30170J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30261E0 |
JZS131,133;GS130,131,JZS130,135,LS13#..(DLX,ROYG,SALEX,SDX)..(HTWC,TDE,TWC) DK.ROSE,TRIM4# |
1 | ||
| 55660-30260J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55660-30260J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55660-30260E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55660-30261J0 |
JZS130..SALEX;GS13#,JZS131,133,135,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55951-30100 |
GS13#,JZS13#,LS13# |
1 | ||
| 55951-30100 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30060E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55961-30060J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55961-30060J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30040J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55962-30040E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55962-30040J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55967-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55971-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55972-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30020E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55981-30020J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55981-30020J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-30020J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55982-30020J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55982-30020E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-06077 | ||||
| 90119-08196 | ||||
| 90179-06054 | ||||
| 90179-06074 | ||||
| 90467-14013 | ||||
| 90468-04152 | ||||
| 90468-05075 | ||||
| 91645-80820 | ||||
| 91655-60616 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||

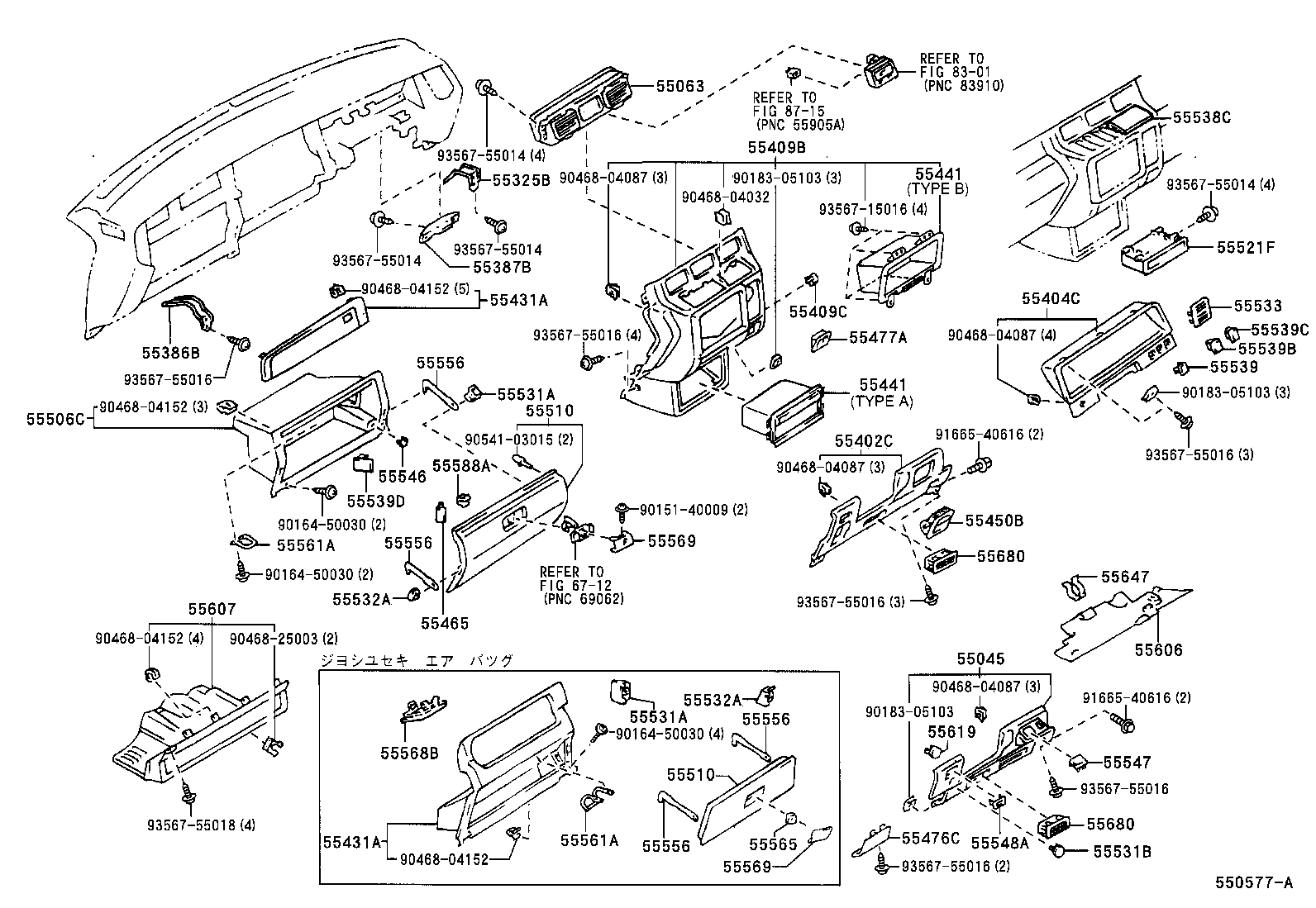

ILLUST NO. 1 OF 2(9110-9512)GS130,131..SALEX ; (9110- )GS130,136,LS130,136..DLX,SDX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30070E0 |
GS130..DLX;GS130..4H..SDX..HTWC QUARTZ,TRIM4# |
1 | ||
| 55045-30070J0 |
GS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG DK.BLUE,TRIM8# |
1 | ||
| 55045-30070J0 |
GS136,LS136;GS130..DLX,STD;GS130..4H..SDX DK.BLUE,TRIM8# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-30060 |
GS130,136,LS130,136..DLX,SDX |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30660 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 55409B - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER | ||||
| 55409-30090E0 |
GS131,LS130..SED;GS130..(DLX,SALEX,SDX)..HTWC QUARTZ,TRIM4# |
1 | ||
| 55409-30090J0 |
GS130..WG..SDX;GS13#,LS130,136..(SED,V)..(DLX,SALEX,SDX) DK.BLUE,TRIM8# |
1 | ||
| 55409C - PLUG, HOLE | ||||
| 90950-01581J0 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 90950-01581E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-30210 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55044-30210 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-30180E0 |
LS130..SDX;GS130,131..HTWC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,QUARTZ,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-30180E0 |
LS130..SDX;GS130,131..HTWC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,QUARTZ,TRIM4# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-30110J0 |
GS130,136..4H DK.BLUE,TRIM8# |
1 | ||
| 55476-30110E0 |
GS130..4H..(DLX,SDX)..HTWC QUARTZ,TRIM4# |
1 | ||
| 55476-30110J0 |
YS130;GS130,136..4H DK.BLUE,TRIM8# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-30050 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30090 |
GS13#,JZS13#,LS13# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30230E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55550-30230J0 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30230E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55550-30230J0 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX DK.BLUE,TRIM8# |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55521-16030 |
GS13#,JZS13#,LS13# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55531-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55531-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-30130J0 |
GS136,LS136;GS130..DLX,STD;GS130..4H..SDX DK.BLUE,TRIM8# |
1 | ||
| 55531-30130J0 |
GS130..DLX,STD;GS136,LS136,YS130;GS130..4H..SDX..HTWC DK.BLUE,TRIM8# |
1 | ||
| 55531-30130E0 |
GS130..DLX;GS130..4H..SDX..HTWC QUARTZ,TRIM4# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55532-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 55532-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-30100 |
LS130..SDX;GS13#,LS136..DLX,SALEX,SDX |
1 | ||
| 55538-30100 |
GS130..WG..SDX;GS13#,LS130,136..(SED,V)..(DLX,SALEX,SDX) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS130,131;JZS133,135..4FC;GS13#,LS13#..DLX,SALEX,SDX,STD |
1 | ||
| 55539-30090 |
JZS133,135..4FC;GS13#,JZS130,131,LS13# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30090 |
JZS131..SALEX;GS13#,JZS130,LS13#..DSL,HTWC,TDE,TDEC,TWC |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55546-30030 |
GS13#,JZS130,131,133,LS13# |
1 | ||
| 55546-30030 |
GS13#,JZS130,131,133,LS13#,YS130 |
1 | ||
| 55546 - COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE | ||||
| 55546-30030 |
GS130..STD;GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 55546-30030 |
GS130..ROY,STD;GS130,136,JZS130,LS130,136..V,WG;GS130,YS130..(DLX,DLXA,SDX,STD)..(LPEFI,TWLPG) |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 74267-24010J0 |
GS130..5F..STD;GS130..4H..(SDX,STD);GS136,LS136..DLX,STD DK.BLUE,TRIM8# |
1 | ||
| 74267-24010E0 |
GS130..4H..SDX..HTWC QUARTZ,TRIM4# |
1 | ||
| 74267-24010J0 |
YS130..DLXA,STD;GS136,LS136..DLX,STD;GS130..4FC..SDX..TWLPG;GS130..(4FC,5F)..(ROY,STD);GS130..(4H,4HC)..(SDX,STD) DK.BLUE,TRIM8# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30070E0 |
GS130..DLX;GS130..4H..SDX..HTWC QUARTZ,TRIM4# |
1 | ||
| 55548-30070J0 |
GS136,LS136,YS130;GS130..DLX,ROY,STD;GS130..(4H,4HC)..SDX;GS130..4FC..SDX..TWLPG DK.BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-30050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 55556-30050 |
GS13#,JZS13#,LS13# |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30010E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.ROSE,TRIM4# |
1 | ||
| 55569-30010J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55569-30010J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30010E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) DK.ROSE,TRIM4# |
1 | ||
| 55569-30010J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55569-30010J0 |
GS13#,JZS13#,LS13# DK.BLUE,TRIM8# |
1 | ||
| 55588A - HOLDER, GLOVE COMPARTMENT DOOR MIRROR, RH | ||||
| 55588-30030 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30120J0 |
GS13#,JZS13#,LS13#,YS130 DK.BLUE,TRIM8# |
1 | ||
| 55607-30120E0 |
GS130,131,JZS13#,LS130,131..(DLX,ROY,ROYG,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) QUARTZ,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030C0 |
GS130,131,JZS130,131,LS130,131..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) BLACK,TRIM4#,8# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-14030C0 |
GS130,131,JZS130,131,LS130,131..(DLX,SALEX,SDX)..(HTWC,TDE,TDEC,TWC) BLACK,TRIM4#,8# |
1 | ||
| Common parts | ||||
| 90151-40009 | ||||
| 90164-50030 | ||||
| 90183-05103 | ||||
| 90468-04032 | ||||
| 90468-04087 | ||||
| 90468-04152 | ||||
| 90468-25003 | ||||
| 90541-03015 | ||||
| 91665-40616 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| Linked diagrams | ||||
| 6712 | ||||
| 8301 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
