GS130G-AWJFK (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
1GFE
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )GS130,136..MTM

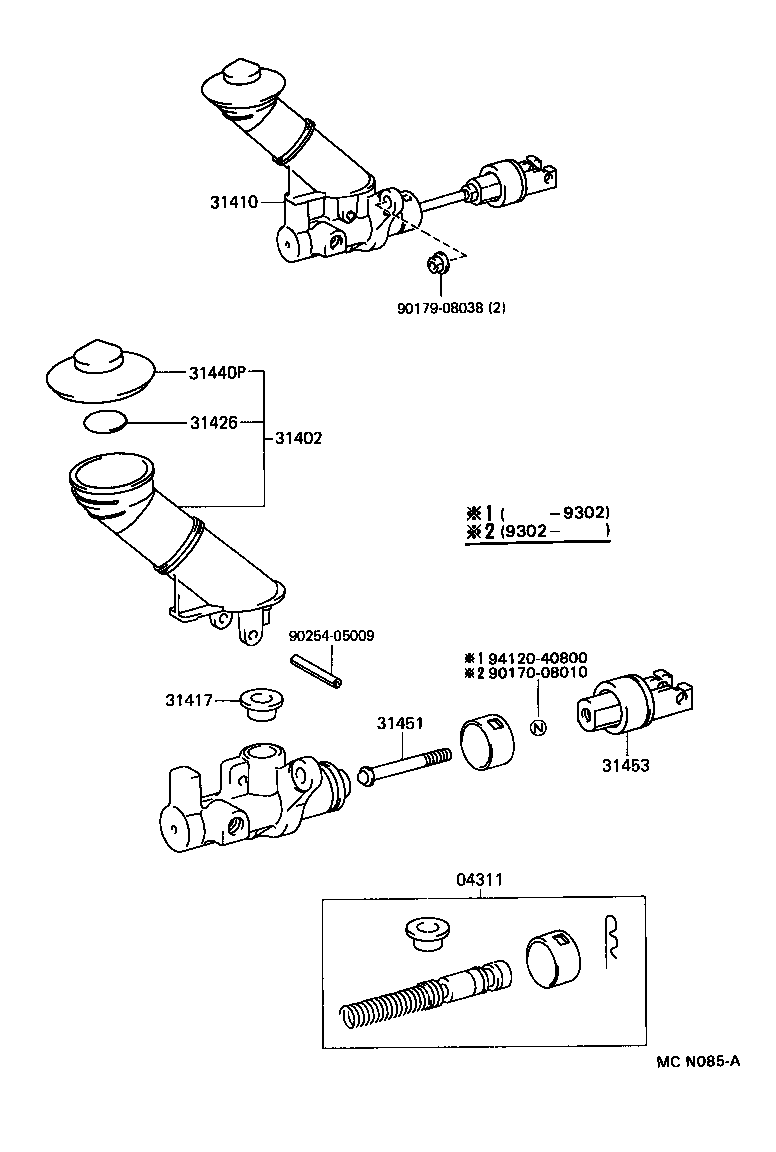

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12070 |
GS130,136,LS136..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-30090 |
GS130,136,YS130..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-30310 |
GS130,136..MTM |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-22020 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35080 |
GS130,136..MTM |
1 | ||
| 31451-35080 |
GS130,136,YS130..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-16012 |
GS130,136,LS136,YS130..MTM |
1 | ||
| Common parts | ||||
| 90170-08010 | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
