GS130G-AWJFE (1987)
Toyota Crown
Production
Sep 1987
-
Aug 1989
Engine
1GE
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )WG

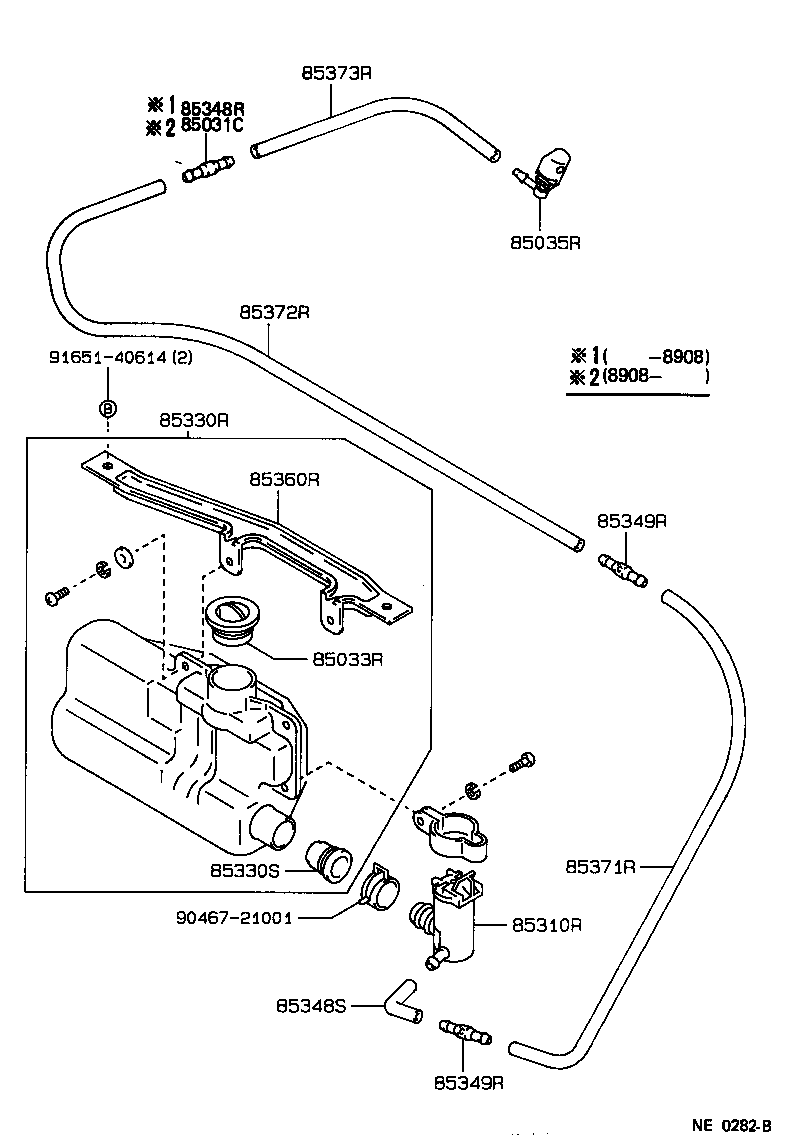

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85332-32010 |
GS130,JZS130,LS130..WG |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-91702 |
GS130,JZS130,LS130..WG |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-30060 |
GS130,JZS130,LS130..WG |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85331-91703 |
GS130,JZS130,LS130..WG |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32103 |
GS130,JZS130,LS130..WG |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GS130,LS130..WG |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
GS130,136,LS13#..V,WG |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GS130,JZS130,LS130..WG |
2 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GS130,JZS130,LS130..WG |
2 | ||
| 85360R - BRACKET ASSY, REAR WASHER | ||||
| 85361-91703 |
GS130,JZS130,LS130..WG |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 85353-91701 |
GS130,JZS130,LS130..WG |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 85343-91701 |
GS130,JZS130,LS130..WG 長さ=1240 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-07001 |
GS130,136,JZS130,LS130,136..V,WG 長さ=1000 |
1 | ||
| Common parts | ||||
| 90467-21001 | ||||
| 91651-40614 | ||||
