GS130G-AWJFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

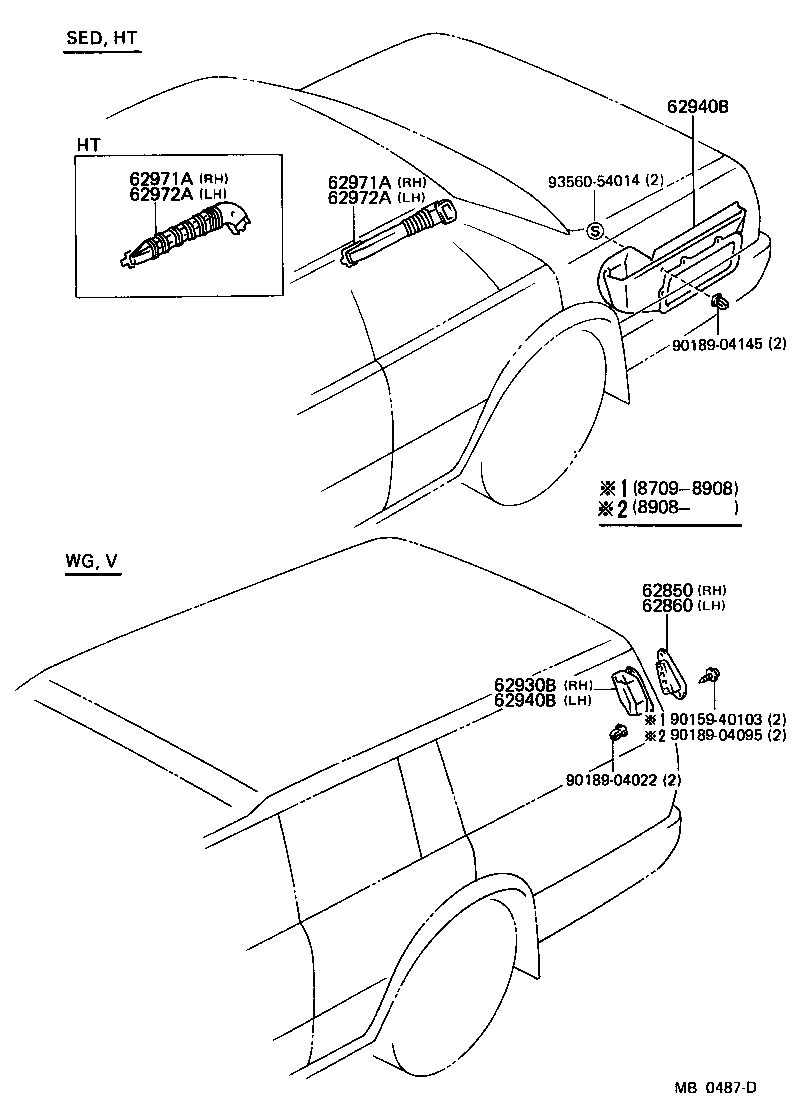

Click highlighted areas on diagram

diagram 62850 62860 62930B 62940B 62940B 62971A 62971A 62972A 62972A 9015940103 9018904022 9018904095 9018904145 9356054014
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-91702

GS130,136,JZS130,LS130,136..V,WG

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-91702

GS130,136,JZS130,LS130,136..V,WG

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62930-91702

GS130,136,JZS130,LS130,136..V,WG

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-91702

GS130,136,JZS130,LS130,136..V,WG

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-91702

GS130,136,JZS130,LS130,136..V,WG

 1
Common parts
90159-40103
90189-04022
90189-04095
90189-04145
93560-54014
