GS130G-AWJFE (1987)
Toyota Crown

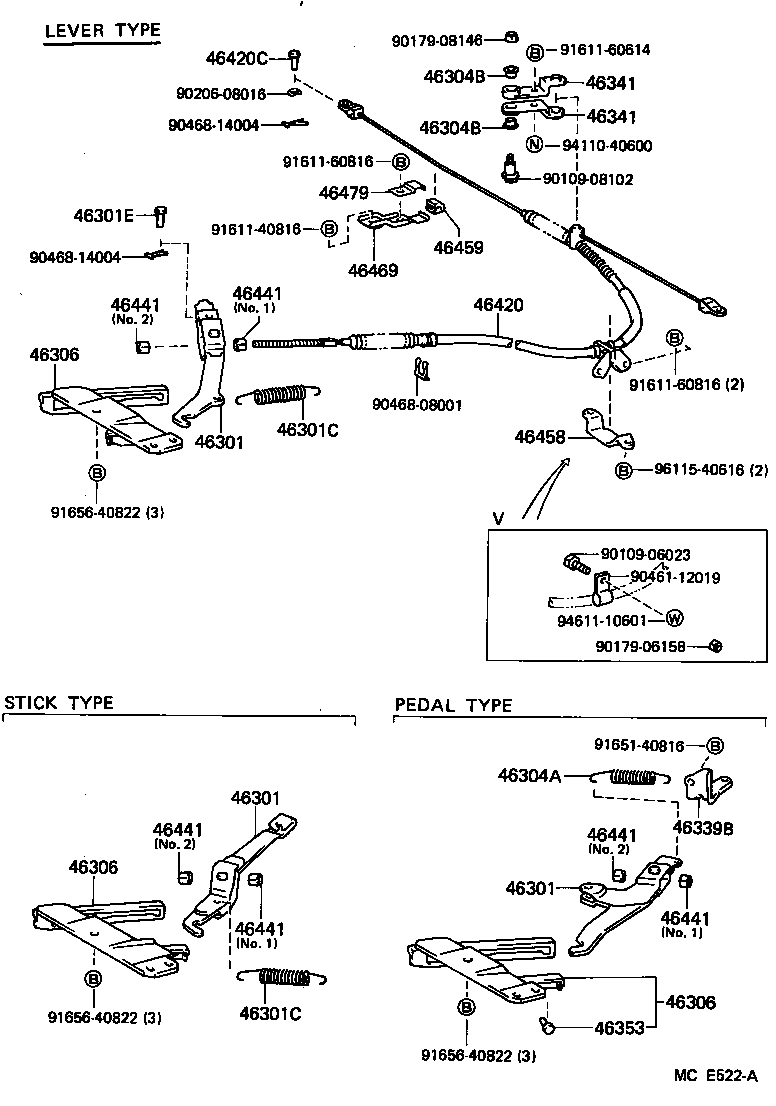

(8709- )GS130,136,JZS130,LS130,136,YS130
4-LINK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30200 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30200 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30200 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-20018 |
LS136,YS130;GS130,136,LS130,MS130..MTM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-20018 |
LS136,YS130;GS130,136,LS130,MS130..MTM |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30080 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30080 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30080 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-31010 |
GS130,136,LS13#,MS130,YS130 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-31010 |
GS130,136,LS13#,MS130,YS130 |
2 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30340 |
YS130..4H,4HC;GS130,LS130,MS130..4H |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08059 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
GS130,JZS130,LS130,MS130,YS130 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
| 96115-40616 | ||||

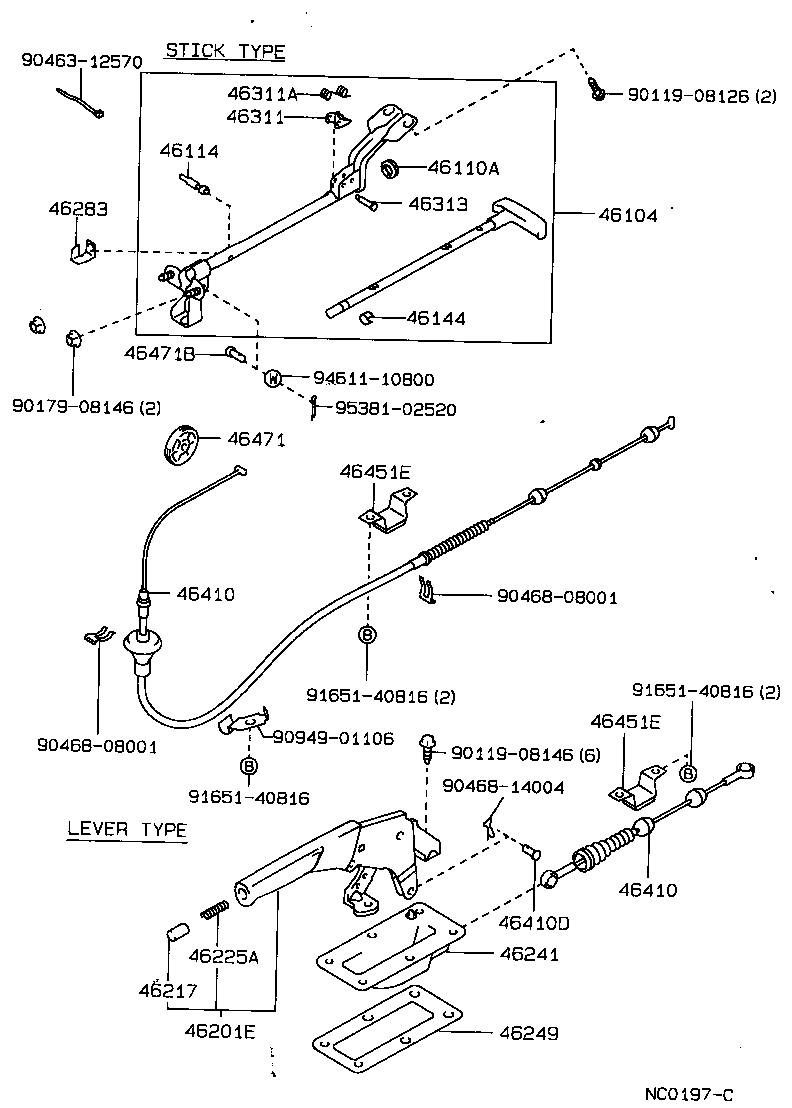

(8709- )LS136 ; (8709- )GS13#,LS130,131,MS130,YS130..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46104-30110 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-11195 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-30020 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH | ||||
| 46283-30020 |
LS136..STD;GS13#,JZS13#,LS130,131,MS13#,UZS131,YS130..4FC,4H,4HC |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30041 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30430 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30430 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-30080 |
GS131..5F;GS131..SSL..SPC;GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46451E - BRACKET, CABLE GUIDE SUPPORT, NO.1 | ||||
| 46451-30080 |
GS131..5F;GS131..SSL..SPC;GS130,136,LS13#,MS130,YS130 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-30010 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08062 |
YS130..4H,4HC;GS130,136,LS130,136,MS130..4H |
1 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90119-08146 | ||||
| 90179-08146 | ||||
| 90463-12570 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01106 | ||||
| 91651-40816 | ||||
| 94611-10800 | ||||
| 95381-02520 | ||||
