GS130-ATMEK (1988)

Toyota Crown

Production Sep 1988 - Aug 1989
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE,1GGP

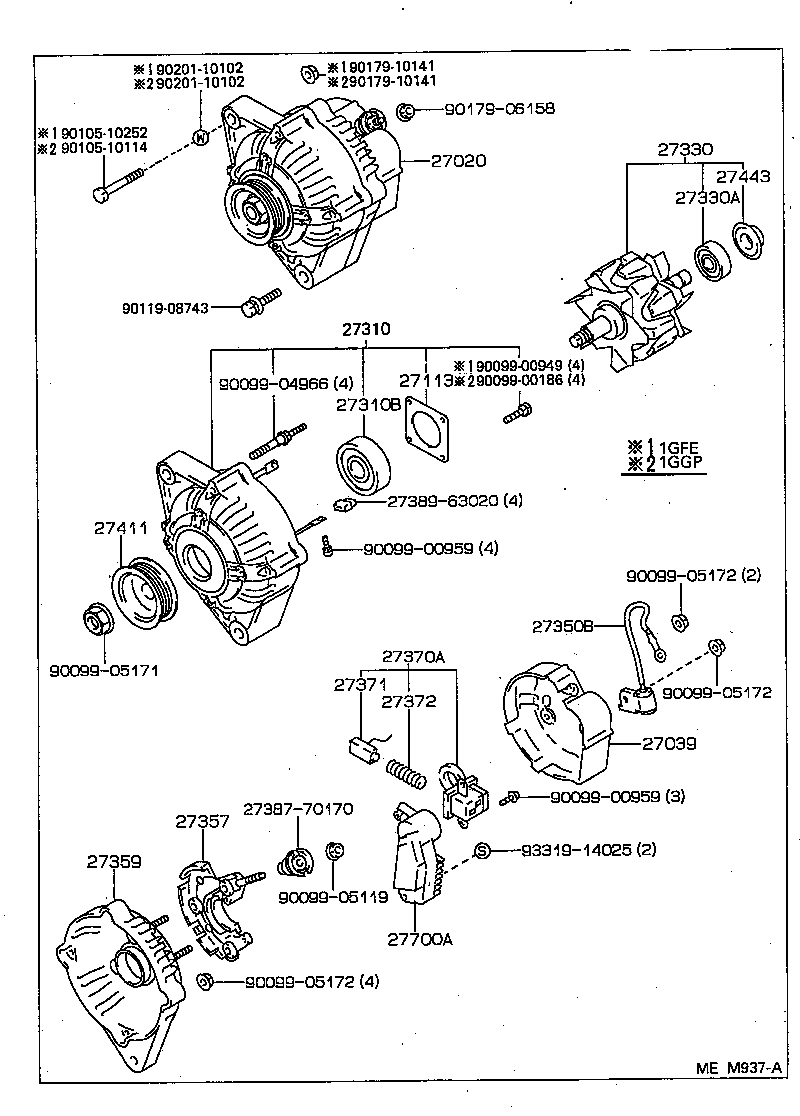

Click highlighted areas on diagram

12V 70A(GS130,131),12V 55A(GS136)

diagram 27020 27039 27113 27310 27310B 27330 27330A 27350B 27357 27359 27370A 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900186 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9010510114 9010510252 9011908743 9017906158 9017910141 9017910141 9020110102 9020110102 9331914025
Part # Description Qty Price
27039 - COVER, ALTERNATOR REAR END
27039-72010

1GFE,MP,3YP..GS130,131,MS130,YS130

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200

1GE,1GFE,1GGP,MP,3YP#..GS130,131,MS130,YS130

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

1GE,1GFE..GS130,131

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

1GE,1GFE..GS130,131

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

1GFE,MP,3YP..GS130,131,MS130,YS130

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70260

1GFE..GS130,131

 1
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

1GE,1GFE,MP,3YP..GS13#,MS130,YS130

 2
27411 - PULLEY, ALTERNATOR
27411-70260

1GFE..GS130,131

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GE,1GFE,1GG#,7MGE,MP,3YP..GS13#,MS13#,YS130

 1
Common parts
27387-70170
27389-63020
90099-00186
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10114
90105-10252
90119-08743
90179-06158
90179-10141
90201-10102
93319-14025
