GS130-ATMEE (1987)
Toyota Crown
(8709- )HT

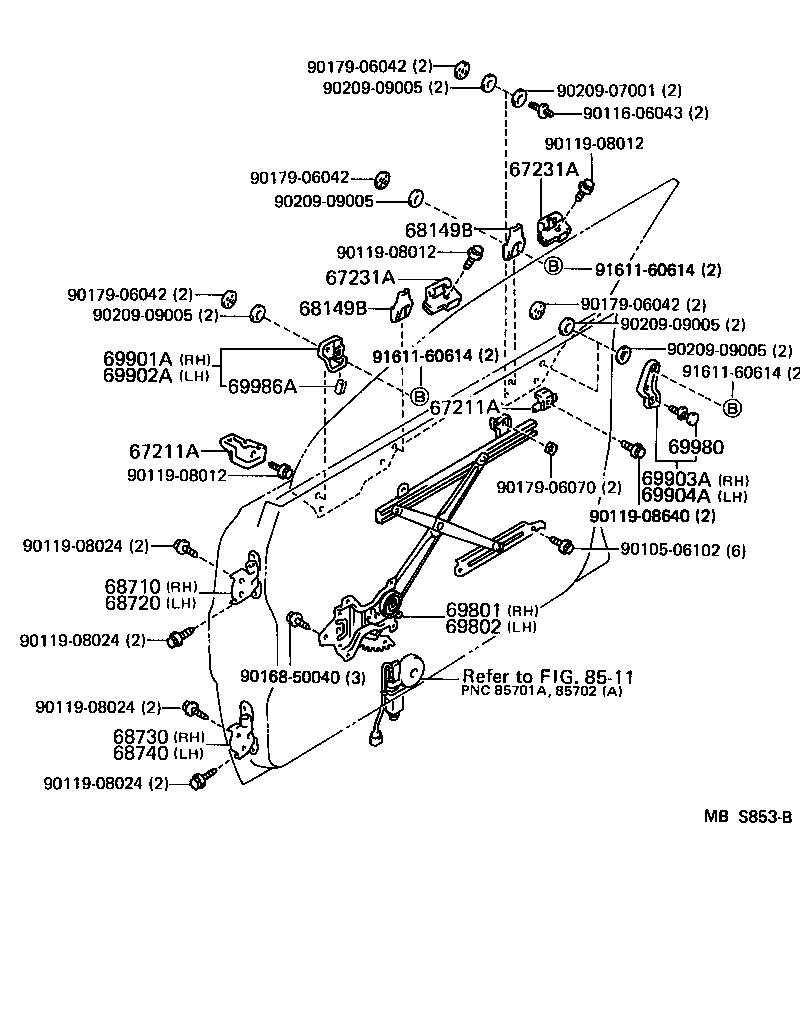

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-30100 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT FR-RH |
1 | ||
| 67211-30090 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT ﾘﾔ |
2 | ||
| 67212-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT FR-LH |
1 | ||
| 67211A - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-30100 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT FR-RH |
1 | ||
| 67211-30090 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT ﾘﾔ |
2 | ||
| 67212-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT FR-LH |
1 | ||
| 67231A - SUPPORT, FRONT DOOR TRIM | ||||
| 67232-30010 |
GS130,131,LS130,MS135,137..HT 左側 |
2 | ||
| 67231-30050 |
GS130,131,LS130,MS135,137..HT 右側 |
2 | ||
| 67231A - SUPPORT, FRONT DOOR TRIM | ||||
| 67232-30010 |
GS130,131,LS130,MS135,137..HT 左側 |
2 | ||
| 67231-30050 |
GS130,131,LS130,MS135,137..HT 右側 |
2 | ||
| 68149B - STABILIZER, FRONT DOOR GLASS MALE | ||||
| 68149-30010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
4 | ||
| 68149B - STABILIZER, FRONT DOOR GLASS MALE | ||||
| 68149-30010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
4 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..NOB |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-30080 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..NOB |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..NOB |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-30180 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-30180 |
GS130,131,LS130,MS135,137..HT |
1 | ||
| 69901A - BRACKET SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-30110 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 69902A - BRACKET SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-30080 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 69903A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH | ||||
| 69903-30090 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 69904A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH | ||||
| 69904-30060 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
1 | ||
| 69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE | ||||
| 69981-14020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
2 | ||
| 69986A - PIECE, FRONT DOOR GLASS GUIDE | ||||
| 69986-24010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..HT |
2 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90116-06043 | ||||
| 90119-08012 | ||||
| 90119-08024 | ||||
| 90119-08640 | ||||
| 90168-50040 | ||||
| 90179-06042 | ||||
| 90179-06070 | ||||
| 90209-07001 | ||||
| 90209-09005 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8511 | ||||
