GS130-AESGK (1988)

Toyota Crown

Production Sep 1988 - Aug 1989
Engine 1GFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709-8908)GS130,LS130..SAL,SALEX

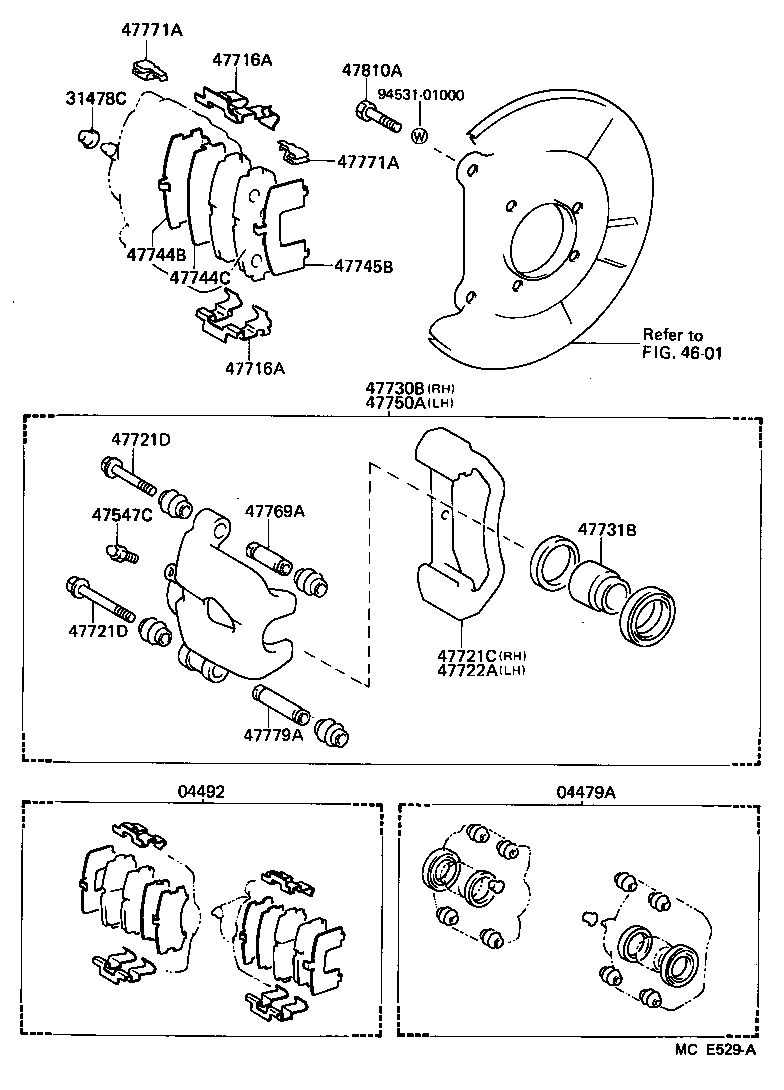

Click highlighted areas on diagram

diagram 04479A 04492 31478C 4601 47547C 47716A 47716A 47721C 47721D 47721D 47722A 47730B 47731B 47744B 47744C 47745B 47750A 47769A 47771A 47771A 47779A 47810A 9453101000
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-30090

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-30110

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

GS130,LS130..(HT,SED)..(SAL,SALEX);GS131,JZS131,LS131,MS135,137,UZS131

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-35020

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-30040

GS130,LS130..(HT,SED)..(SAL,SALEX)

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-30040

GS130,LS130..(HT,SED)..(SAL,SALEX)

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-30050

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09006

GS130,LS130..(HT,SED)..(SAL,SALEX)

*9−1.25PX85−20

 2
90119-09005

GS130,LS130..(HT,SED)..(SAL,SALEX)

*9−1.25PX62.5−20

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09006

GS130,LS130..(HT,SED)..(SAL,SALEX)

*9−1.25PX85−20

 2
90119-09005

GS130,LS130..(HT,SED)..(SAL,SALEX)

*9−1.25PX62.5−20

 2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-30050

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-30150

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
47731B - PISTON, REAR DISC BRAKE
47731-30060

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47744-30130

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47742-30030

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-40030

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-30150

GS130,LS130..(HT,SED)..(SAL,SALEX)

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-40020

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22040

LS130..(HT,SED)..SALEX;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

 4
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22040

LS130..(HT,SED)..SALEX;GS130,131,MS135,137..(HT,SED)..(ROY,ROYG,SAL,SALEX,SSL)

 4
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-40020

GS130,LS130..(HT,SED)..(SAL,SALEX)

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90101-10020

GS130,LS130..(HT,SED)..(SAL,SALEX)

 4
Common parts
94531-01000
Linked diagrams
4601
