GS130-AESGK (1988)

Toyota Crown

Production Sep 1988 - Aug 1989
Engine 1GFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

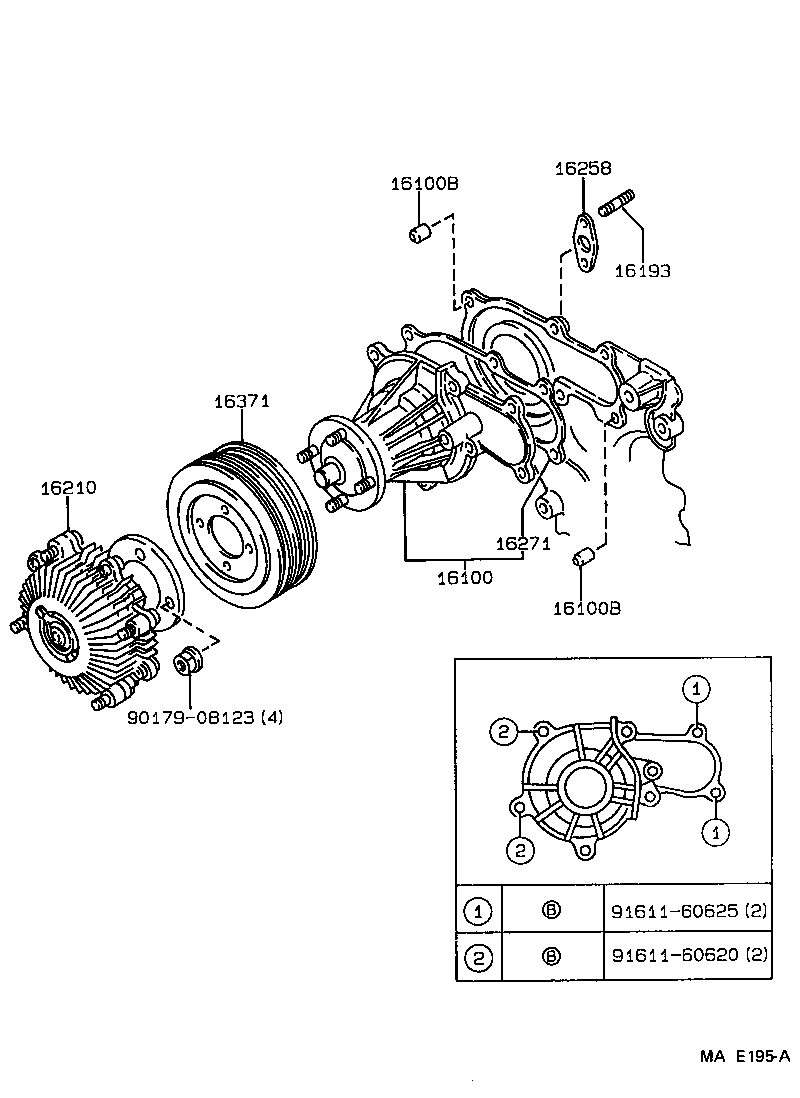

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16193 16210 16258 16271 16371 9017908123 9161160620 9161160625
Part # Description Qty Price
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16192-70010

1GE,1GFE,1GGP,1GGE..GS13#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-15011

1GE,1GFE,1GGE..GS13#

 1
16271 - GASKET, WATER PUMP
16124-88300

1GFE,1GGP,1GGE..GS13#

 1
Common parts
90179-08123
91611-60620
91611-60625
