GS130-AESGE (1987)
Toyota Crown

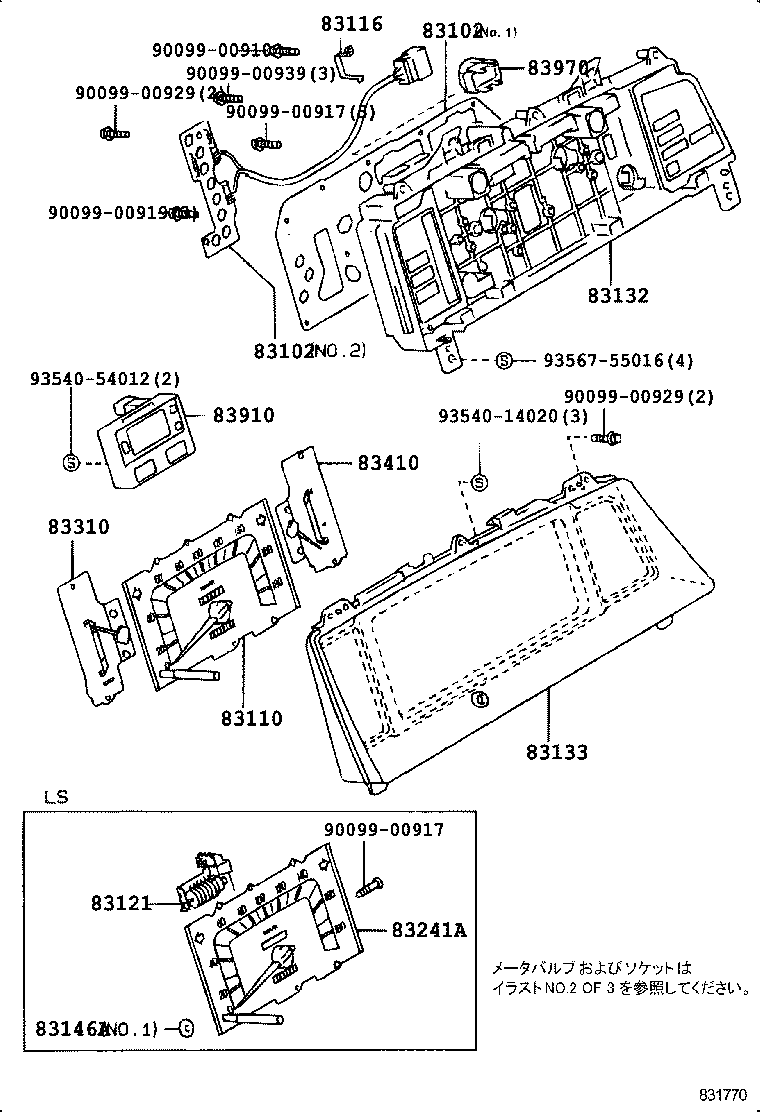

ILLUST NO. 1 OF 3(8709- )GS130,136,LS130,136,MS130..DLX,SAL,SALEX,SDX..DSL,EFI,HTWC,LPG,TWLPG
ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A040 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI NO.1 |
1 | ||
| 83247-3A040 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI NO.1 |
1 | ||
| 83247-3A680 |
GS131..4HC..EFI;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,LPG) NO.2 |
1 | ||
| 83247-3A680 |
GS131..4HC..EFI;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,LPG) NO.2 |
1 | ||
| 83247-3A040 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83247-3A040 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A040 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI NO.1 |
1 | ||
| 83247-3A040 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI NO.1 |
1 | ||
| 83247-3A680 |
GS131..4HC..EFI;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,LPG) NO.2 |
1 | ||
| 83247-3A680 |
GS131..4HC..EFI;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,LPG) NO.2 |
1 | ||
| 83247-3A040 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83247-3A040 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A400 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX |
1 | ||
| 83110-3A400 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-30010 |
GS131..HT..4FC..ROY;JZS131,LS130,131..HT..4FC;GS130,131,LS136,MS130,135..ATM..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 83116-30010 |
GS131..HT..4FC..ROY;JZS131,LS130,131..HT..4FC;GS130,131,LS136,MS130,135..ATM..(DLX,SAL,SALEX,SDX,SPE,SSL) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A470 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI |
1 | ||
| 83132-3A470 |
GS131..4HC..EFI;GS130..(SED,WG)..ATM..EFI |
1 | ||
| 83132-3A100 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83132-3A100 |
GS130,131..4HC..(EFI,HTWC) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30510 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX |
1 | ||
| 83133-30510 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,MS130..DLX,SAL,SALEX,SDX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30570 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC) |
1 | ||
| 83243-30570 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30570 |
GS131..4HC..EFI;GS130,136,LS13#,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,LPG) |
1 | ||
| 83244-30570 |
GS131..4HC..EFI;GS130,136,LS13#,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,LPG) |
1 | ||
| 83244-30571 |
GS131..4HC..SALEX;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,HTWC,LPG) |
1 | ||
| 83244-30571 |
GS131..4HC..SALEX;GS130,LS136,MS130..(SED,V,WG)..ATM..(DSL,EFI,HTWC,LPG) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30471 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| 83910-30471 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| 83910-30461 |
GS131,MS135..4HC;GS131,MS135..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX) |
1 | ||
| 83910-30461 |
GS131,MS135..4HC;GS131,MS135..SED..4FC;GS130,LS130..(SED,WG)..(ROY,SAL,SALEX) |
1 | ||
| 83910-30470 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| 83910-30470 |
GS130,136,LS13#,MS130..DLX,SAL,SDX |
1 | ||
| Common parts | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00919 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93540-54012 | ||||
| 93567-55016 | ||||

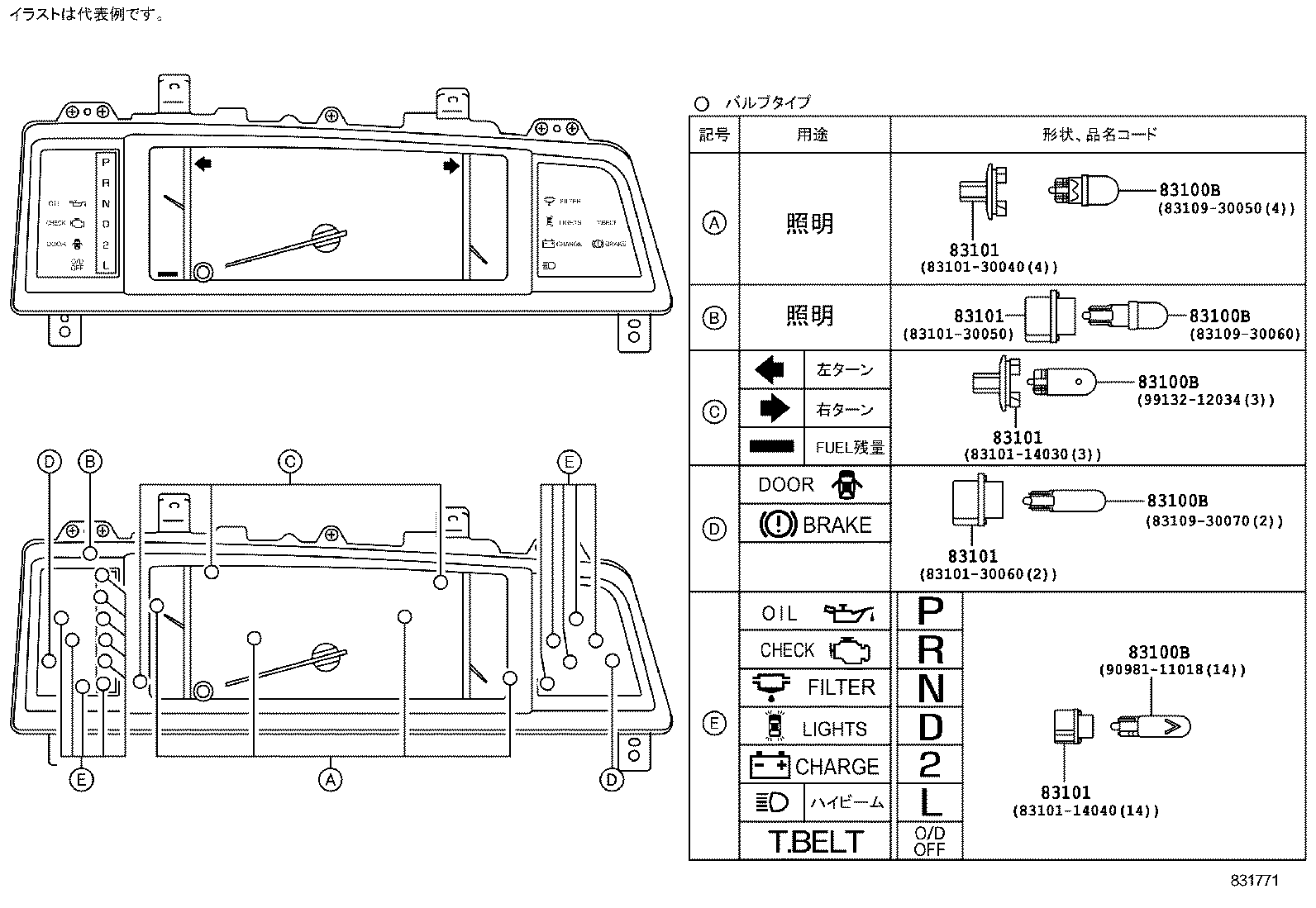

ILLUST NO. 2 OF 3(8709- )GS130,136,LS130,136,MS130..DLX,SAL,SALEX,SDX..DSL,EFI,HTWC,LPG,TWLPG
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 83109-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 3.4W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 99132-12034 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 3.4W |
1 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 83109-30070 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 14V 2.0W,ｿｹｯﾄなし |
2 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90981-11018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83109-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) 12V 2.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=18.0,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-14040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 OD=11.3,BLACK |
1 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30060 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=11.3,BLUE |
2 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30050 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) ｼｮｳﾒｲ ﾖｳ,OD=11.3,BLUE |
1 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||
| 83101-30040 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,136,LS130,136,MS130..(DLX,SAL,SALEX,SDX)..(DSL,EFI,HTWC,LPG,TWLPG) OD=18.5,BLUE |
4 | ||

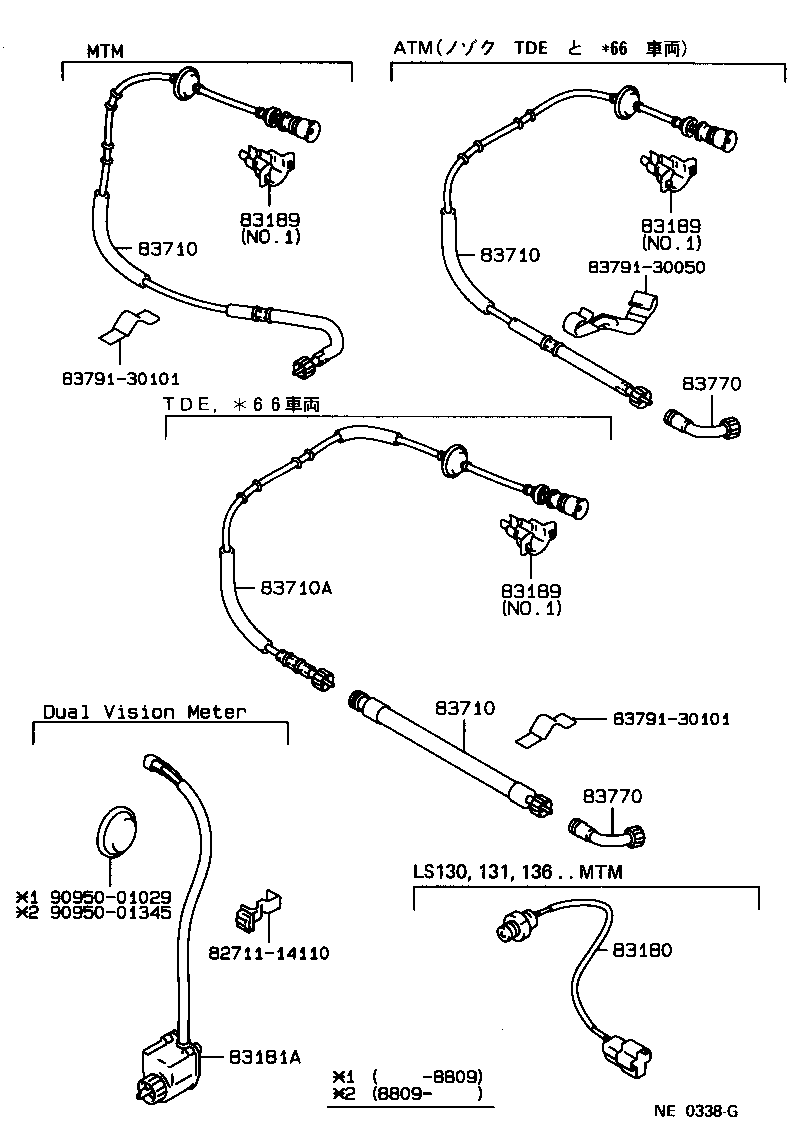

ILLUST NO. 3 OF 3(8709-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS135,137..4HC;MS135,137..4FC..NOB;GS13#,LS13#,MS130,YS130 NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30771 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136..ATM |
1 | ||
| 83710-30770 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136,MS130,YS130..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30771 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136..ATM |
1 | ||
| 83710-30770 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136,MS130,YS130..ATM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30771 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136..ATM |
1 | ||
| 83710-30770 |
MS135..4HC;MS135..4FC..NOB;GS130,131,LS136,MS130,YS130..ATM |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MS135..SALEX;MS135,137,UZS131..4HC;MS135,137,UZS131..4FC..NOB;GS130,131,JZS13#,LS13#,MS130,YS130..ATM |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MS135..SALEX;MS135,137,UZS131..4HC;MS135,137,UZS131..4FC..NOB;GS130,131,JZS13#,LS13#,MS130,YS130..ATM |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 83791-30050 | ||||
| 83791-30101 | ||||
| 90950-01029 | ||||
| 90950-01345 | ||||
ILLUST NO. 1 OF 2(9110-9512)SED
ﾀｸｼ- ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
