GS130-AESFK (1988)
Toyota Crown
Production
Sep 1988
-
Oct 1991
Engine
1GFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

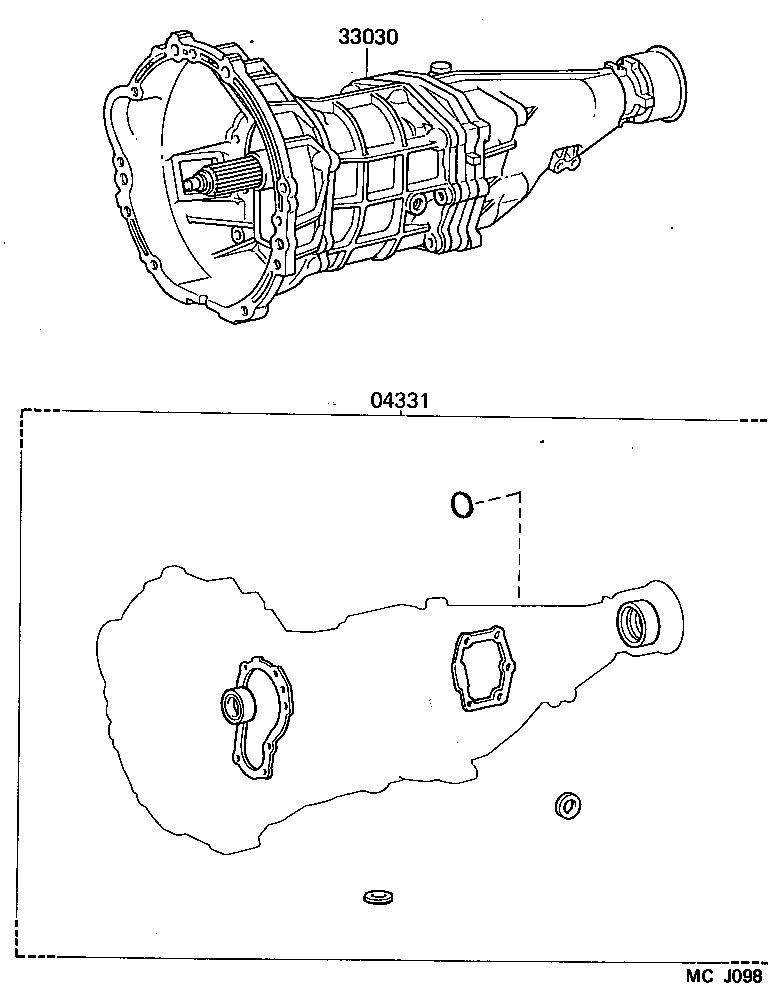

(8709-8908)4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-20041 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 04331-30090 |
GS130,136,LS130,136,YS130..4H |
1 | ||
| 33030 - TRANSMISSION UNIT ASSY, MANUAL | ||||
| 33030-3A050 |
GS130..SED..4H |
1 | ||

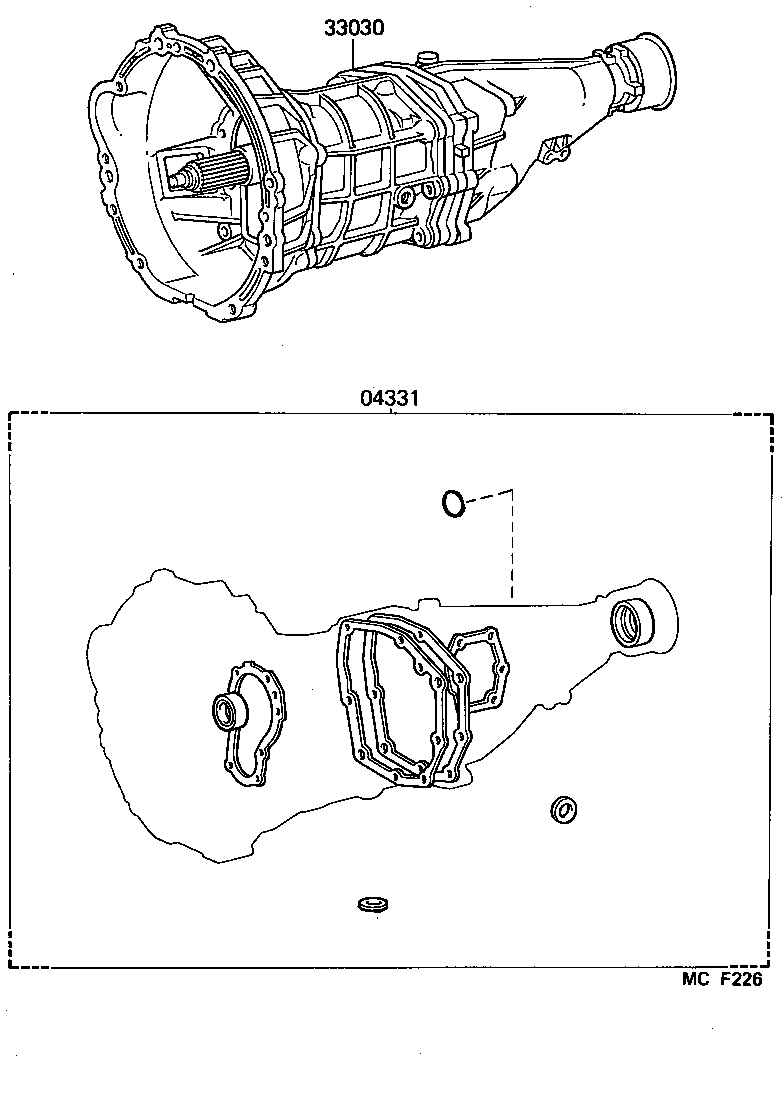

(8908- )4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL | ||||
| 04331-20041 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 04331-30090 |
GS130,136,LS130,136,YS130..4H |
1 | ||
| 33030 - TRANSMISSION UNIT ASSY, MANUAL | ||||
| 33030-3A050 |
GS130..SED..4H |
1 | ||
(9110-9512)4H
Click highlighted areas on diagram
N45
