GS130-AESFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )SED,V,WG

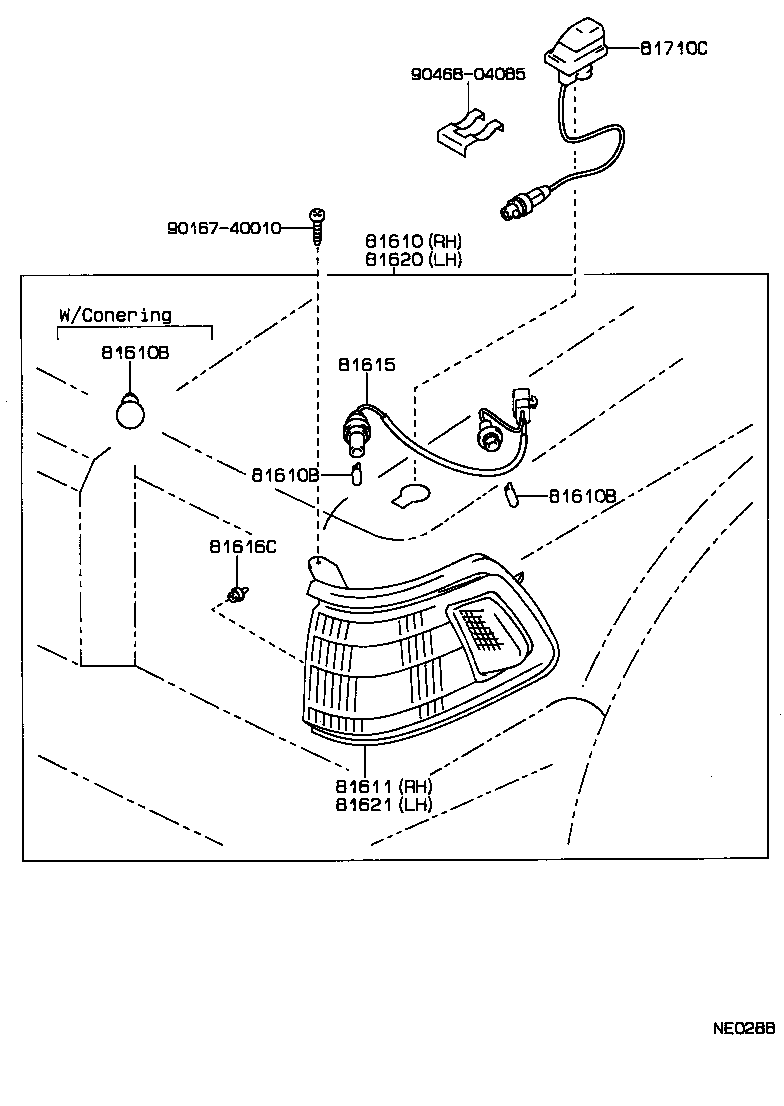

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81610B 81611 81615 81616C 81620 81621 81710C 9016740010 9046804085
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-30250

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 35/5W

 2
99132-12050

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 5W

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 35/5W

 2
99132-12050

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 5W

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 35/5W

 2
99132-12050

GS130,131,JZS13#,LS130,131,MS13#,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-30250

GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-30250

GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 2
81616C - BUSHING, CLEARNCE LAMP
81616-30161

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-30250

GS130,131,LS130,MS13#..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-30250

GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)

 1
Common parts
90167-40010
90468-04085
