GS130-AESFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

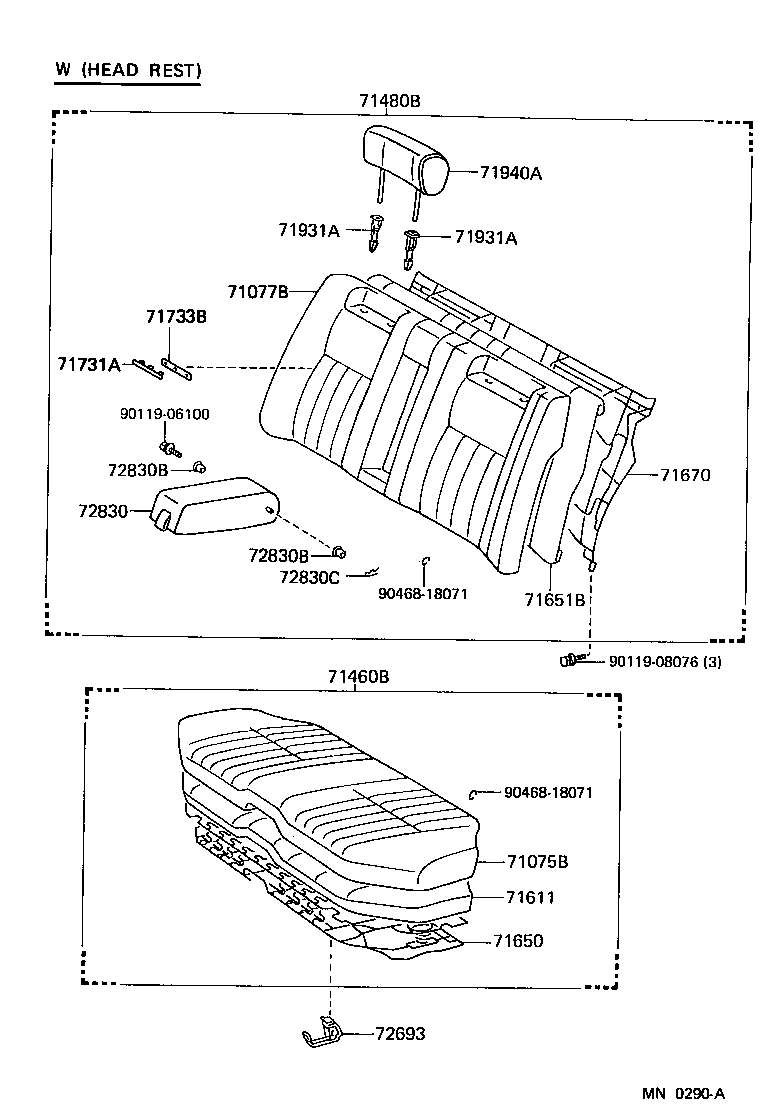

ILLUST NO. 1 OF 4(8709- )SED

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480B 71611 71650 71651B 71670 71953 71953 72693 9011908076 9046818071 9046818071
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-3029002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71065-3029004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71065-3028004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3A39004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71077-3A39002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71077-3A36004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-3047002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71560-3047004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71560-3046004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞB ｶｽﾀﾑ,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3A51004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71480-3A51002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71480-3A50004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-30580

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-30380

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-30080

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-30460

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71953 - PAD, REAR SEAT HEADREST
71953-30090

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
71953 - PAD, REAR SEAT HEADREST
71953-30090

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-30011

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
Common parts
90119-08076
90468-18071

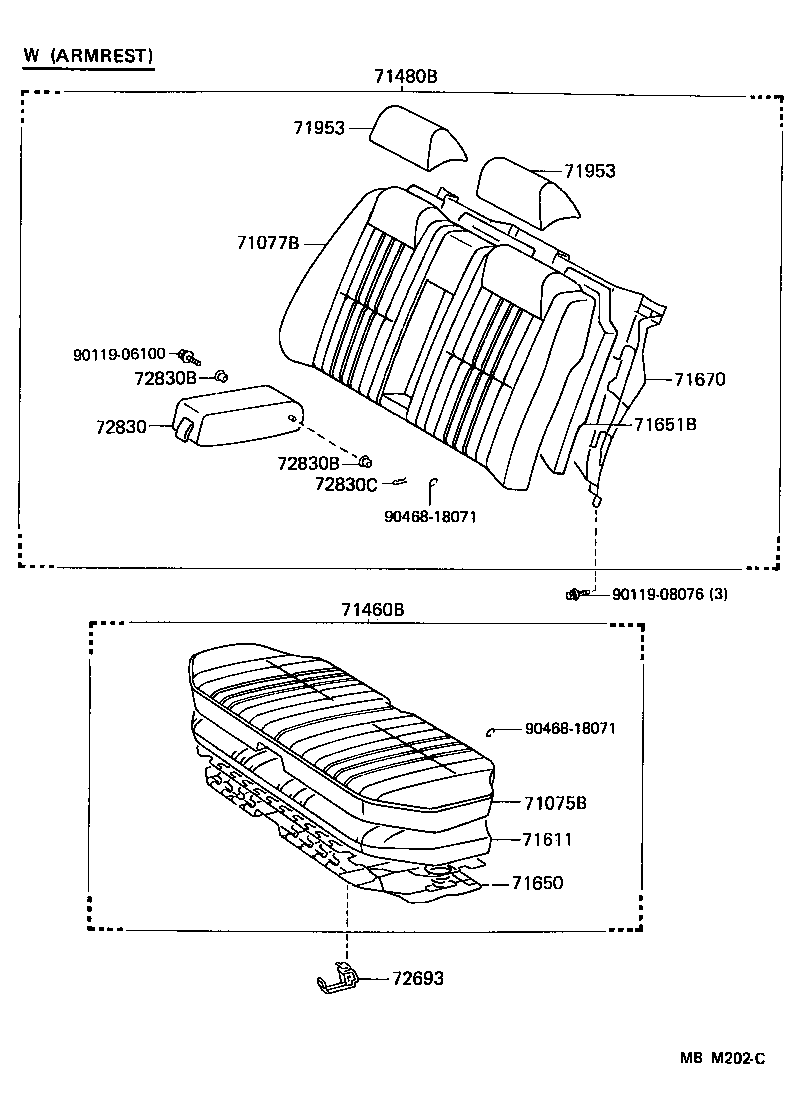

ILLUST NO. 1 OF 4(8709- )HT,SED

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480B 71611 71650 71651B 71670 71953 71953 72693 72830 72830B 72830B 72830C 9011906100 9011908076 9046818071 9046818071
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-3029002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71065-3029004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71065-3028004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3A39004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71077-3A39002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71077-3A36004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-3047002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71560-3047004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71560-3046004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞB ｶｽﾀﾑ,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3A51004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71480-3A51002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71480-3A50004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-30580

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-30380

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-30080

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-30460

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71953 - PAD, REAR SEAT HEADREST
71953-30090

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
71953 - PAD, REAR SEAT HEADREST
71953-30090

GS130,LS130,MS130,YS130..SED..(DLX,SDX,STD)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-30011

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-3034002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
72830-3034004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
72830-3052004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830C - CLIP, REAR SEAT CENTER ARMREST
90468-12070

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)

 1
Common parts
90119-06100
90119-08076
90468-18071

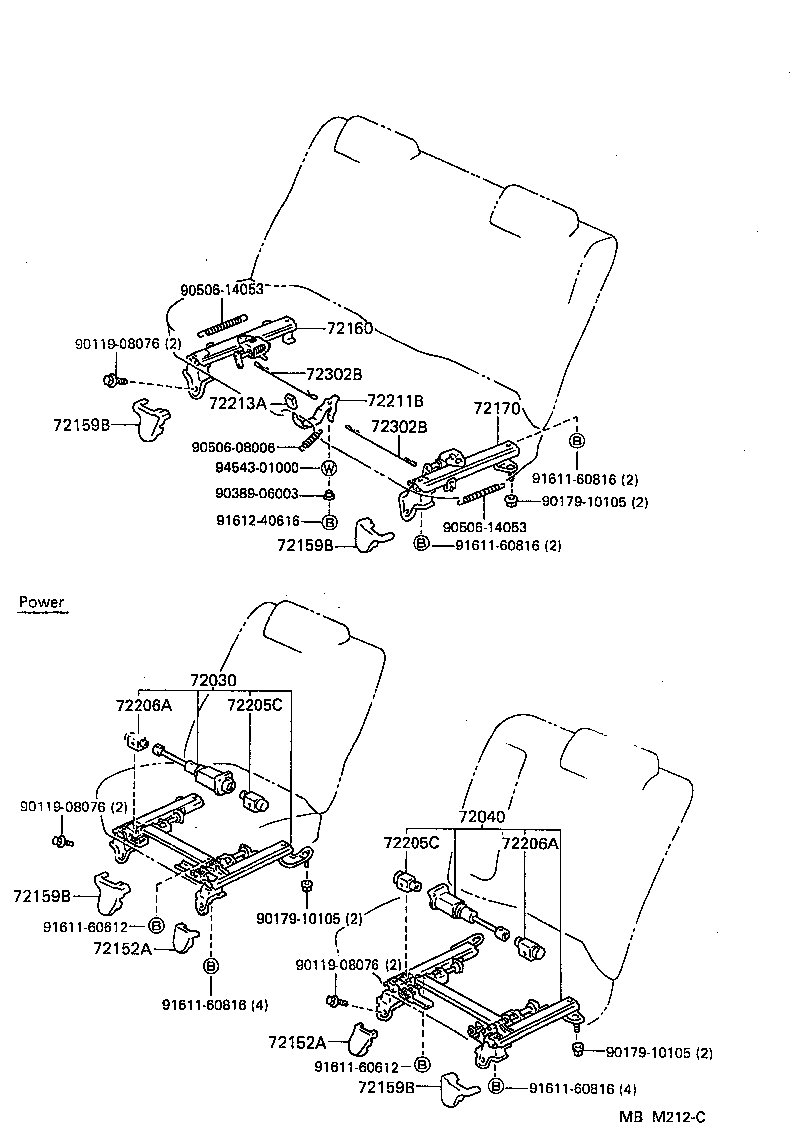

ILLUST NO. 3 OF 4(8709- )

Click highlighted areas on diagram

diagram 72030 72040 72152A 72152A 72159B 72159B 72159B 72159B 72160 72170 72205C 72205C 72206A 72206A 72211B 72213A 72302B 72302B 9011908076 9011908076 9011908076 9017910105 9017910105 9017910105 9038906003 9050608006 9050614053 9050614053 9161160612 9161160612 9161160816 9161160816 9161160816 9161160816 9161240616 9454301000
Part # Description Qty Price
Common parts
90119-08076
90179-10105
90389-06003
90506-08006
90506-14053
91611-60612
91611-60816
91612-40616
94543-01000

ILLUST NO. 1 OF 4(8709- )HT,SED

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480B 71611 71650 71651B 71670 71731A 71733B 71931A 71931A 71940A 72693 72830 72830B 72830B 72830C 9011906100 9011908076 9046818071 9046818071
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-3029002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71065-3029004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71065-3028004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3A39004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71077-3A39002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71077-3A36004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-3047002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71560-3047004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71560-3046004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞB ｶｽﾀﾑ,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3A51004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71480-3A51002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71480-3A50004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-30580

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-30380

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-30080

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-30460

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-30011

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-3034002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
72830-3034004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
72830-3052004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830C - CLIP, REAR SEAT CENTER ARMREST
90468-12070

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)

 1
Common parts
90119-06100
90119-08076
90468-18071

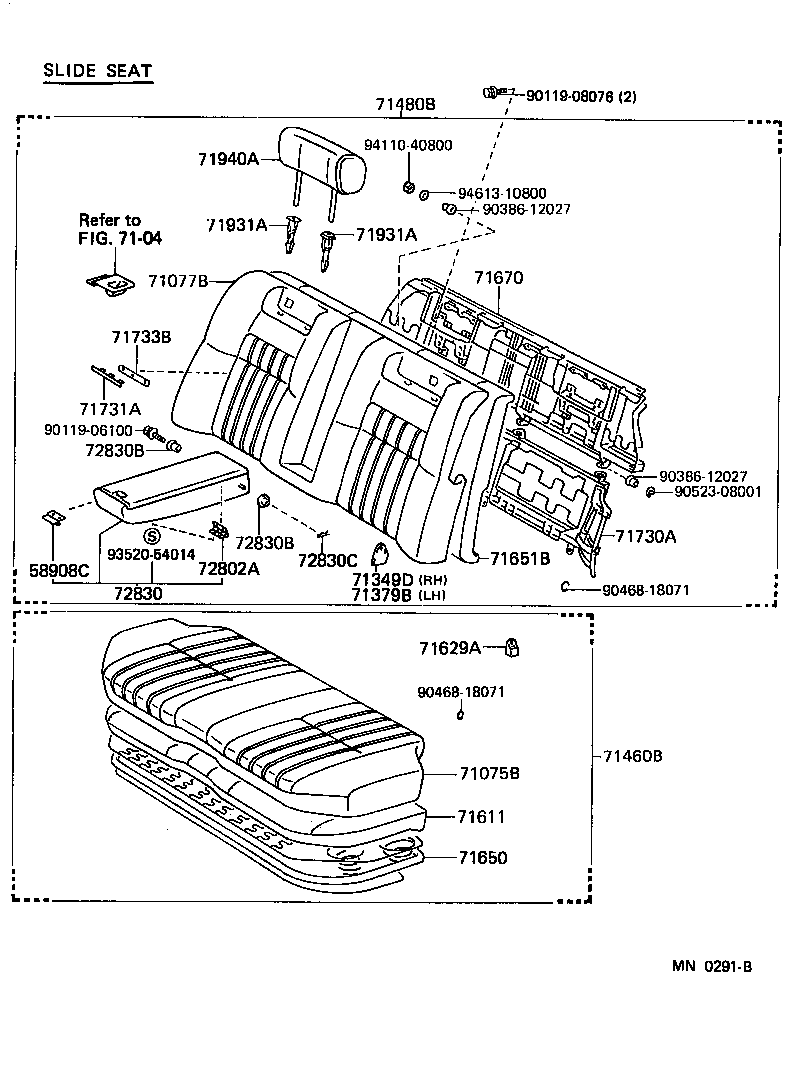

ILLUST NO. 1 OF 4(8709- )HT,SED

Click highlighted areas on diagram

diagram 58908C 7104 71075B 71077B 71349D 71379B 71460B 71480B 71611 71629A 71650 71651B 71670 71730A 71731A 71733B 71931A 71931A 71940A 72802A 72830 72830B 72830B 72830C 9011906100 9011908076 9038612027 9038612027 9046818071 9046818071 9052308001 9352054014 9411040800 9461310800
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-3029002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71065-3029004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71065-3028004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-3A39004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
71077-3A39002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
71077-3A36004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-3047002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71560-3047004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71560-3046004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞB ｶｽﾀﾑ,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-3A51004

GS130,LS130,MS130..SED..SDX

***,BLUE,TRIM8#

 1
71480-3A51002

GS130,LS130,MS130..SED..SDX

***,MAROON,TRIM3#

 1
71480-3A50004

GS130,MS130..SED..4H..SDX

***,ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-30580

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-30380

GS130,131,LS130,MS130,YS130..SED..(DLX,SAL,SDX,STD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-30080

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-30460

GS130,LS130,MS130,YS130..SED..(DLX,SDX)

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-3034002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
72830-3034004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
72830-3052004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830C - CLIP, REAR SEAT CENTER ARMREST
90468-12070

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)

 1
Common parts
90119-06100
90119-08076
90386-12027
90468-18071
90523-08001
93520-54014
94110-40800
94613-10800
Linked diagrams
7104

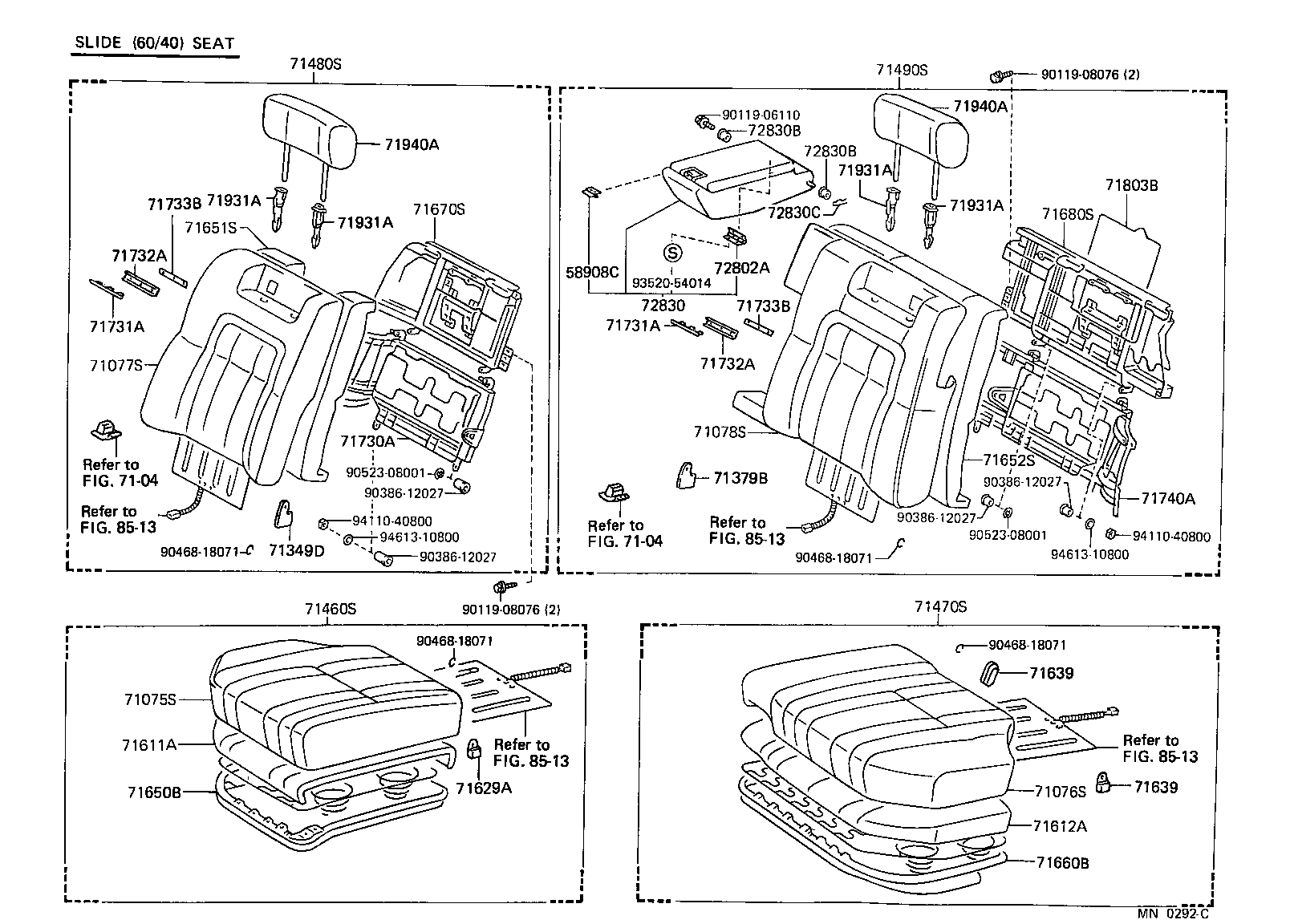

ILLUST NO. 1 OF 4(8709- )HT,SED

Click highlighted areas on diagram

diagram 58908C 7104 7104 71075S 71076S 71077S 71078S 71349D 71379B 71460S 71470S 71480S 71490S 71611A 71612A 71629A 71639 71639 71650B 71651S 71652S 71660B 71670S 71680S 71730A 71731A 71731A 71732A 71732A 71733B 71733B 71740A 71803B 71931A 71931A 71931A 71931A 71940A 71940A 72802A 72830 72830B 72830B 72830C 8513 8513 8513 8513 9011906110 9011908076 9011908076 9038612027 9038612027 9038612027 9038612027 9046818071 9046818071 9046818071 9046818071 9052308001 9052308001 9352054014 9411040800 9411040800 9461310800 9461310800
Part # Description Qty Price
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-3034002

GS130,LS130,MS130..SED..SDX

MAROON,TRIM3#

 1
72830-3034004

GS130,LS130,MS130..SED..SDX

BLUE,TRIM8#

 1
72830-3052004

GS130,MS130..SED..4H..SDX

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ B ｶｽﾀﾑ,BLUE,TRIM8#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SALEX,SDX,SPE,SSL)

 2
72830C - CLIP, REAR SEAT CENTER ARMREST
90468-12070

GS130,MS137..(HT,WG)..(ROYG,SDX);GS130,131,LS130,MS130,135,YS130..(HT,SED)..(DLX,ROY,SAL,SALEX,SDX,SPE,SSL)

 1
Common parts
90119-06110
90119-08076
90386-12027
90468-18071
90523-08001
93520-54014
94110-40800
94613-10800
Linked diagrams
7104
8513

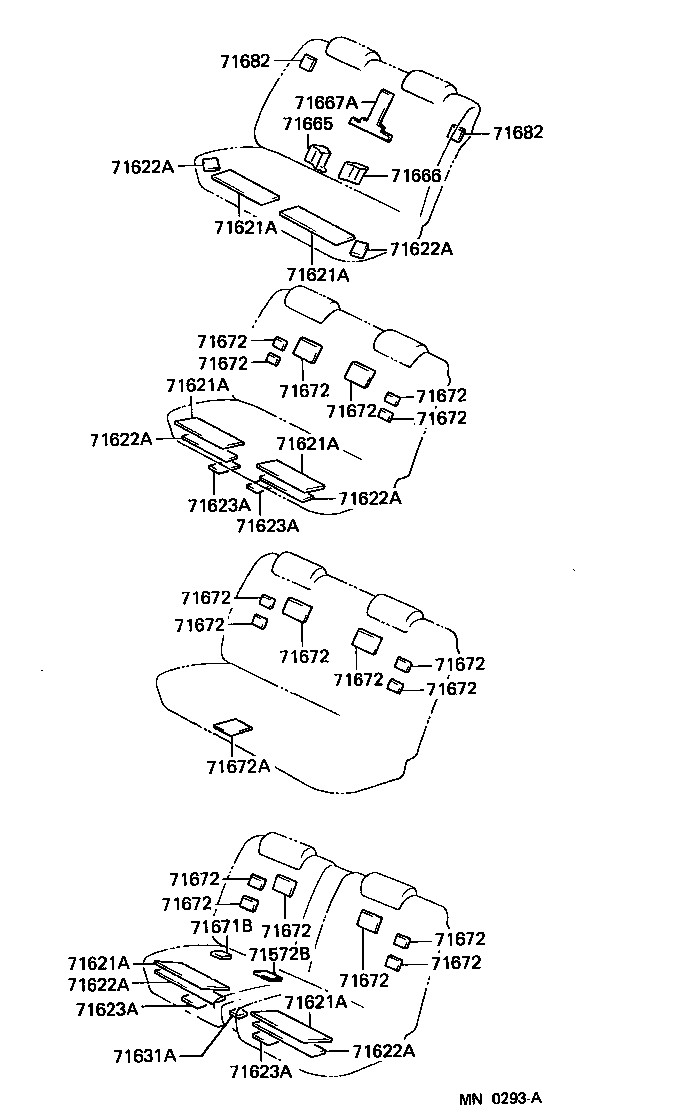

ILLUST NO. 2 OF 4(8709- )

Click highlighted areas on diagram

diagram 71572B 71621A 71621A 71621A 71621A 71621A 71621A 71622A 71622A 71622A 71622A 71622A 71622A 71623A 71623A 71623A 71623A 71631A 71665 71666 71667A 71671B 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672 71672A 71682 71682
Part # Description Qty Price
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-30280

LS130..HT..SALEX;GS131,MS130,YS130..DLX,SALEX,SDX,SSL,STD;GS130,LS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-30130

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 2
71665 - PAD, REAR SEAT BACK SIDE, RH
71665-30040

GS130,LS130,MS130,YS130..SED..(DLX,SAL,SDX)

 1
71666 - PAD, REAR SEAT BACK SIDE, LH
71666-30030

GS130,LS130,MS130,YS130..SED..(DLX,SAL,SDX)

 1
71667A - PAD, REAR SEAT BACK, CENTER A
71667-30060

GS131..SAL;LS130..HT..SALEX;GS131,JZS131,LS131,MS135..HT..(SALEX,SPE,SSL);GS130,LS130,MS130,YS130..(HT,SED)..(DLX,SAL,SDX,SPE,SSL,STD)

 1

ILLUST NO. 4 OF 4(8709-8908)SED

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price
