GS130-AESFE (1987)
Toyota Crown
(8709- )GS13#,JZS13#,LS13#,MS130,135,YS130

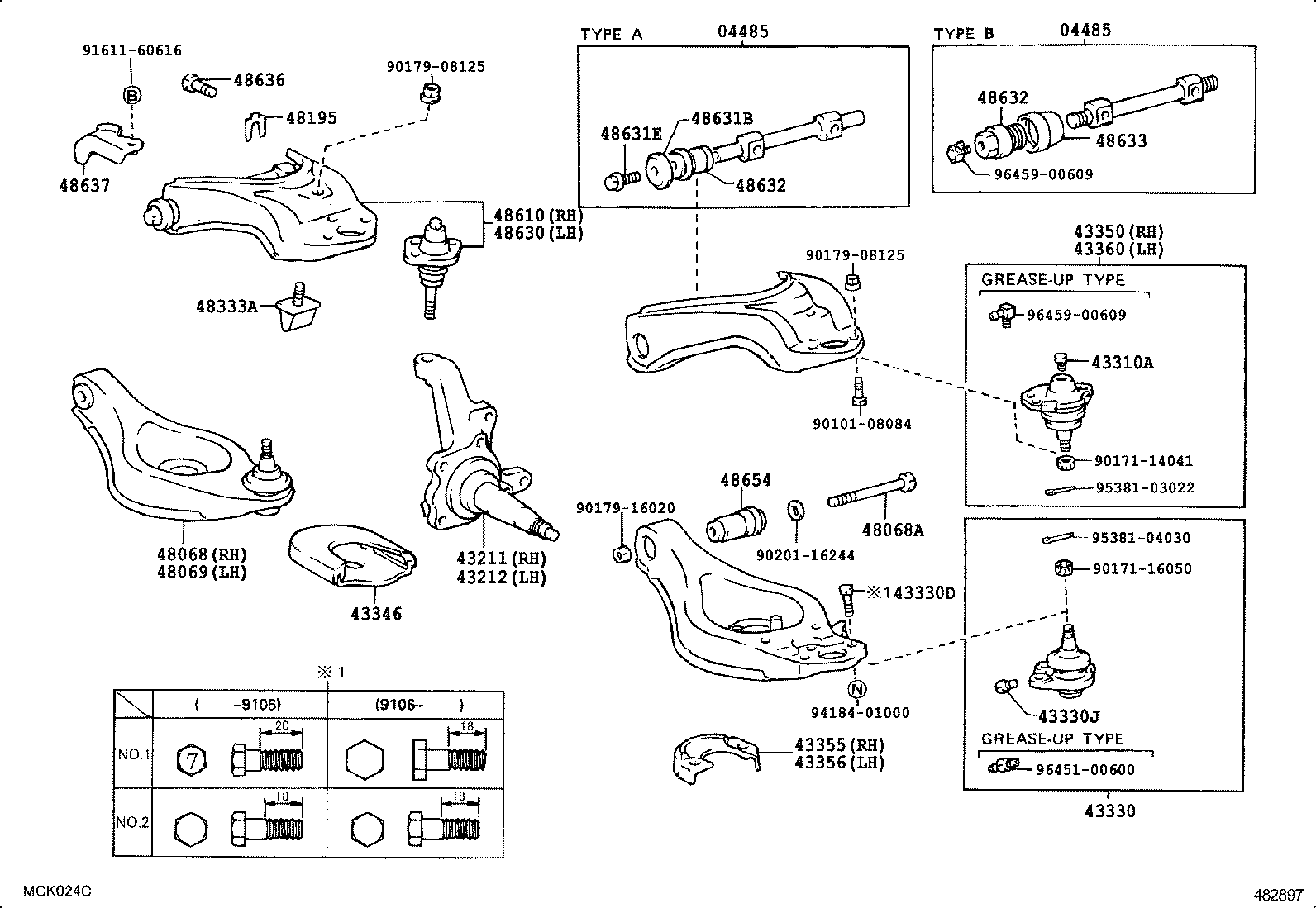

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-30060 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,LS130,MS135..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,SPC,TD,TDE,TWC) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-30060 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..EFI;GS131,LS130,MS135..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,SPC,TD,TDE,TWC) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30140 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30090 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
GS13#,LS13#,MS135 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43340-39205 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC 左側 |
1 | ||
| 43330-39225 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC 右側 |
1 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90109-10097 |
LS130..4FC,5F;LS130..4H..DLX;GS13#,LS136,MS13#,YS130 ｱﾘ(ﾛﾜ- ｱ-ﾑ ｱｲｽ ﾃﾞﾌﾚｸﾀ) |
6 | ||
| 90101-10439 |
GS13#,LS13#,MS13#,YS130 |
6 | ||
| 43346 - PROTECTOR, LOWER BALL JOINT DUST COVER | ||||
| 43346-30010 |
LS130..4FC,5F;LS130..4H..DLX;GS13#,JZS13#,LS131,136,MS13#,UZS131,YS130 |
2 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-39065 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-30020 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43356-30020 |
MS130..4H..SDX;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-39065 |
JZS131,MS135..ROY,SSL;GS13#,JZS130,LS13#..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-30170 |
GS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG) |
1 | ||
| 48068-30150 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90101-16024 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-30150 |
GS130..ATM..(EFI,HTWC,SPC);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 48069-30170 |
GS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG) |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-15016 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 厚さ=1.6 |
1 | ||
| 90565-15017 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 厚さ=1.0 |
1 | ||
| 90565-15018 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 厚さ=2.0 |
1 | ||
| 48333A - SUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM | ||||
| 48333-30040 |
GS130..(HT,SED)..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-30110 |
JZS131,MS135..ROY,SSL;GS130..ATM..(EFI,HTWC,SPC);GS131,JZS130,LS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 48610-30120 |
GS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG) |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-30110 |
JZS131,MS135..ROY,SSL;GS130..ATM..(EFI,HTWC,SPC);GS131,JZS130,LS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
1 | ||
| 48630-30120 |
GS130,MS130..SED..4H..SDX;GS130,MS130..ATM..(LPG,TWLPG) |
1 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02020 |
GS13#,LS13#,MS130,135,YS130 |
4 | ||
| 48631E - BOLT(FOR UPPER SUSPENSION ARM) | ||||
| 90105-12017 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30070 |
GS130..ATM;GS130,MS130..SED..4H..SDX;JZS131,MS130,135..ATM..(DLX,ROY,SDX,SSL);GS131,JZS130,LS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
4 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30070 |
GS130..ATM;GS130,MS130..SED..4H..SDX;JZS131,MS130,135..ATM..(DLX,ROY,SDX,SSL);GS131,JZS130,LS130,131..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC) |
4 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 90105-14062 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30030 |
GS130,MS130..ATM;GS130,MS130..SED..4H..SDX;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS13#,LS130,131,MS135,137,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| Common parts | ||||
| 90101-08084 | ||||
| 90171-14041 | ||||
| 90171-16050 | ||||
| 90179-08125 | ||||
| 90179-16020 | ||||
| 90201-16244 | ||||
| 91611-60616 | ||||
| 94184-01000 | ||||
| 95381-03022 | ||||
| 95381-04030 | ||||
| 96451-00600 | ||||
| 96459-00609 | ||||
