GS130-AESFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG

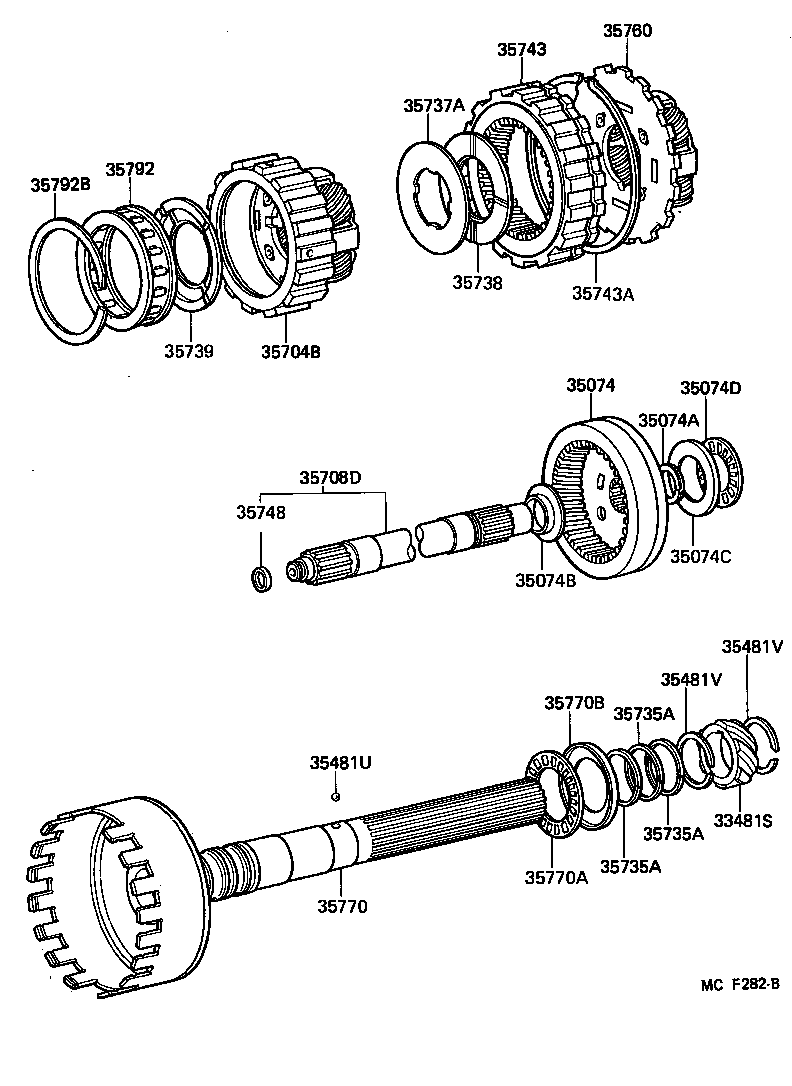

Click highlighted areas on diagram

diagram 33481S 35074 35074A 35074B 35074C 35074D 35481U 35481V 35481V 35704B 35708D 35735A 35735A 35735A 35737A 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-25011

GS130,131..ATM..(EFI,TWC)

歯数=4

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30010

GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC)

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC)

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

GS130,131,LS136,MS13#..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)

厚さ=1.50,外径=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG)

厚さ=1.50,外径=33.8

 2
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-22030

GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC)

 1
35708D - SHAFT SUB-ASSY, INTERMEDIATE
35708-30031

GS130,131,LS136..ATM..(DSL,EFI,HTWC,TWC)

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 3
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22010

GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010

GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC)

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-14010

GS130,131..ATM..(EFI,HTWC,TWC)

 1
35743 - GEAR, FRONT PLANETARY RING
35743-22010

GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC)

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

GS130,131,LS130,YS130..ATM..(EFI,HTWC,LPG,TDE,TWC)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG)

 1
