GS130-AESFE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)1GE

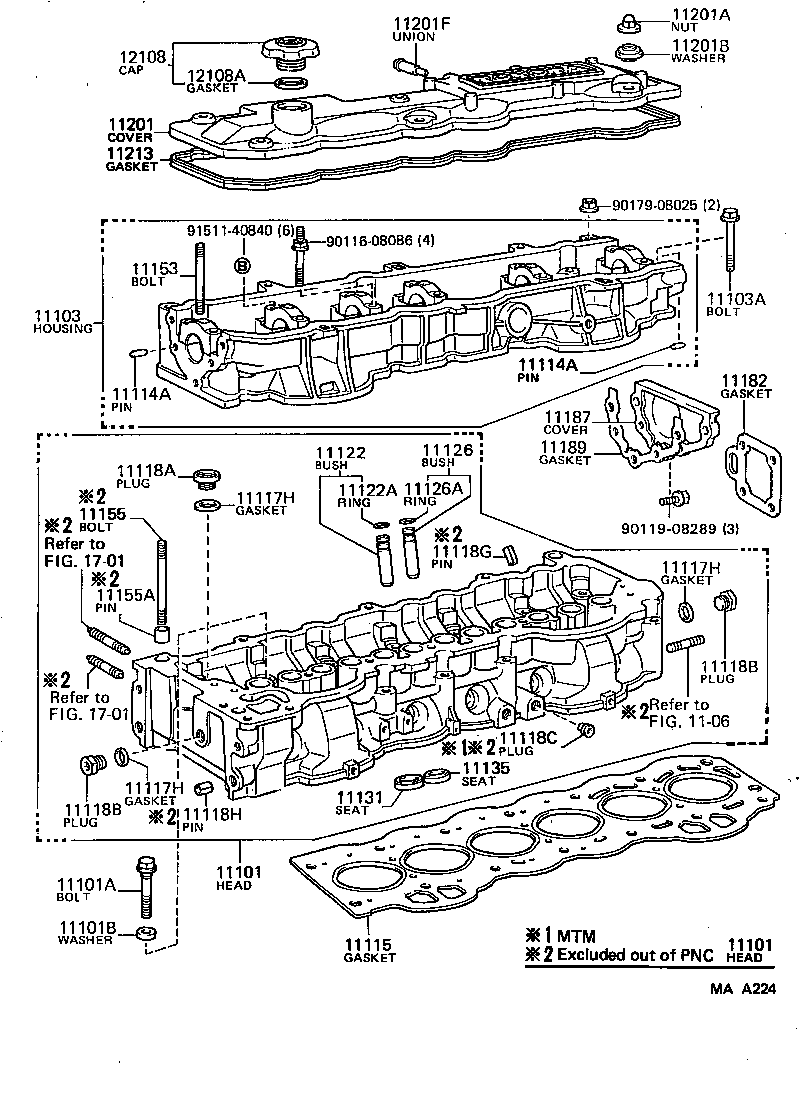

Click highlighted areas on diagram

diagram 1106 11101 11101 11101A 11101B 11103 11103A 11114A 11114A 11115 11117H 11117H 11117H 11118A 11118B 11118B 11118C 11118G 11118H 11122 11122A 11126 11126A 11131 11135 11153 11155 11155A 11182 11187 11189 11201 11201A 11201B 11201F 11213 12108 12108A 1701 1701 9011608086 9011908289 9017908025 9151140840
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-70030

1GE..GS13#

 1
11101 - HEAD SUB-ASSY, CYLINDER
11101-70030

1GE..GS13#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025

1GE..GS13#

 14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10050

1GE,1GG#..GS13#

 14
90201-10344

1GE..GS13#

 14
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-79017

1GE..GS13#

 1
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-08030

1GE..GS13#

 10
11114A - PIN, STRAIGHT
90250-06003

1GE..GS13#

長さ=14,外径=6

 4
11114A - PIN, STRAIGHT
90250-06003

1GE..GS13#

長さ=14,外径=6

 4
11115 - GASKET, CYLINDER HEAD
11115-70020

1GE..GS13#

 1
11117H - GASKET(FOR WATER HOLE)
90430-12005

1GE..GS13#

P.N.C 11118B

 2
90430-20004

1GE..GS13#

P.N.C 11118A

 3
11117H - GASKET(FOR WATER HOLE)
90430-12005

1GE..GS13#

P.N.C 11118B

 2
90430-20004

1GE..GS13#

P.N.C 11118A

 3
11117H - GASKET(FOR WATER HOLE)
90430-12005

1GE..GS13#

P.N.C 11118B

 2
90430-20004

1GE..GS13#

P.N.C 11118A

 3
11118A - PLUG, STRAIGHT, NO.1
90341-20002

1GE..GS13#

 3
11118B - PLUG, STRAIGHT, NO.2
90341-12013

1GE..GS13#

 2
11118B - PLUG, STRAIGHT, NO.2
90341-12013

1GE..GS13#

 2
11118G - PIN, SLOTTED SPRING, NO.1
90254-11001

1GE..GS13#

 2
11118H - PIN, SLOTTED SPRING, NO.2
90254-13001

1GE..GS13#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11127-15020

1GE..GS13#

O/S 0.05

 6
11126-15020

1GE..GS13#

STD

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001

1GE..GS13#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-70020

1GE..GS13#

STD

 6
11127-70020

1GE..GS13#

O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001

1GE..GS13#

 6
11131 - SEAT, INTAKE VALVE
11131-15020

1GE..GS13#

STD

 6
11132-15020

1GE..GS13#

O/S 0.03

 6
11135 - SEAT, EXHAUST VALVE
11136-70030

1GE..GS13#

O/S 0.03

 6
11135-70030

1GE..GS13#

STD

 6
11153 - BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
90116-06015

1GE..GS13#

 6
11155 - BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
90116-08088

1GE..GS13#

 2
11155A - PIN, RING W/HEAD
90253-13017

1GE..GS13#

 2
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-70011

1GE..GS13#

 1
11187 - COVER, CAMSHAFT HOUSING, REAR
11185-70012

1GE..GS13#

 1
11189 - GASKET, CAMSHAFT HOUSING REAR COVER
11186-70010

1GE..GS13#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-70020

1GE..GS13#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06008

1GE..GS13#

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08020

1GE..GS13#

 6
11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION)
90406-09001

1GE..GS13#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-70010

1GE..GS13#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

1GE,1GG#..GS13#

 1
12180-13030

1GE,1GFE,1GGZE..GS13#

 1
12180-13030

1GE,1GFE,1GGZE..GS13#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1GE,1GG#..GS13#

 1
90430-37140

1GE,1GFE,1GGZE..GS13#

 1
Common parts
90116-08086
90119-08289
90179-08025
91511-40840
