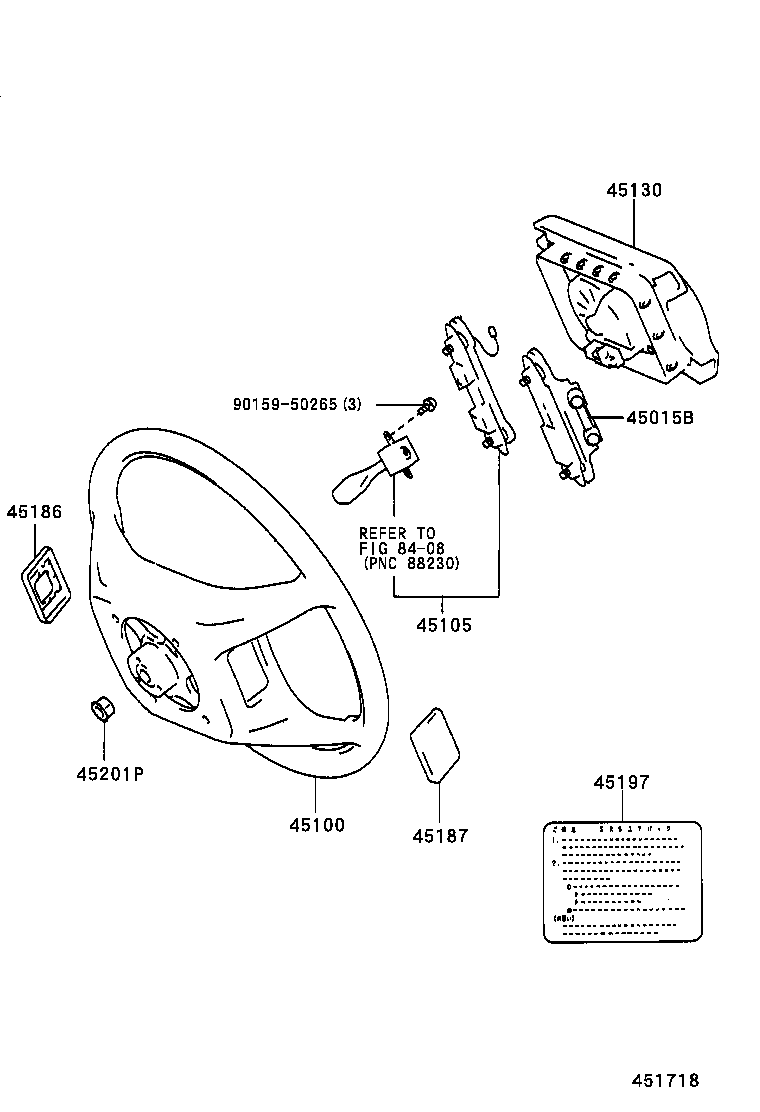

GS130-AESFD (1989)
Toyota Crown
(8908- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3029004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036102 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3024002 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 45130-3028004 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 8408 | ||||

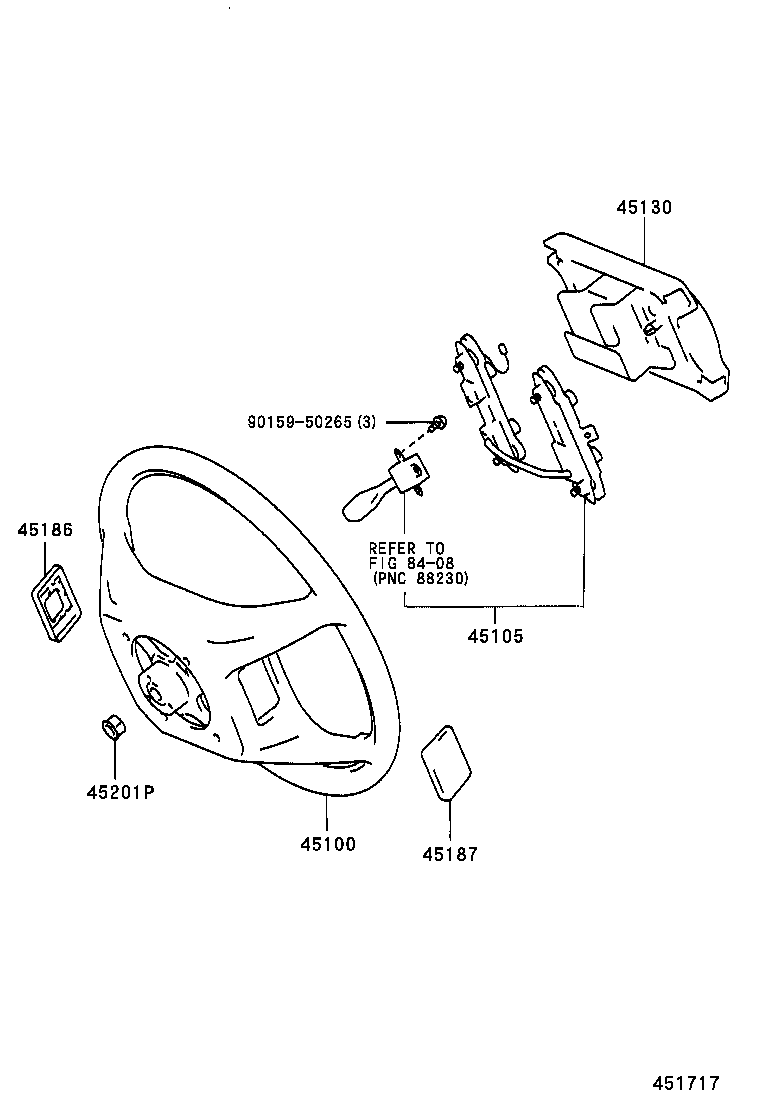

(8908- )
4-SPOKE,ｱﾘ(ｴｱ ﾊﾞﾂｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3029004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036102 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3024002 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 45130-3028004 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 8408 | ||||

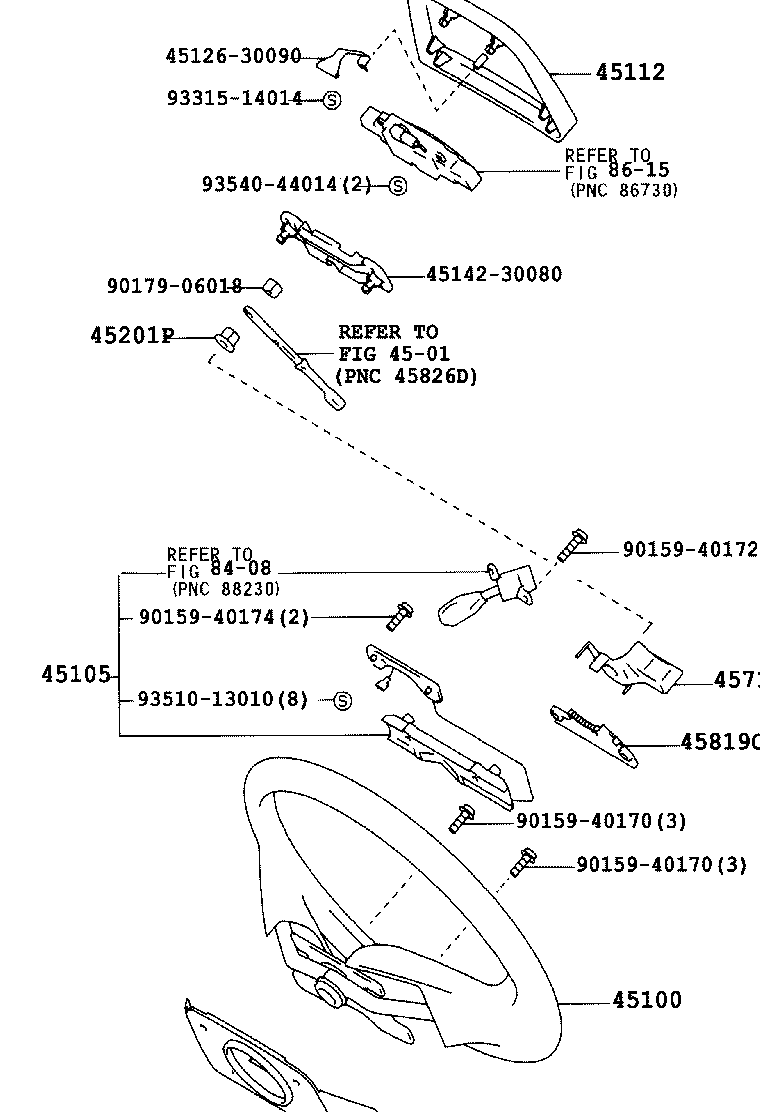

(8908- )
2-SPOKE,ｱﾘ(ﾃﾞﾝﾜ ﾀｲｵｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3029004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036102 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-30010 |
GS130,131,MS13#..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,LPG,SPC,TWC) |
1 | ||
| 45713-30030 |
MS137,UZS131..4HC;GS130,131,JZS13#,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 45126-30090 | ||||
| 45142-30080 | ||||
| 90159-40170 | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 90179-06018 | ||||
| 93315-14014 | ||||
| 93510-13010 | ||||
| 93540-44014 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8408 | ||||
| 8615 | ||||

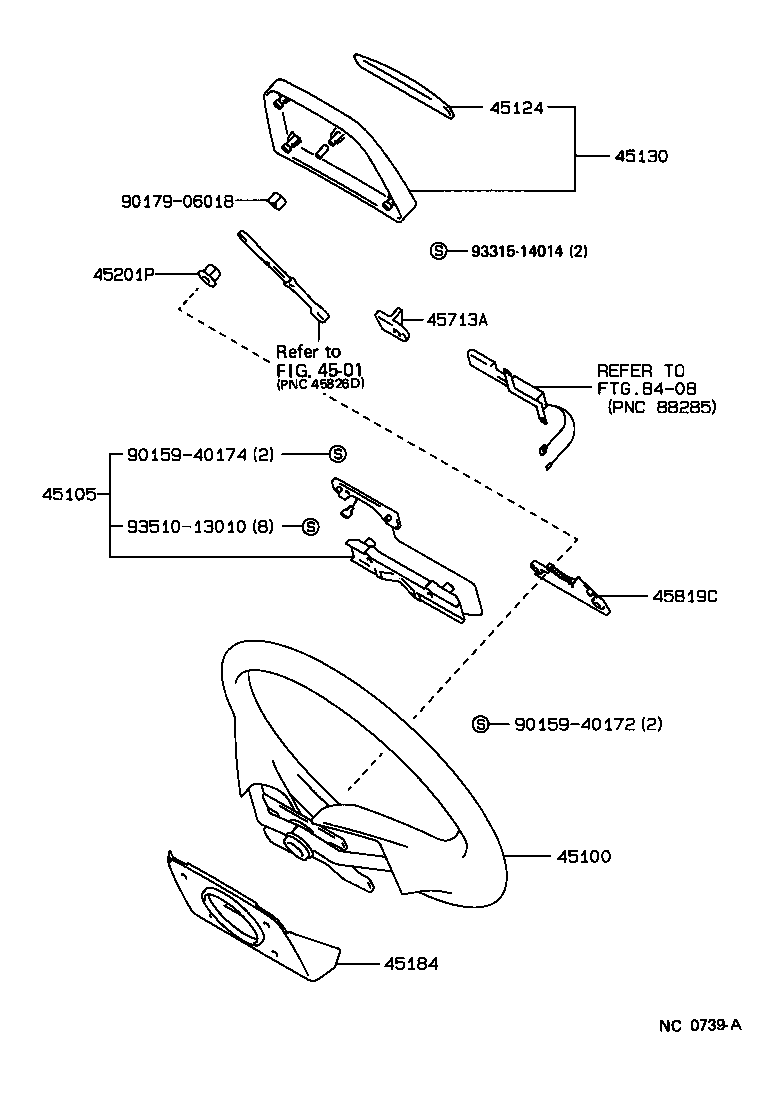

(8908- )
2-SPOKE,ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3029004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036102 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-3001004 |
GS13#,LS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45124-3003002 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45124-3003004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3024002 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 45130-3028004 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-30010 |
GS130,131,MS13#..(DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL)..(HTWC,LPG,SPC,TWC) |
1 | ||
| 45713-30030 |
MS137,UZS131..4HC;GS130,131,JZS13#,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| Common parts | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 90179-06018 | ||||
| 93315-14014 | ||||
| 93510-13010 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8408 | ||||

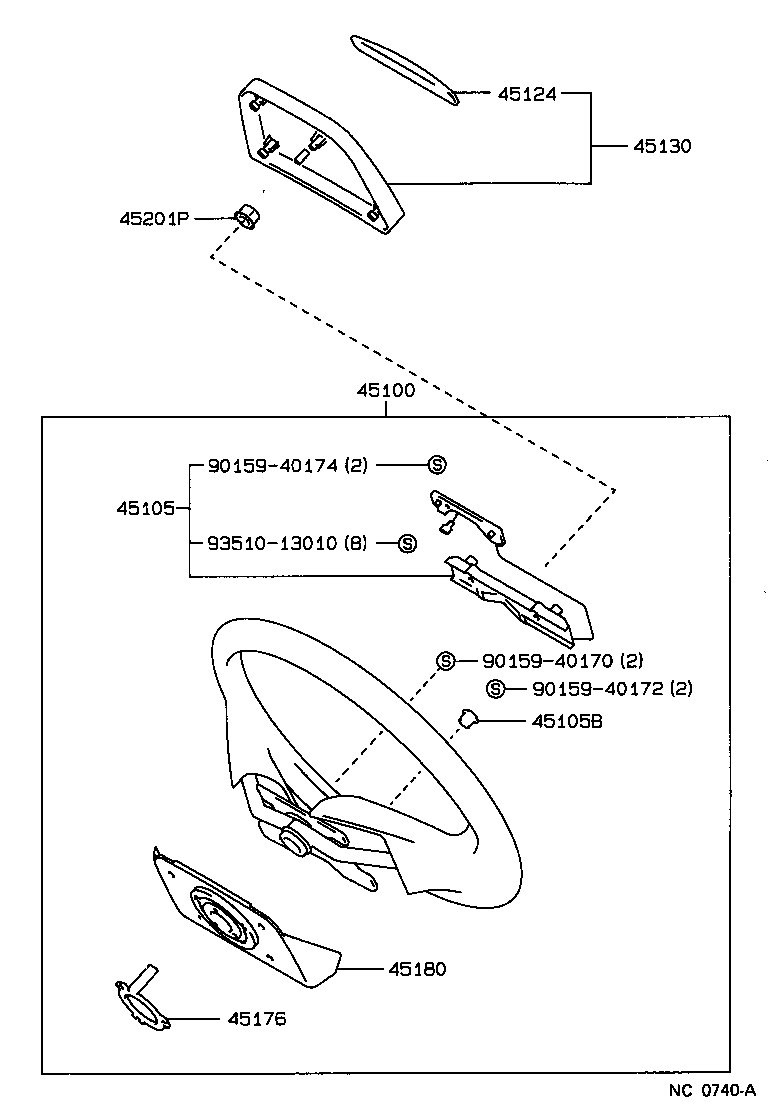

(8908- )
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3029002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3029004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3036102 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,MAROON,MAROON,TRIM3# |
1 | ||
| 45100-3036104 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) 2-ｽﾎﾟ-ｸ,BLUE,BLUE,TRIM8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-30100 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04012 |
GS131,LS131..SPE;GS131,JZS131,MS13#,UZS131..4HC;GS130,136,LS130,136,YS130..DLX,SALEX,SDX |
2 | ||
| 45124 - ORNAMENT, STEERING WHEEL MARK | ||||
| 45124-3001004 |
GS13#,LS13#,MS13#,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45124-3003002 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45124-3003004 |
MS137,UZS131..4HC;GS13#,JZS13#,LS13#,MS135,YS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3024002 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM;GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) MAROON,TRIM3# |
1 | ||
| 45130-3024004 |
GS131..EFI,TWC;MS130..4H..SDX;GS131..4FC..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);LS130,MS135..(4FC,4H,5F)..(DLX,ROY,SALEX,SDX,SPE,SSL) BLUE,TRIM8# |
1 | ||
| 45130-3028004 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL BLUE,TRIM8# |
1 | ||
| 45130-3028002 |
GS130..ATM..SDX;MS137,UZS131..4HC;GS130..SED..MTM..SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,ROY,SALEX)..(HTWC,SPC);GS131,JZS13#,LS130,131,MS135..DLX,ROY,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-30060 |
MS130..4H..SDX;GS131..SSL..SPC;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,ROY,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWC) |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3002002 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) MAROON,TRIM3# |
1 | ||
| 45180-3002004 |
MS130..4H..SDX;GS130,MS130..ATM..(EFI,LPG);GS130..(HT,SED)..MTM..(DLX,SAL,SALEX,SDX,SPE);GS131,LS130..(DLX,SALEX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE) BLUE,TRIM8# |
1 | ||
| 45180-3004002 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) MAROON,TRIM3# |
1 | ||
| 45180-3004004 |
GS131..4HC..HTWC;GS130..SED..MTM..SDX;LS130..DLX,SALEX,SDX;GS130..4HC..DLX..TWLPG;GS130..(DLX,SALEX)..HTWC;GS130,131,LS131..ATM..(SDX,SPE) BLUE,TRIM8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LS130..DLX,STD;GS130..4FC..TWLPG;GS136,LS136,MS130,YS130;GS130..WG..(4FC,5F)..SDX;GS130..(4FC,5F)..(DLX,STD);GS130,131,JZS131,MS135,137,UZS131..4H,4HC |
1 | ||
| Common parts | ||||
| 90159-40170 | ||||
| 90159-40172 | ||||
| 90159-40174 | ||||
| 93510-13010 | ||||
(9110-9704)
ｱﾘ(ｷｶｲｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60085 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 5806 | ||||
