GS130-AESFD (1989)
Toyota Crown

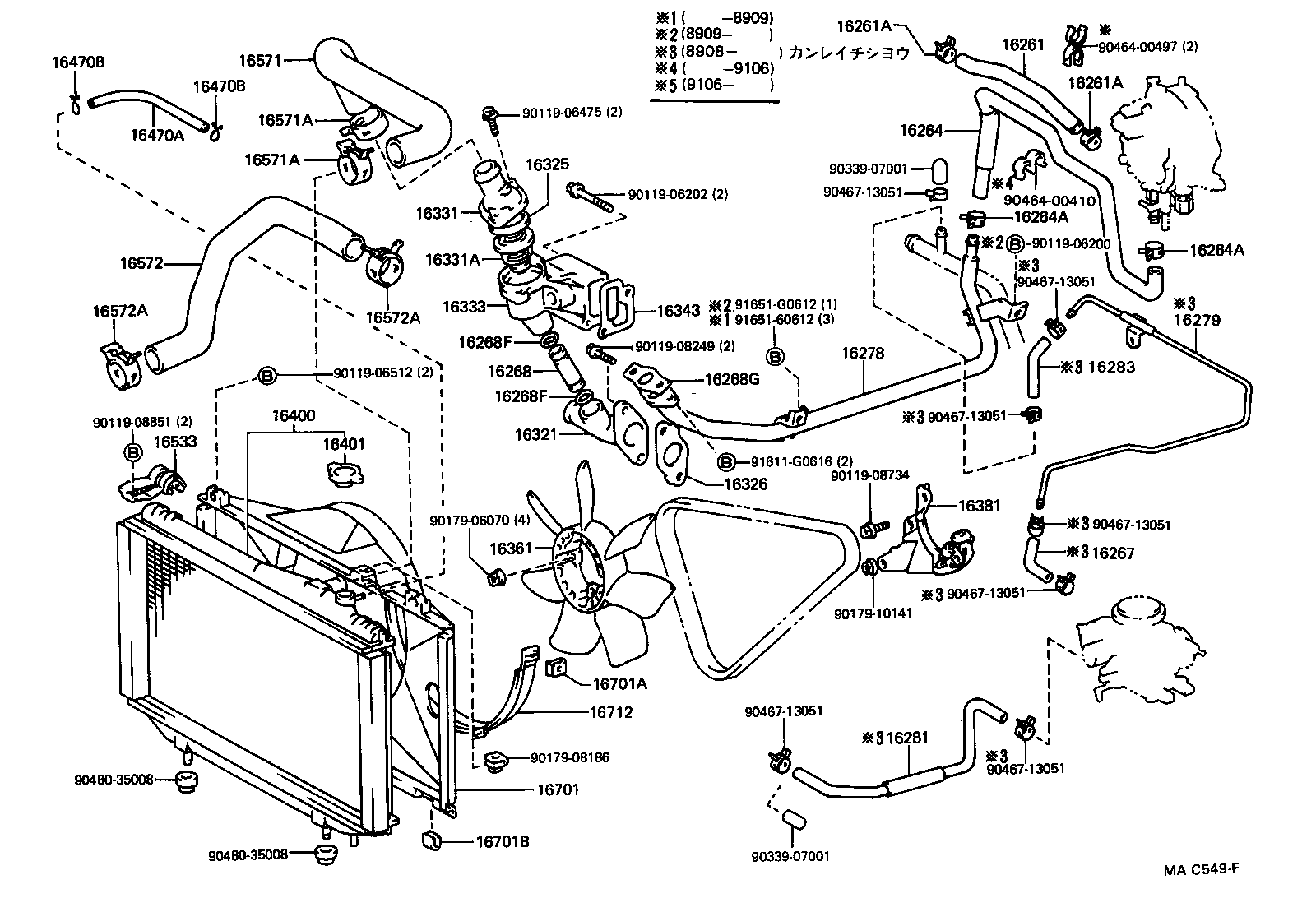

ILLUST NO. 1 OF 2(8908- )1GGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70060 |
1GGP..GS130 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
1GGP..GS130 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
1GGP..GS130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-70070 |
1GGP..GS130 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-23001 |
1GGP..GS130 |
1 | ||
| 90467-22004 |
1GGP..GS130 |
1 | ||
| 90467-23001 |
1GGP..GS130 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-23001 |
1GGP..GS130 |
1 | ||
| 90467-22004 |
1GGP..GS130 |
1 | ||
| 90467-23001 |
1GGP..GS130 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-88302 |
1GGP..GS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88301 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16268-88302 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGP,1GGE..GS13# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24018 |
1GFE,1GGP,1GGE..GS13# |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16347-88300 |
1GGP..GS130 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70070 |
1GGP..GS130 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-70060 |
1GGP..GS130 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-70040 |
1GGP..GS130 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-70020 |
1GGP..GS130 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88301 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1GE,1GG#..GS13# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70011 |
1GE,1GGP,1GGE..GS13# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88300 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03063 |
1GG#..GS130,131 *WAX 88−100 |
1 | ||
| 90916-03095 |
1GGP..GS130 *WAX 82−95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-70020 |
1GGP..GS130 |
1 | ||
| 16333-70021 |
1GGP..GS130 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88300 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16361 - FAN | ||||
| 16361-88300 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88301 |
1GGP..GS130 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70420 |
1GGP..GS130..ATM |
1 | ||
| 16400-70410 |
1GGP..GS130..4H |
1 | ||
| 16400-70421 |
1GGP..GS130..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1GGP..GS130 |
1 | ||
| 16401-63010 |
1GE,1GFE,1GG#..GS130,131 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85343-30270 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 85319-30280 |
1GFE,1GG#..GS13# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 90467-11085 |
1GFE,1GG#..GS13# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| 90467-11085 |
1GFE,1GG#..GS13# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70040 |
1GGP..GS130 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70160 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GE,1GG#..GS13# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1GE,1GG#..GS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GG#..GS130,131 OUTLET SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1GE,1GG#..GS13# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1GE,1GG#..GS13# OUTLET SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GG#..GS130,131 OUTLET SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70130 |
1GGP,1GGE..GS130,131 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GE,1GG#..GS13# OUTLET SIDE |
1 | ||
| 90467-37001 |
1GE,1GG#..GS13# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1GG#..GS130,131 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GGP..GS130..SED |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1GE,1GG#..GS13# OUTLET SIDE |
1 | ||
| 90467-37001 |
1GE,1GG#..GS13# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1GG#..GS130,131 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37002 |
1GFE,1GGP..GS130..SED |
2 | ||
| 90467-37002 |
1GFE,1GG#..GS13# |
2 | ||
| 90467-37006 |
1GFE,1GG#..GS13# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70120 |
1GGP..GS130 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1GE,1GFE,1GG#..GS13# |
2 | ||
| 90468-06013 |
1GFE,1GG#..GS13# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1GE,1GFE,1GG#..GS13# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70050 |
1GE,1GFE,1GG#..GS13# |
1 | ||
| Common parts | ||||
| 90119-06200 | ||||
| 90119-06202 | ||||
| 90119-06475 | ||||
| 90119-06512 | ||||
| 90119-08249 | ||||
| 90119-08734 | ||||
| 90119-08851 | ||||
| 90179-06070 | ||||
| 90179-08186 | ||||
| 90179-10141 | ||||
| 90339-07001 | ||||
| 90464-00410 | ||||
| 90464-00497 | ||||
| 90467-13051 | ||||
| 90480-35008 | ||||
| 91611-G0616 | ||||
| 91651-60612 | ||||
| 91651-G0612 | ||||
