GS130-AESFD (1991)
Toyota Crown

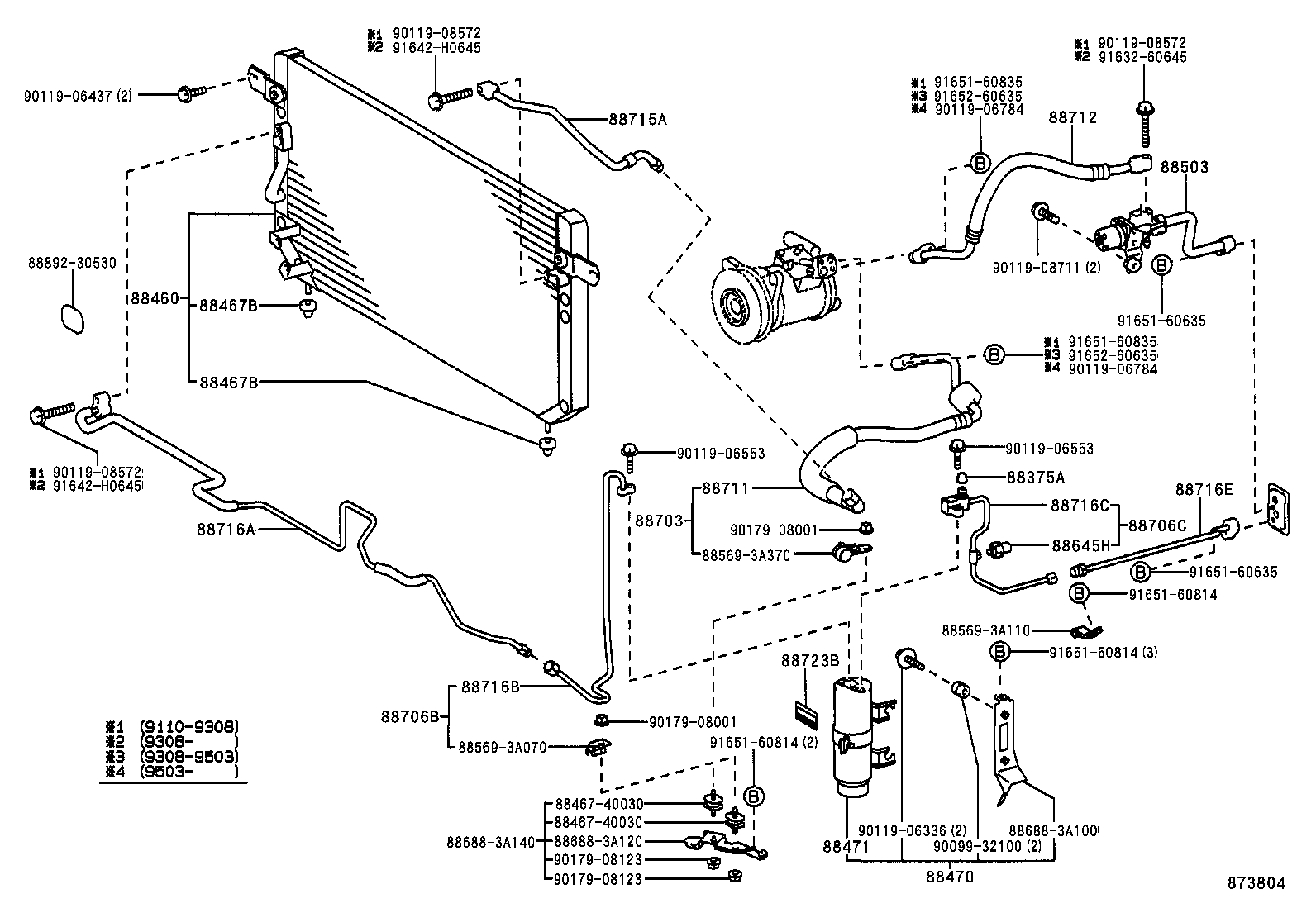

ILLUST NO. 1 OF 3(9112-9512)TWLPG
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88375-24010 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30630 |
GS136,YS130..SDX,STD;GS130,131,JZS13#,LS130,131 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14050 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30520 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88470-30490 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30350 |
GS13#,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 88471-30370 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30491 |
GS130..TWLPG |
1 | ||
| 88503-30660 |
GS130..TWLPG |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88645-22080 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88645-30340 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30370 |
GS130..TWLPG |
1 | ||
| 88703-30560 |
GS130..TWLPG |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-30250 |
GS130,131..ROY,SALEX,SDX |
1 | ||
| 88706-30250 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88706-30670 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88706-30260 |
GS130,131..ROY,SALEX,SDX PLANT NO.A21-A26 |
1 | ||
| 88706-30260 |
GS13#,YS130 |
1 | ||
| 88706-30310 |
GS130,131..ROY,SALEX,SDX PLANT NO.M21-M22 |
1 | ||
| 88706-30660 |
GS13#,YS130 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30750 |
GS130..TWLPG |
1 | ||
| 88711-30751 |
GS130..SDX..TWLPG;GS130,136..ROY,STD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A440 |
GS130..TWLPG |
1 | ||
| 88712-3A190 |
GS130..TWLPG |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30530 |
GS13#,JZS13# |
1 | ||
| 88715-30500 |
GS136..SDX,STD;GS130,131,JZS13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A550 |
GS136..SDX;GS130,131,JZS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 88726-3A780 |
GS136..SDX;GS130,131,JZS13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3A100 |
GS13# |
1 | ||
| 88726-3A100 |
GS13#,JZS13#,YS130 |
1 | ||
| 88726-3A100 |
GS13#,YS130 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-3A110 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX |
1 | ||
| 88726-3A110 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX PLANT NO.A21-A26 |
1 | ||
| 88726-3A250 |
GS130,131,JZS13#..ROY,ROYG,SALEX,SDX PLANT NO.M21-M22 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-3A070 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88726-3A050 |
GS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX) ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726-3A070 |
GS13#,JZS130,131,LS130,131..DLX,SALEX,SDX,STD |
1 | ||
| 88726-3A720 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-30010 |
GS13#,JZS130,131,LS130,131..DLX,SALEX,SDX,STD |
1 | ||
| 88723-20030 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88723-30010 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88723-50140 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88569-3A070 | ||||
| 88569-3A110 | ||||
| 88569-3A370 | ||||
| 88688-3A100 | ||||
| 88688-3A120 | ||||
| 88688-3A140 | ||||
| 88892-30530 | ||||
| 90099-32100 | ||||
| 90119-06336 | ||||
| 90119-06437 | ||||
| 90119-06553 | ||||
| 90119-06784 | ||||
| 90119-08572 | ||||
| 90119-08711 | ||||
| 90179-08001 | ||||
| 90179-08123 | ||||
| 91632-60645 | ||||
| 91642-H0645 | ||||
| 91651-60635 | ||||
| 91651-60814 | ||||
| 91651-60835 | ||||
| 91652-60635 | ||||

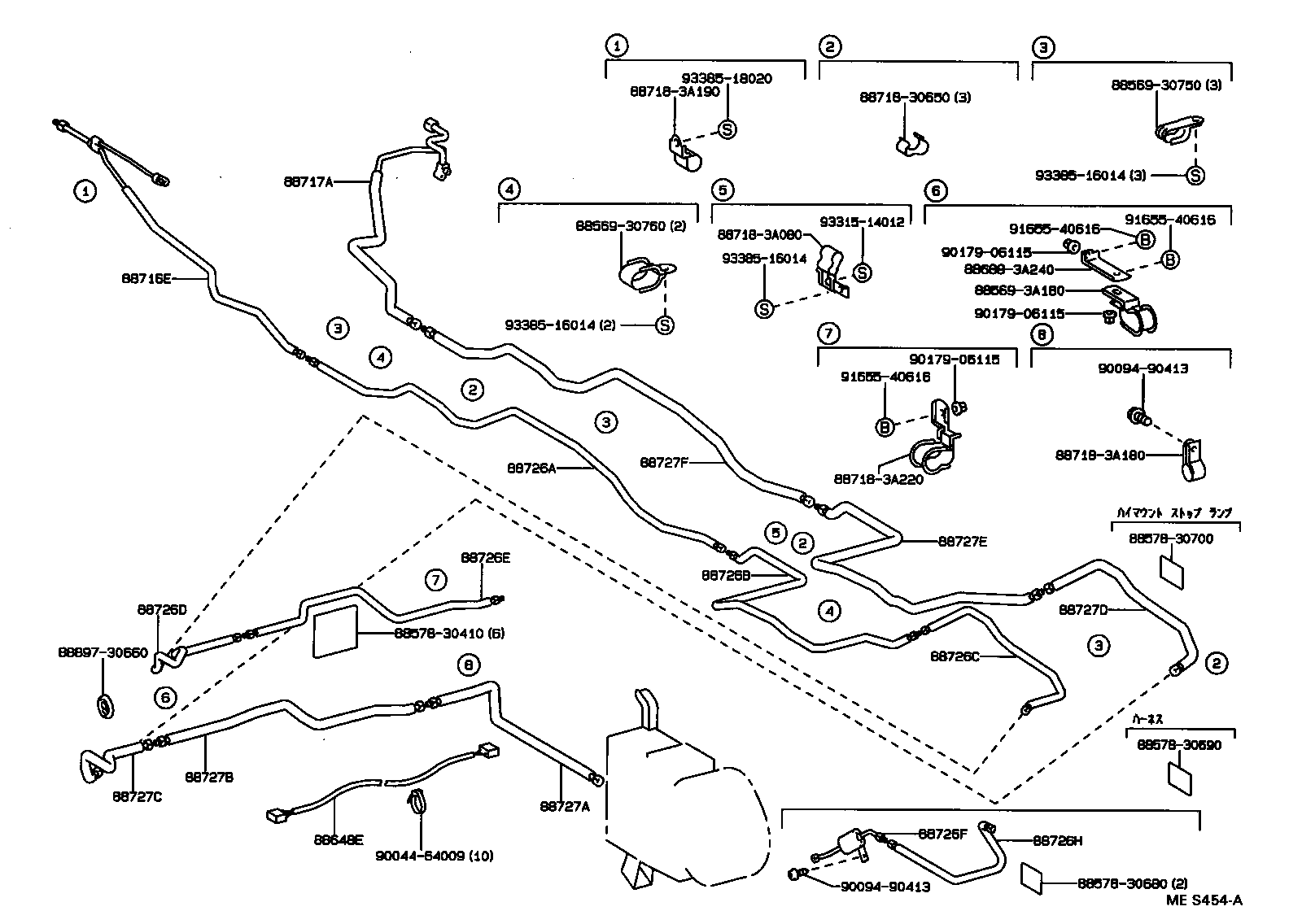

ILLUST NO. 2 OF 3(9112-9512)TWLPG
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88648E - WIRING, COOLER | ||||
| 88648-30860 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-3A070 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88726-3A050 |
GS130..SED..(ROY,SALEX,SDX);GS131,JZS131,LS130,131..SED..(SALEX,SDX) ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726-3A070 |
GS13#,JZS130,131,LS130,131..DLX,SALEX,SDX,STD |
1 | ||
| 88726-3A720 |
JZS130,131..SALEX;GS13#,LS130,131,YS130 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30860 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A140 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-3A170 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-3A580 |
GS130..SDX..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88726-3A570 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-3A360 |
GS130..(4H,4HC)..TWLPG ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726-3A530 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88706-30520 |
GS130..TWLPG |
1 | ||
| 88726H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88726-3A520 |
GS130..TWLPG |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-3A280 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727-30880 |
GS130..(4H,4HC)..TWLPG ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88727-3A010 |
GS130..(4H,4HC)..TWLPG ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727-3A290 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88727-3A020 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88727-3A300 |
GS130..SDX..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727-3A580 |
GS130..SDX..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88727-30820 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88727F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88727-30790 |
GS130..(4H,4HC)..TWLPG ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| Common parts | ||||
| 88569-30750 | ||||
| 88569-30760 | ||||
| 88569-3A180 | ||||
| 88578-30410 | ||||
| 88578-30680 | ||||
| 88578-30690 | ||||
| 88578-30700 | ||||
| 88688-3A240 | ||||
| 88718-30650 | ||||
| 88718-3A080 | ||||
| 88718-3A180 | ||||
| 88718-3A190 | ||||
| 88718-3A220 | ||||
| 88897-30660 | ||||
| 90044-64009 | ||||
| 90094-90413 | ||||
| 90179-06115 | ||||
| 91655-40616 | ||||
| 93315-14012 | ||||
| 93385-16014 | ||||
| 93385-18020 | ||||
