GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9112-9512)TWLPG

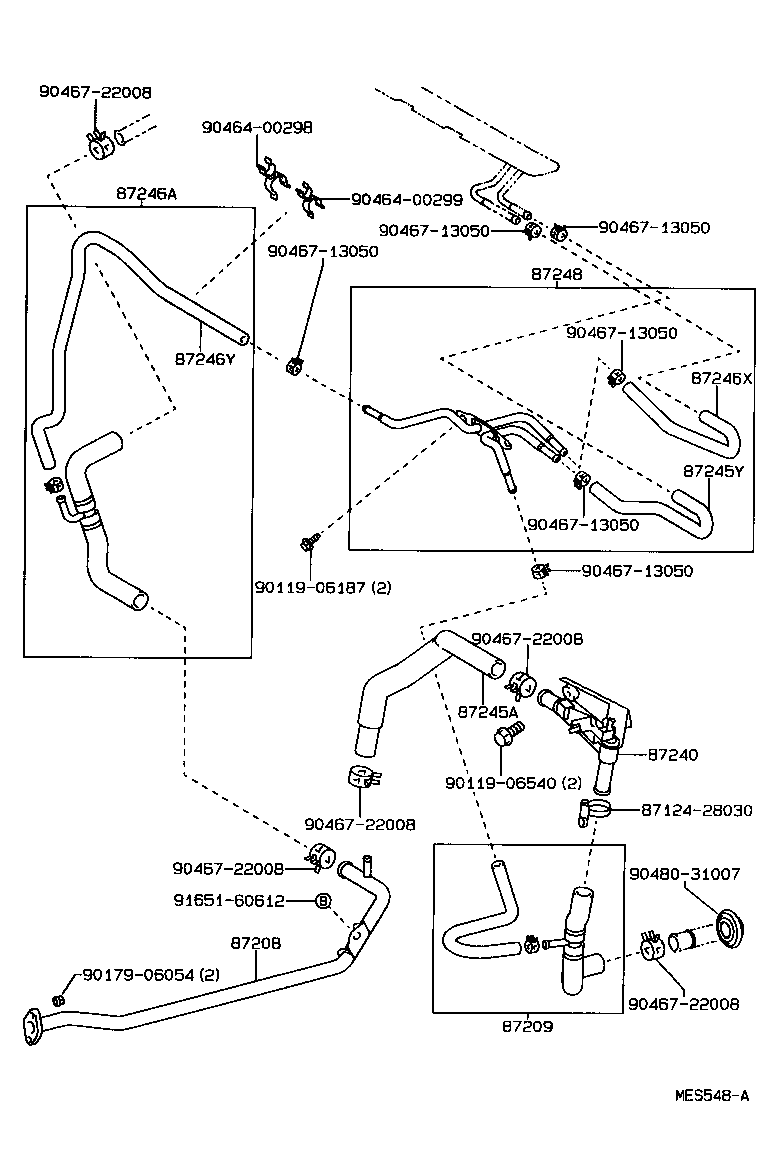

Click highlighted areas on diagram

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

diagram 8712428030 87208 87209 87240 87245A 87245Y 87246A 87246X 87246Y 87248 9011906187 9011906540 9017906054 9046400298 9046400299 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046722008 9046722008 9046722008 9046722008 9046722008 9048031007 9165160612
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22272

GS130..TWLPG

 1
87208-30050

GS130..TWLPG

 1
87208-22260

GS13#

 1
87208-30051

GS130..TWLPG

 1
87209 - HOSE SUB-ASSY, WATER
87209-30360

GS130..TWLPG

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87240 - VALVE ASSY, HEATER WATER
87240-30520

GS13#..DLX,ROY,SALEX,SDX

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A420

GS130..TWLPG

 1
87245Y - HOSE, HEATER WATER
87245-3A650

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30390

GS130..TWLPG

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A270

GS130,LS13#..DSL,TDE,TDEC,TWLPG

 1
87246X - HOSE, HEATER WATER
87245-3A640

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246Y - HOSE, HEATER WATER
87245-3A660

GS13#,JZS13#

 1
87245-3A660

GS13#

 1
87248 - PIPE SUB-ASSY, WATER
87248-30370

GS130..TWLPG

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
87124-28030
90119-06187
90119-06540
90179-06054
90464-00298
90464-00299
90467-13050
90467-22008
90480-31007
91651-60612
