GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9110-9308)GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX ; (9308-9609)JZS130 ; (9308-

Click highlighted areas on diagram

ﾌﾟﾂｼﾕｼｷﾋ-ﾀ ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ

diagram 55900 55900B 55902B 88650M 9015350010 9356755014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-30631

GS130,LS130..SDX

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ)

 1
55900-30641

GS130,LS130..SDX

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
Common parts
90153-50010
93567-55014

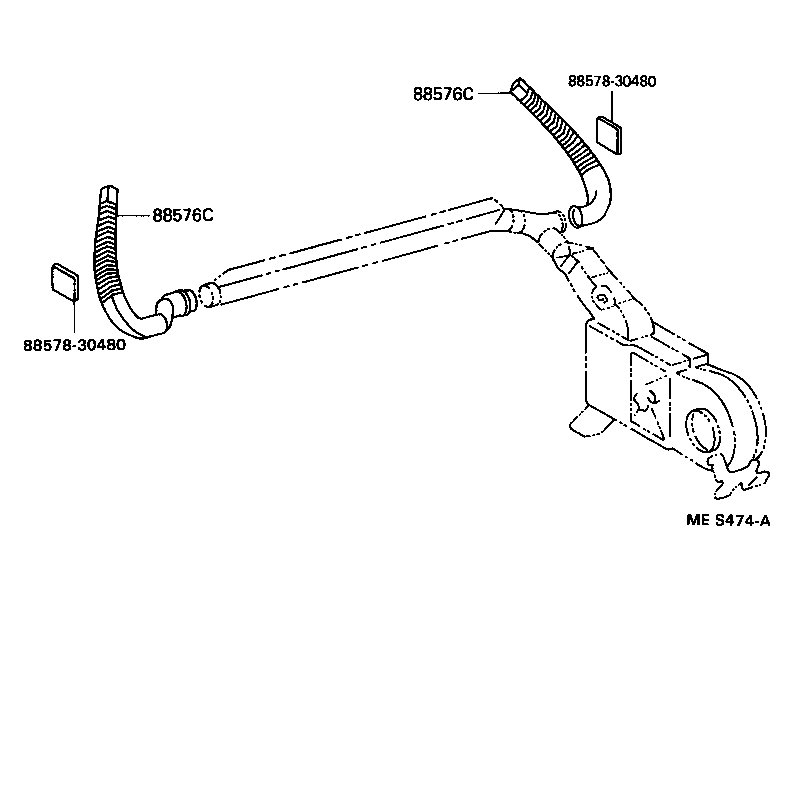

ILLUST NO. 4 OF 4(9112-9512)TWLPG

Click highlighted areas on diagram

ﾘﾔ ｴｱ ﾀﾞｸﾄ

diagram 88576C 88576C 8857830480 8857830480
Part # Description Qty Price
88576C - DUCT, COOLER AIR, NO.1
88576-30870

GS130..(4H,4HC)..TWLPG

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),右側

 1
88576-3A290

GS130..(4H,4HC)..TWLPG

ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),右側

 1
88576-3A300

GS130..(4H,4HC)..TWLPG

ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),左側

 1
88576-30880

GS130..(4H,4HC)..TWLPG

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),左側

 1
88576C - DUCT, COOLER AIR, NO.1
88576-30870

GS130..(4H,4HC)..TWLPG

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),右側

 1
88576-3A290

GS130..(4H,4HC)..TWLPG

ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),右側

 1
88576-3A300

GS130..(4H,4HC)..TWLPG

ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),左側

 1
88576-30880

GS130..(4H,4HC)..TWLPG

ﾌﾞﾗｲﾀﾞﾙ ﾊﾟﾂｹ-ｼﾞ A & ｱﾘ(ﾘﾔ ｴｱｺﾝﾃﾞｲｼﾖﾅ),左側

 1
Common parts
88578-30480
