GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

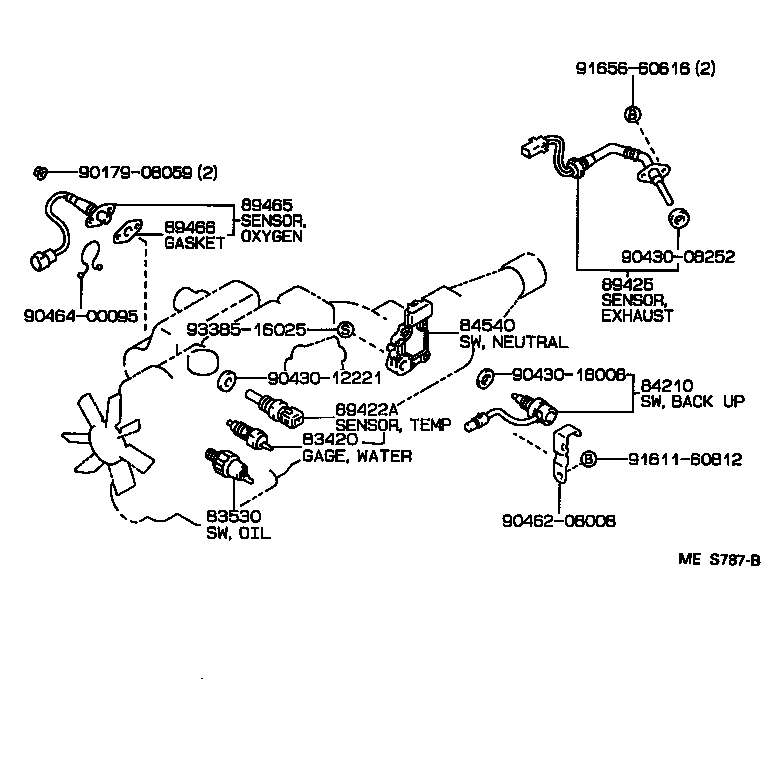

ILLUST NO. 1 OF 8(9112- )TWLPG

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

diagram 83420 83530 84210 84540 89422A 89425 89465 89466 9017908059 9043008252 9043012221 9043018008 9046208008 9046400095 9161160812 9165660616 9338516025
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

GS130,YS130..LPEFI,TWLPG

 1
83420-20020

GS131,JZS130,131;GS130,136,JZS133,135,YS130..DLX,DLXA,ROY,ROYG,SDX,STD

 1
83420-20020

GS13#,JZS13#,LS13#,YS130

 1
83420-20020

GS13#,JZS13#,LS13#

 1
83420-20020

GS130..TWLPG

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090

GS13#,JZS13#

DENSO

 1
83530-30051

GS13#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-30290

GS13#,LS136,YS130..ATM

東海理化

 1
84540-30300

GS13#,LS136,YS130..ATM

MATSUSHITA

 1
89422A - SENSOR, WATER TEMPERATURE
89422-20010

GS130..TWLPG

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-39405

GS13#,JZS13#

 1
89465 - SENSOR, OXYGEN
89465-80003

GS130..TWLPG

 1
89465-39725

GS130..TWLPG

 1
89465-39585

GS130..TWLPG

 1
89466 - GASKET, OXYGEN SENSOR
89466-20020

GS130,JZS130,131,YS130..LPEFI,TWC,TWLPG

 1
Common parts
90179-08059
90430-08252
90430-12221
90430-18008
90462-08008
90464-00095
91611-60812
91656-60616
93385-16025
