GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9112- )LPEFI,TWLPG

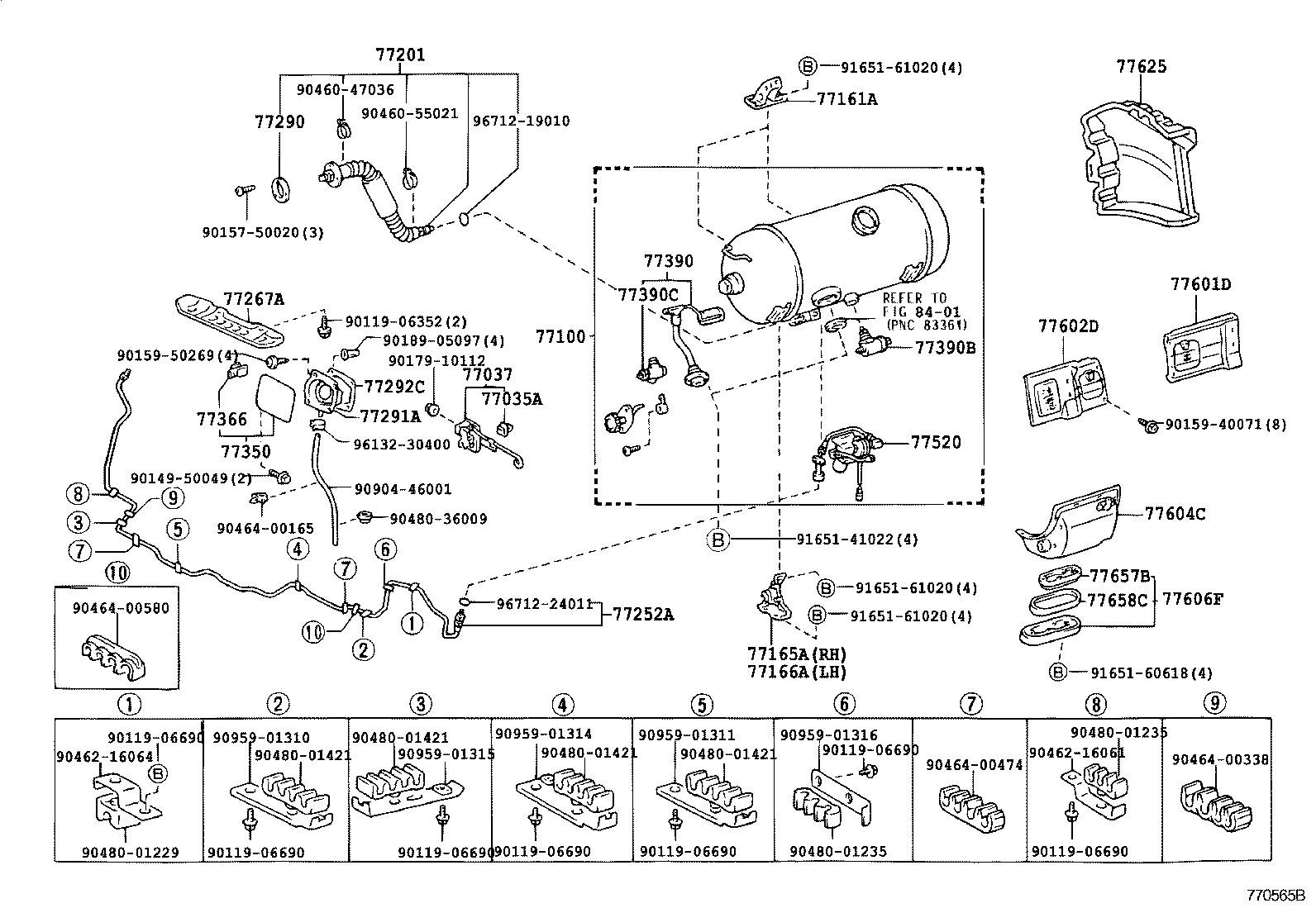

Click highlighted areas on diagram

diagram 77035A 77037 77100 77161A 77165A 77166A 77201 77252A 77267A 77290 77291A 77292C 77350 77366 77390 77390B 77390C 77520 77601D 77602D 77604C 77606F 77625 77657B 77658C 8401 9011906352 9011906690 9011906690 9011906690 9011906690 9011906690 9011906690 9011906690 9014950049 9015750020 9015940071 9015950269 9017910112 9018905097 9046047036 9046055021 9046216061 9046216064 9046400165 9046400338 9046400474 9046400580 9048001229 9048001235 9048001235 9048001421 9048001421 9048001421 9048001421 9048036009 9090446001 9095901310 9095901311 9095901314 9095901315 9095901316 9165141022 9165160618 9165161020 9165161020 9165161020 9613230400 9671219010 9671224011
Part # Description Qty Price
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
69749-20010

GS130,YS130..LPEFI,TWLPG

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-30030

GS130,YS130..LPEFI,TWLPG

 1
77100 - TANK ASSY, FUEL
77001-30400

GS130,YS130..LPEFI,TWLPG

 1
77161A - BRACKET, FUEL TANK MOUNTING, FRONT
77161-30060

GS130,YS130..LPEFI,TWLPG

 2
77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH
77165-30040

GS130,YS130..LPEFI,TWLPG

 1
77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH
77166-30030

GS130,YS130..LPEFI,TWLPG

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-30220

GS130,YS130..LPEFI,TWLPG

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-30331

GS130,YS130..LPEFI,TWLPG

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-30050

GS13#,JZS13#,LS13#

 1
77267-30050

GS13#,JZS13#,LS13#,YS130

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-30050

GS130,131,JZS131,133,135,LS130,131..SED

 1
77291-30050

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-30040

GS130,131,JZS131,133,135,LS130,131..SED

 1
77291-30040

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2
77292-30030

GS130,131,JZS131,133,135,LS130,131..SED

 1
77292-30030

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-30230

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
77350-30230

GS130,131,JZS131,133,135,LS130,131..SED

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-35010

GS130,131,JZS131,133,135,LS130,131,YS130..SED

 1
77366-35010

GS130,131,JZS131,133,135,LS130,131..SED

 1
77390 - VALVE ASSY, FUEL TANK INLET
77390-30050

GS130,YS130..LPEFI,TWLPG

 1
77390B - VALVE, FUEL TANK OUTLET
90977-01025

GS130,YS130..LPEFI,TWLPG

 1
77390C - VALVE, FUEL TANK INLET
90977-01017

GS130,YS130..LPEFI,TWLPG

 1
77520 - VALVE ASSY, SOLENOID LPG EMERGENCY
77203-30100

GS130,YS130..LPEFI,TWLPG

 1
77601D - COVER SUB-ASSY, FUEL TANK, RH
77601-30130

GS130,YS130..LPEFI,TWLPG

 1
77602D - COVER SUB-ASSY, FUEL TANK, LH
77602-30060

GS130,YS130..LPEFI,TWLPG

 1
77604C - COVER SUB-ASSY, FUEL TANK VALVE
77604-30080

GS130,YS130..LPEFI,TWLPG

 1
77606F - CASE SUB-ASSY, FUEL TANK COVER VENT
77606-30110

GS130,YS130..LPEFI,TWLPG

 1
77625 - BOX, FUEL TANK CASE
77625-30030

GS130,YS130..LPEFI,TWLPG

 1
77657B - SEAL, FUEL TANK COVER VENT CASE, UPPER
77657-30030

GS130,YS130..LPEFI,TWLPG

 1
77658C - SEAL, FUEL TANK COVER VENT CASE, LOWER
77658-30040

GS130,YS130..LPEFI,TWLPG

 1
Common parts
90119-06352
90119-06690
90149-50049
90157-50020
90159-40071
90159-50269
90179-10112
90189-05097
90460-47036
90460-55021
90462-16061
90462-16064
90464-00165
90464-00338
90464-00474
90464-00580
90480-01229
90480-01235
90480-01421
90480-36009
90904-46001
90959-01310
90959-01311
90959-01314
90959-01315
90959-01316
91651-41022
91651-60618
91651-61020
96132-30400
96712-19010
96712-24011
Linked diagrams
8401
