GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

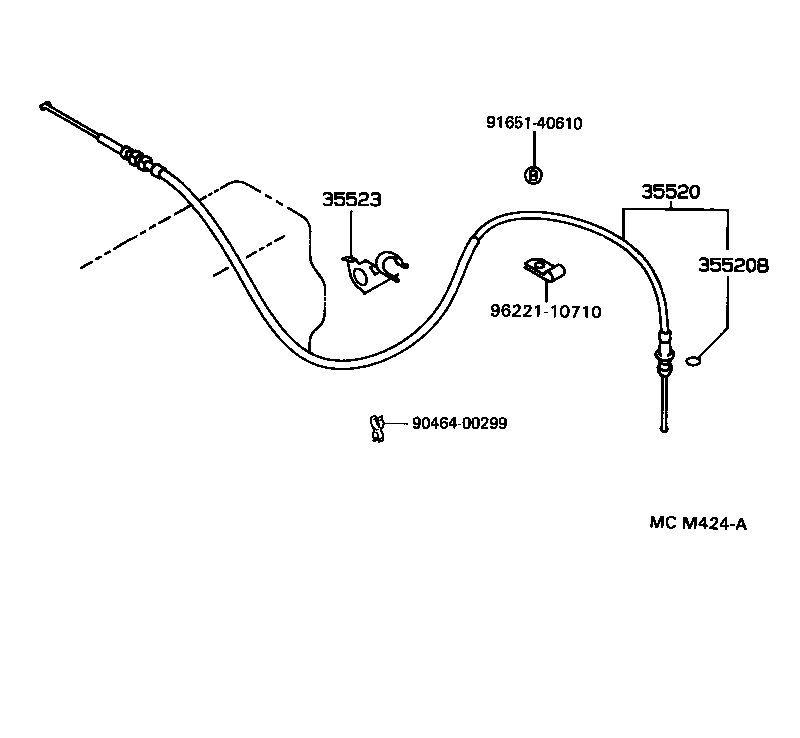

ILLUST NO. 2 OF 2(9112- )ATM..TWLPG

Click highlighted areas on diagram

diagram 35520 35520B 35523 9046400299 9165140610 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-30180

GS130..ATM..TWLPG

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

GS13#,JZS13#,LS13#..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-30061

GS130..ATM..TWLPG

 1
Common parts
90464-00299
91651-40610
96221-10710
