GS130-AESFD (1991)
Toyota Crown
Production
Dec 1991
-
Dec 1995
Engine
1GGP
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

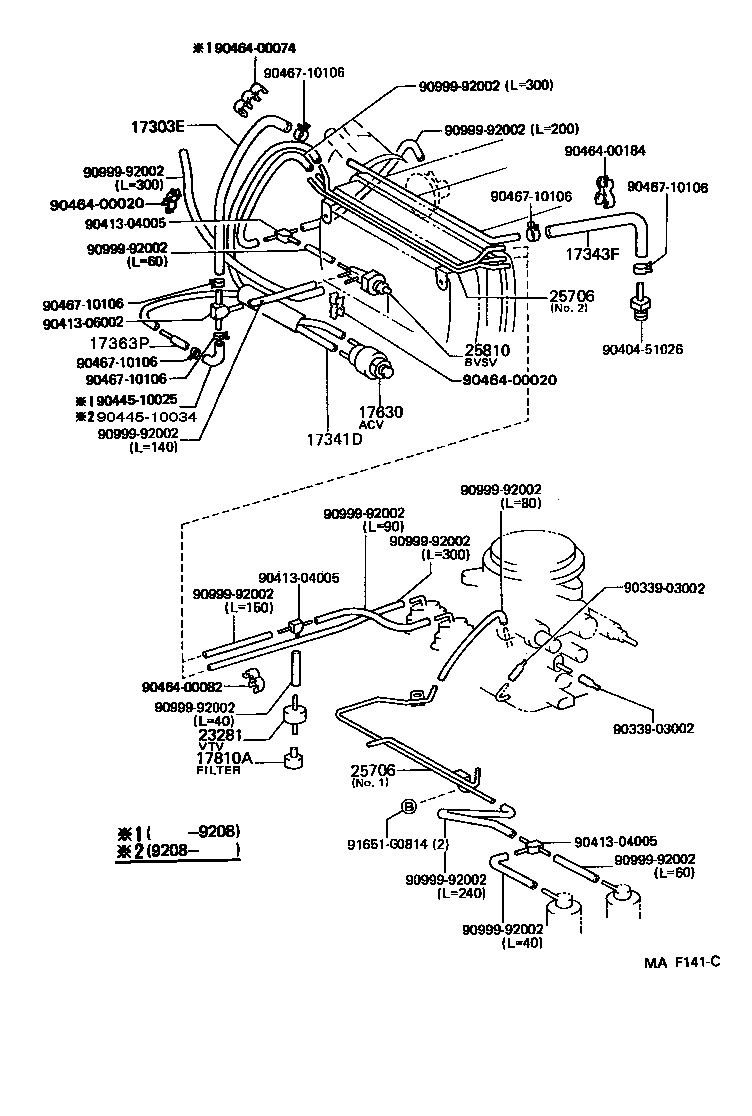

(9112-9412)1GGP..4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-10021 |
1GGP..GS130..4H |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70230 |
1GGP..GS130..ATM |
1 | ||
| 17341-70231 |
1GGP..GS130..ATM |
1 | ||
| 17341-70231 |
1GGP..GS130 |
1 | ||
| 17341-70220 |
1GGP..GS130..4H |
1 | ||
| 17341-70221 |
1GGP..GS130..4H |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-70070 |
1GGP..GS130 |
1 | ||
| 17363P - TUBE, AIR, NO.3 | ||||
| 17363-70010 |
1GGP..GS130 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
1GGP..GS130 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
1GGP..GS130 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01098 |
1GGP..GS130 |
1 | ||
| 90925-01041 |
1GGP..GS130 |
1 | ||
| 90925-01071 |
1GGP..GS130 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 17303-70070 |
1GGP..GS130 NO.2 |
1 | ||
| 17303-70060 |
1GGP..GS130 NO.1 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 17303-70070 |
1GGP..GS130 NO.2 |
1 | ||
| 17303-70060 |
1GGP..GS130 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
1GGP..GS130 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90404-51026 | ||||
| 90413-04005 | ||||
| 90413-06002 | ||||
| 90445-10025 | ||||
| 90445-10034 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90467-10106 | ||||
| 90999-92002 | ||||
| 91651-G0814 | ||||

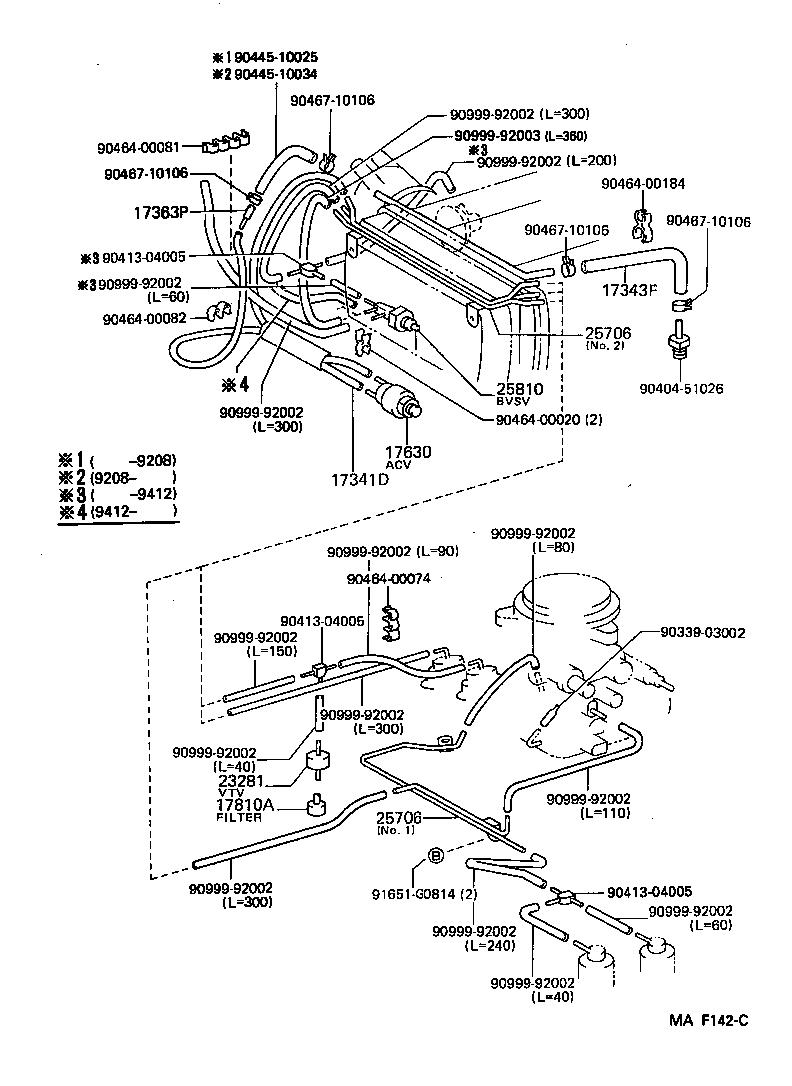

(9112-9512)1GGP..ATM ; (9412-9512)1GGP..4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70230 |
1GGP..GS130..ATM |
1 | ||
| 17341-70231 |
1GGP..GS130..ATM |
1 | ||
| 17341-70231 |
1GGP..GS130 |
1 | ||
| 17341-70220 |
1GGP..GS130..4H |
1 | ||
| 17341-70221 |
1GGP..GS130..4H |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-70070 |
1GGP..GS130 |
1 | ||
| 17363P - TUBE, AIR, NO.3 | ||||
| 17363-70010 |
1GGP..GS130 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
1GGP..GS130 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
1GGP..GS130 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01098 |
1GGP..GS130 |
1 | ||
| 90925-01041 |
1GGP..GS130 |
1 | ||
| 90925-01071 |
1GGP..GS130 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 17303-70070 |
1GGP..GS130 NO.2 |
1 | ||
| 17303-70060 |
1GGP..GS130 NO.1 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 17303-70070 |
1GGP..GS130 NO.2 |
1 | ||
| 17303-70060 |
1GGP..GS130 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
1GGP..GS130 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90404-51026 | ||||
| 90413-04005 | ||||
| 90445-10025 | ||||
| 90445-10034 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90467-10106 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-G0814 | ||||
