GS130-AESFD (1991)
Toyota Crown
Production
Dec 1991
-
Dec 1995
Engine
1GGP
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9112-9512)1GGP

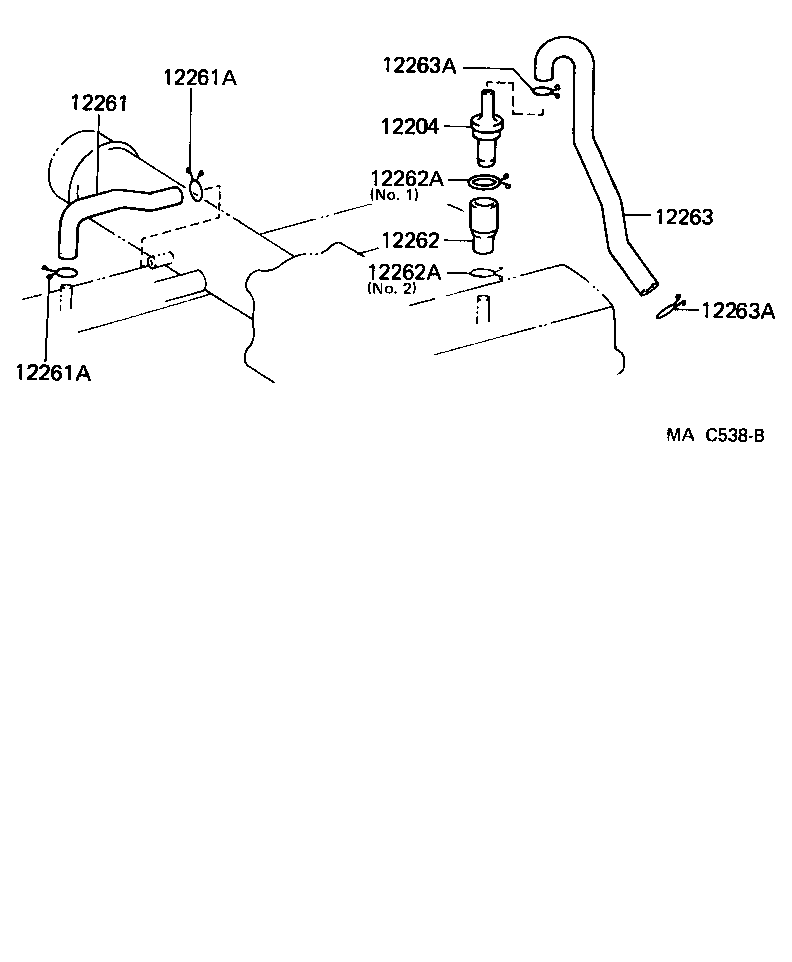

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-70010 |
1GGP..GS130 |
1 | ||
| 12204-15022 |
1GGP..GS130 |
1 | ||
| 12204-70011 |
1GGP..GS130 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-70051 |
1GGP..GS130 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15019 |
1GGP..GS130 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15019 |
1GGP..GS130 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-70040 |
1GGP..GS130 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18003 |
1GGP..GS130 NO.1 |
1 | ||
| 90467-17012 |
1GGP..GS130 NO.1 |
1 | ||
| 90467-14017 |
1GGP..GS130 NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18003 |
1GGP..GS130 NO.1 |
1 | ||
| 90467-17012 |
1GGP..GS130 NO.1 |
1 | ||
| 90467-14017 |
1GGP..GS130 NO.2 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-70010 |
1GGP..GS130 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
1GGP..GS130 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
1GGP..GS130 |
2 | ||
