GS130-AESFD (1991)

Toyota Crown

Production Dec 1991 - Dec 1995
Engine 1GGP
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9112-9512)1GGP

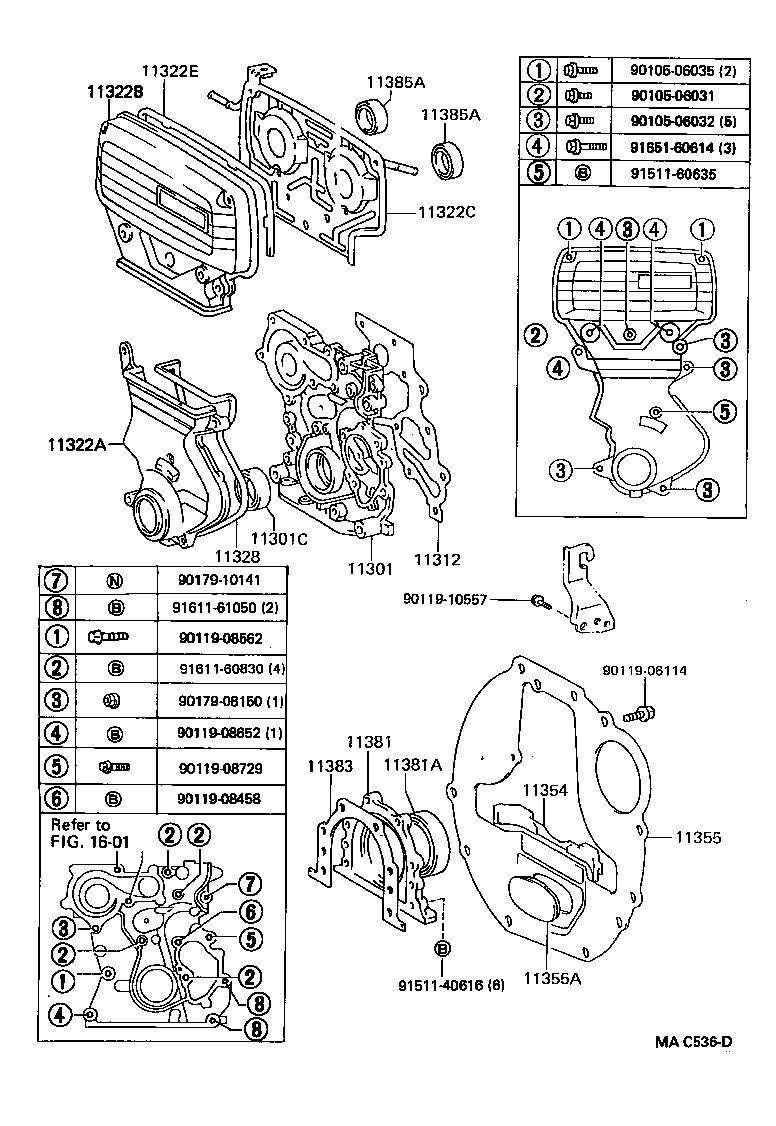

Click highlighted areas on diagram

diagram 11301 11301C 11312 11322A 11322B 11322C 11322E 11328 11354 11355 11355A 11381 11381A 11383 11385A 11385A 1601 9010506031 9010506032 9010506035 9011906114 9011908458 9011908562 9011908652 9011908729 9011910557 9017908150 9017910141 9151140616 9151160635 9161160830 9161161050 9165160614
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-79045

1GGP..GS130

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45010

1GGP..GS130

 1
11312 - GASKET, FRONT END PLATE
11312-70014

1G#..GS13#

 1
11322A - COVER, TIMING BELT, NO.1
11321-70040

1GGP..GS130

 1
11322B - COVER, TIMING BELT, NO.2
11322-88300

1GGP..GS130

 1
11322C - COVER, TIMING BELT, NO.3
11323-88300

1GGP..GS130

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-88300

1GGP..GS130

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70040

1GGP..GS130

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1G#..GS13#

 1
11355 - PLATE, REAR END
11355-70020

1G#..GS13#..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307

1G#..GS13#..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1G#..GS13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75007

1G#..GS13#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011

1G#..GS13#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35021

1GGP..GS130

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35021

1GGP..GS130

 2
Common parts
90105-06031
90105-06032
90105-06035
90119-06114
90119-08458
90119-08562
90119-08652
90119-08729
90119-10557
90179-08150
90179-10141
91511-40616
91511-60635
91611-60830
91611-61050
91651-60614
Linked diagrams
1601
