GS130-AESDK (1988)
Toyota Crown

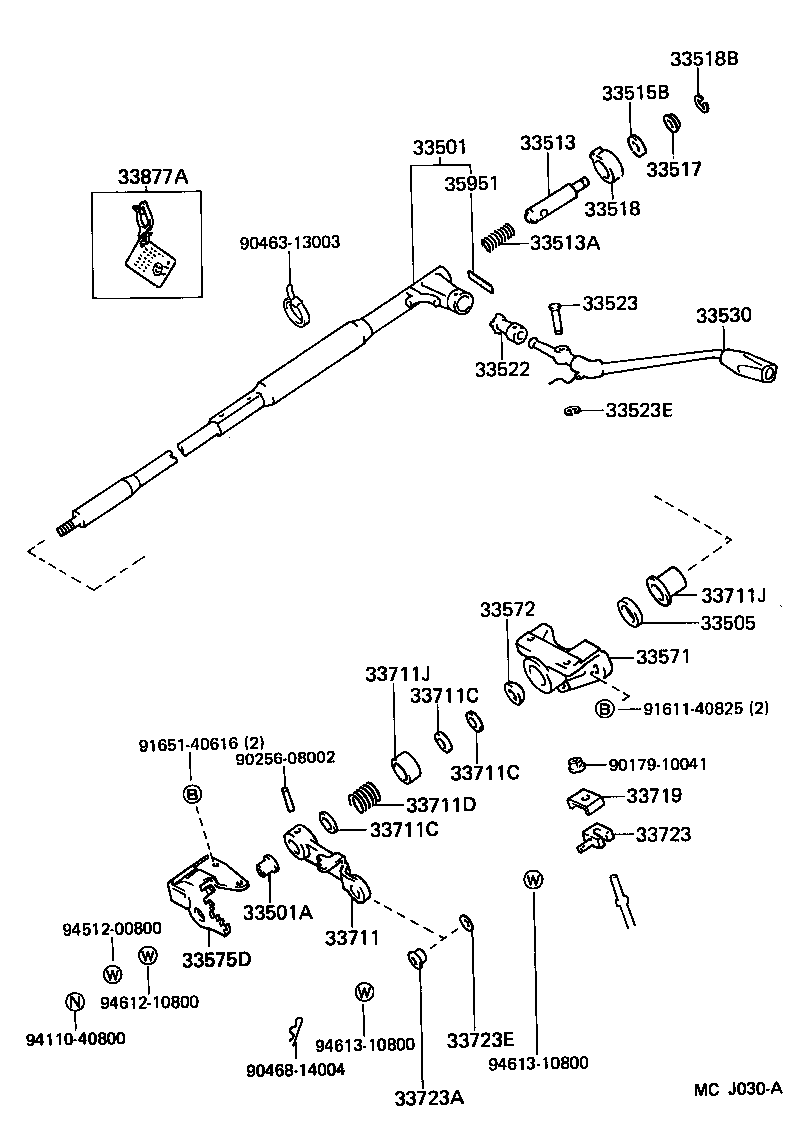

ILLUST NO. 1 OF 2(8709-8908)4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30480 |
GS130,131,MS130,135,YS130..4HC |
1 | ||
| 33501-30470 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33501-30530 |
GS130,131,JZS131,MS135,YS130..4HC |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-10060 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30110 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 90501-14083 |
GS130,131,MS13#,YS130..4HC |
1 | ||
| 90501-14784 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33501-30510 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33541-30390 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30350 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33572-30030 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-30311 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30290 |
GS130,131,JZS131,MS130,135,YS130..4HC |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711D - SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER) | ||||
| 90501-10311 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33719-30010 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723-30050 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08008 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 90389-08008 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| 35951 - INDICATOR, CONTROL POSITION | ||||
| 35951-30130 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| Common parts | ||||
| 90179-10041 | ||||
| 90256-08002 | ||||
| 90468-14004 | ||||
| 91611-40825 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||

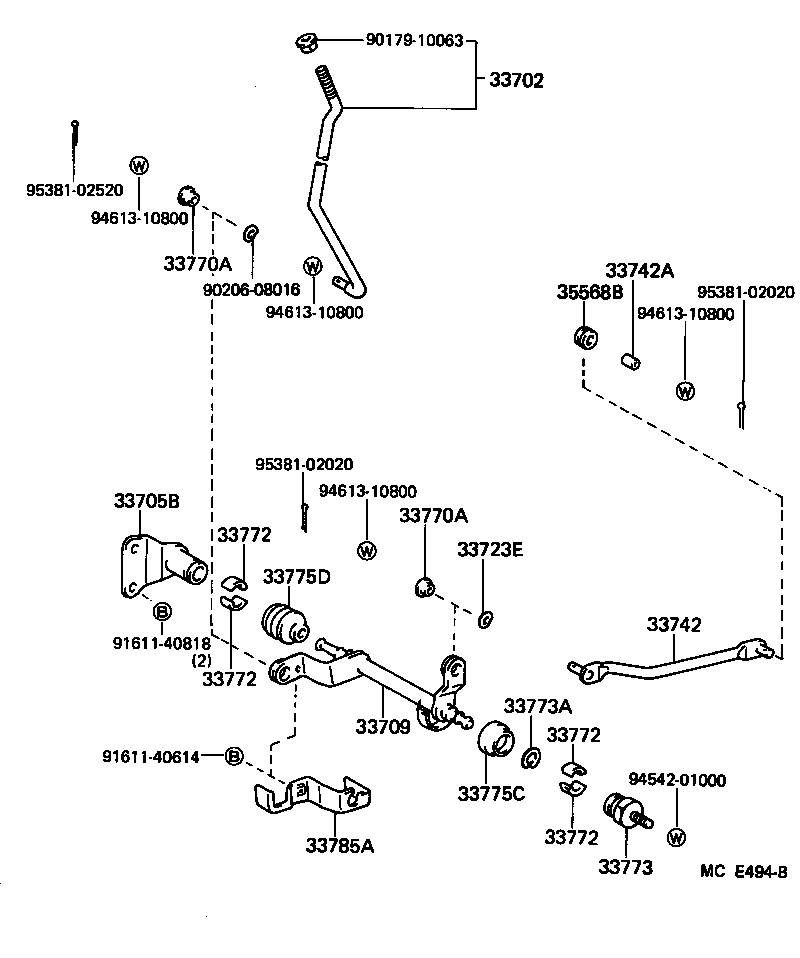

ILLUST NO. 2 OF 2(8709-8908)4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33702 - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-30111 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33702-30101 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33705B - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) | ||||
| 33705-30120 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-30320 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33709-30300 |
GS130,131,MS13#,YS130..4HC |
1 | ||
| 33709-30330 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-30290 |
GS130,131,YS130..4HC..(HTWC,LPEFI,TWLPG) |
1 | ||
| 33742-30240 |
GS130,131,MS130,YS130..4HC..(EFI,HTWC,LPG) |
1 | ||
| 33742A - BUSH(FOR SHIFTING ROD NO.2) | ||||
| 90389-08005 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
GS130,131,MS13#,UZS131,YS130..4HC |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
3 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
GS130,131,MS13#,UZS131,YS130..4HC |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
3 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-30070 |
GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.2 |
1 | ||
| 33773-20020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33773-20020 |
GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.1 |
2 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 96151-01600 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT) | ||||
| 33775-20040 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33775-20040 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775-30020 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-30070 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 35568B - GROMMET (FOR SHIFTING ROD, 2ND) | ||||
| 90480-17177 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| Common parts | ||||
| 90179-10063 | ||||
| 90206-08016 | ||||
| 91611-40614 | ||||
| 91611-40818 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||

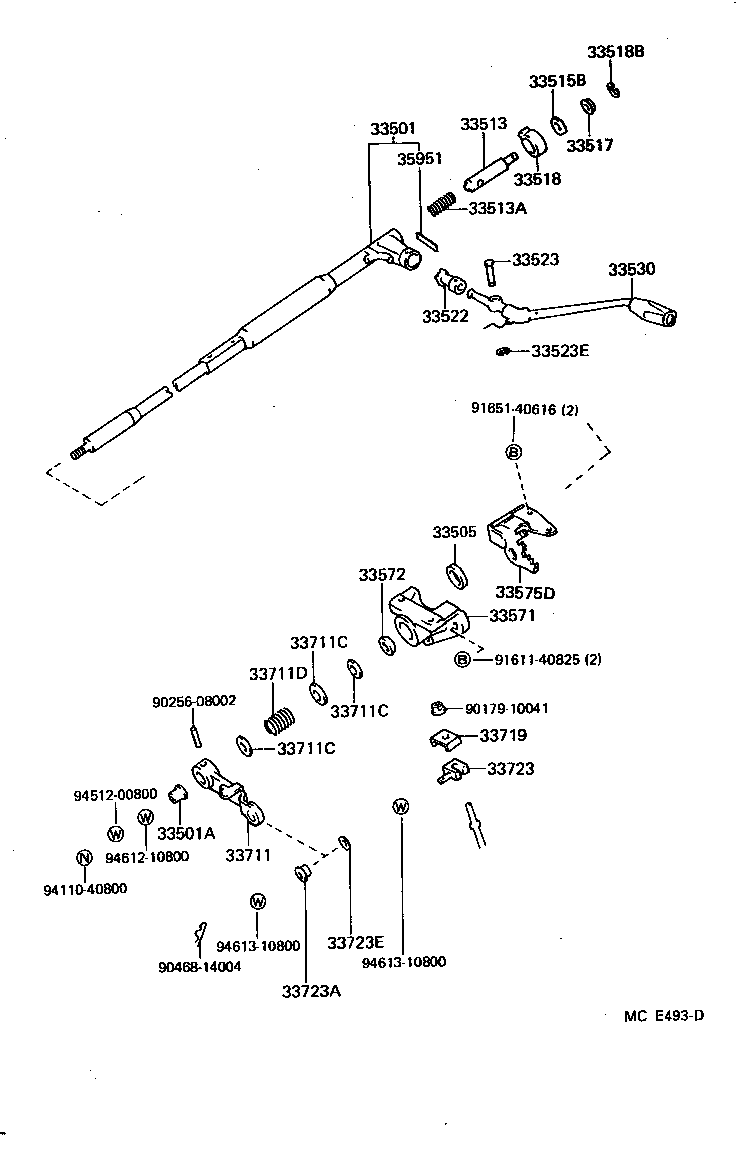

ILLUST NO. 1 OF 2(8908- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30480 |
GS130,131,MS130,135,YS130..4HC |
1 | ||
| 33501-30470 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33501-30530 |
GS130,131,JZS131,MS135,YS130..4HC |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-10060 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30110 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 90501-14083 |
GS130,131,MS13#,YS130..4HC |
1 | ||
| 90501-14784 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33501-30510 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33541-30390 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30350 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33572-30030 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-30311 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30290 |
GS130,131,JZS131,MS130,135,YS130..4HC |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17044 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.2 |
2 | ||
| 90201-17048 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 厚さ=1.0 |
1 | ||
| 33711D - SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER) | ||||
| 90501-10311 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33711J - SPACER (FOR CONTROL SHAFT LEVER) | ||||
| 90561-18003 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 上側 |
1 | ||
| 90561-17003 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 下側 |
1 | ||
| 33711J - SPACER (FOR CONTROL SHAFT LEVER) | ||||
| 90561-18003 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 上側 |
1 | ||
| 90561-17003 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC 下側 |
1 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33719-30010 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723-30050 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08008 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 90389-08008 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| 33877A - LABEL, SHIFT LOCK INFORMATION | ||||
| 33877-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 35951 - INDICATOR, CONTROL POSITION | ||||
| 35951-30130 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| Common parts | ||||
| 90179-10041 | ||||
| 90256-08002 | ||||
| 90463-13003 | ||||
| 90468-14004 | ||||
| 91611-40825 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||

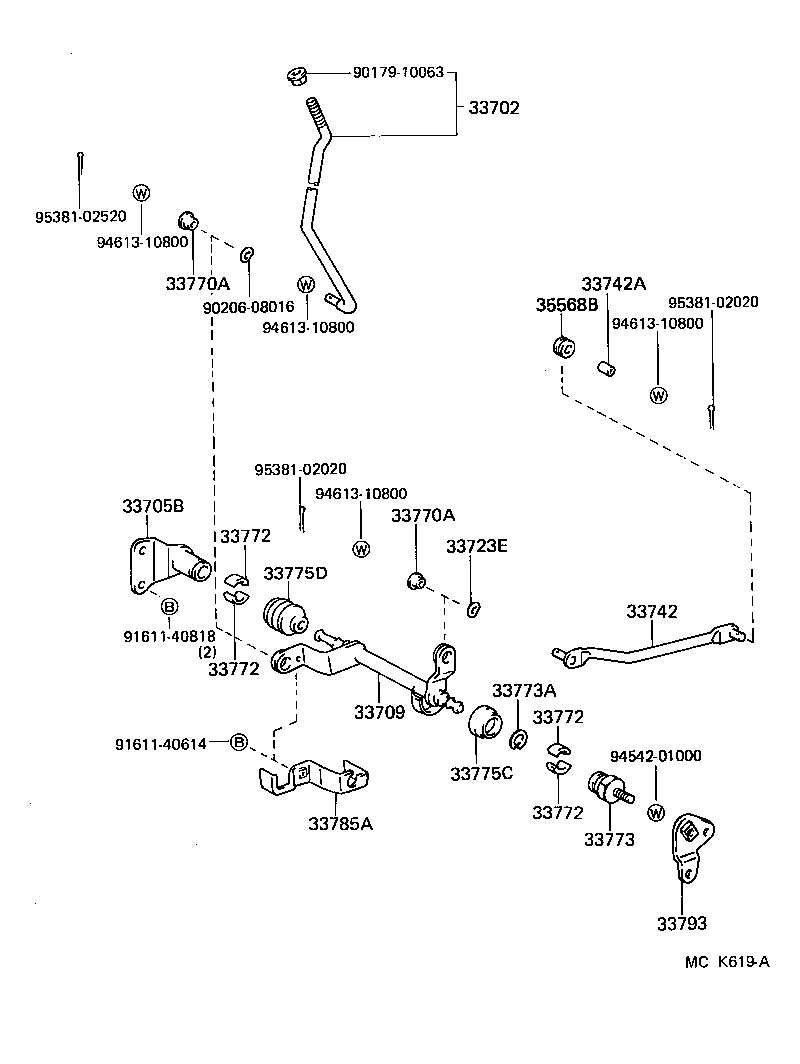

ILLUST NO. 2 OF 2(8908- )4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33702 - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-30111 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33702-30101 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33705B - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) | ||||
| 33705-30120 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) | ||||
| 33709-30320 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33709-30300 |
GS130,131,MS13#,YS130..4HC |
1 | ||
| 33709-30330 |
GS130,131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33742-30290 |
GS130,131,YS130..4HC..(HTWC,LPEFI,TWLPG) |
1 | ||
| 33742-30240 |
GS130,131,MS130,YS130..4HC..(EFI,HTWC,LPG) |
1 | ||
| 33742A - BUSH(FOR SHIFTING ROD NO.2) | ||||
| 90389-08005 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
GS130,131,MS13#,UZS131,YS130..4HC |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
3 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90389-08008 |
GS130,131,MS13#,UZS131,YS130..4HC |
2 | ||
| 90389-08008 |
GS130,136,LS13#,MS130,YS130..4H |
3 | ||
| 90389-08008 |
GS130,136,LS130,136,YS130..4H |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS130,136,LS130,136,MS130,YS130..4H |
8 | ||
| 33772-20010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
4 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-30070 |
GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.2 |
1 | ||
| 33773-20020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33773-20020 |
GS130,136,LS130,136,MS130,YS130..4H CROSS SHAFT NO.1 |
2 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 96151-01600 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT) | ||||
| 33775-20040 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33775-20040 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT) | ||||
| 33775-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33775-30020 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-30070 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 35568B - GROMMET (FOR SHIFTING ROD, 2ND) | ||||
| 90480-17177 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| Common parts | ||||
| 90179-10063 | ||||
| 90206-08016 | ||||
| 91611-40614 | ||||
| 91611-40818 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| 95381-02520 | ||||

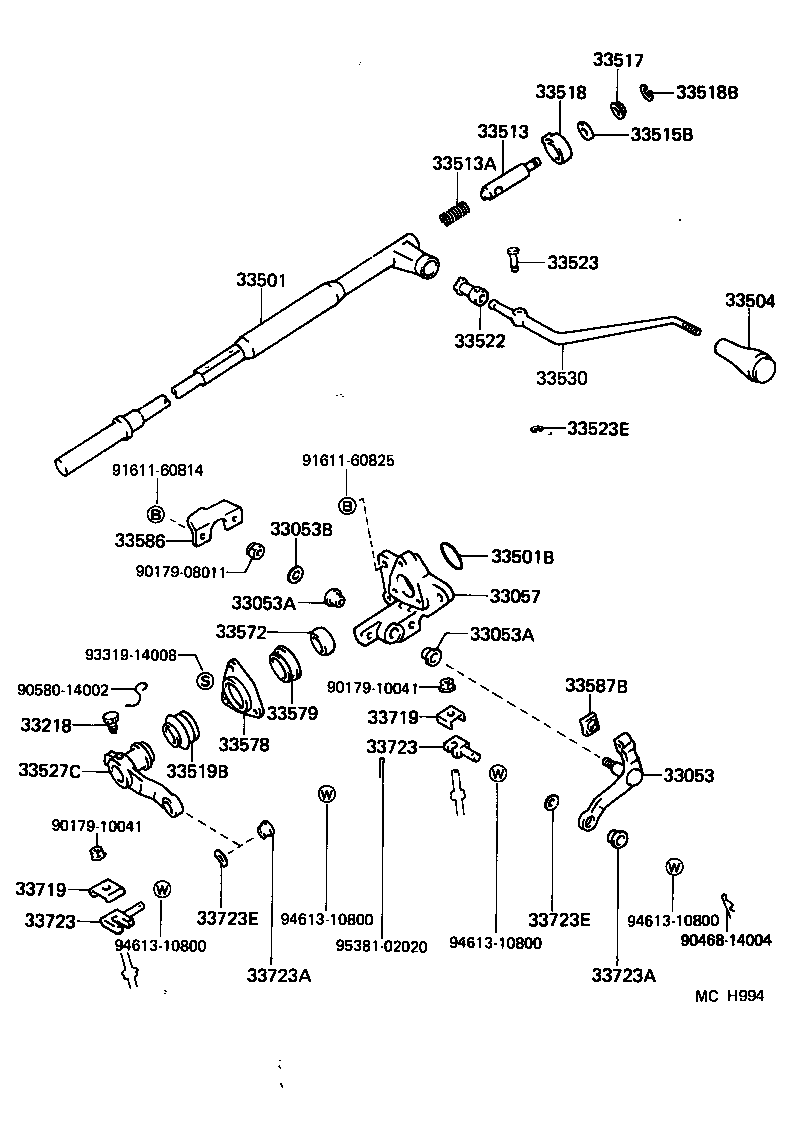

ILLUST NO. 1 OF 2(9110-9512)4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33053 - LEVER SUB-ASSY, CONTROL SELECT(FOR COLUMN SHIFT) | ||||
| 33053-30070 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33053A - BUSH(FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33053A - BUSH(FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33053B - WASHER, PLATE(FOR CONTROL SELECT LEVER) | ||||
| 90201-08065 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33057 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT | ||||
| 33057-30160 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33218 - BOLT, SHIFT LEVER LOCK | ||||
| 33218-35010 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30480 |
GS130,131,MS130,135,YS130..4HC |
1 | ||
| 33501-30470 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33501-30530 |
GS130,131,JZS131,MS135,YS130..4HC |
1 | ||
| 33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER) | ||||
| 90301-34002 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30110 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS130,136,LS13#,MS130,YS130..4H |
1 | ||
| 90501-14083 |
GS130,131,MS13#,YS130..4HC |
1 | ||
| 90501-14784 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT) | ||||
| 33515-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33519B - BOOT, CONTROL SHAFT DUST | ||||
| 33519-30030 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
1 | ||
| 33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT) | ||||
| 33527-30100 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33501-30510 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33541-30390 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33572-30030 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1 | ||||
| 33578-30020 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33579 - SEAT, CONTROL SHAFT LOWER BUSH, NO.2 | ||||
| 33579-30020 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33586 - STOPPER, CONTROL SHIFT LEVER | ||||
| 33586-30040 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33587B - BUSH, LEVER SELECTING | ||||
| 33587-30050 |
GS130,136,LS130,136,MS130,YS130..4H |
1 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33719-30010 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33719 - PLATE, SHIFT CONTROL ROD | ||||
| 33719-30010 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33719-30010 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723-30050 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-30050 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723-30050 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08008 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 90389-08008 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08008 |
GS130,136,LS130,136,MS130,YS130..4H |
2 | ||
| 90389-08008 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS130,131,JZS131,MS13#,UZS131,YS130..4HC |
1 | ||
| 90206-08016 |
GS13#,JZS131,LS130,136,MS13#,UZS131,YS130..4H,4HC |
2 | ||
| Common parts | ||||
| 90179-08011 | ||||
| 90179-10041 | ||||
| 90468-14004 | ||||
| 90580-14002 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 93319-14008 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

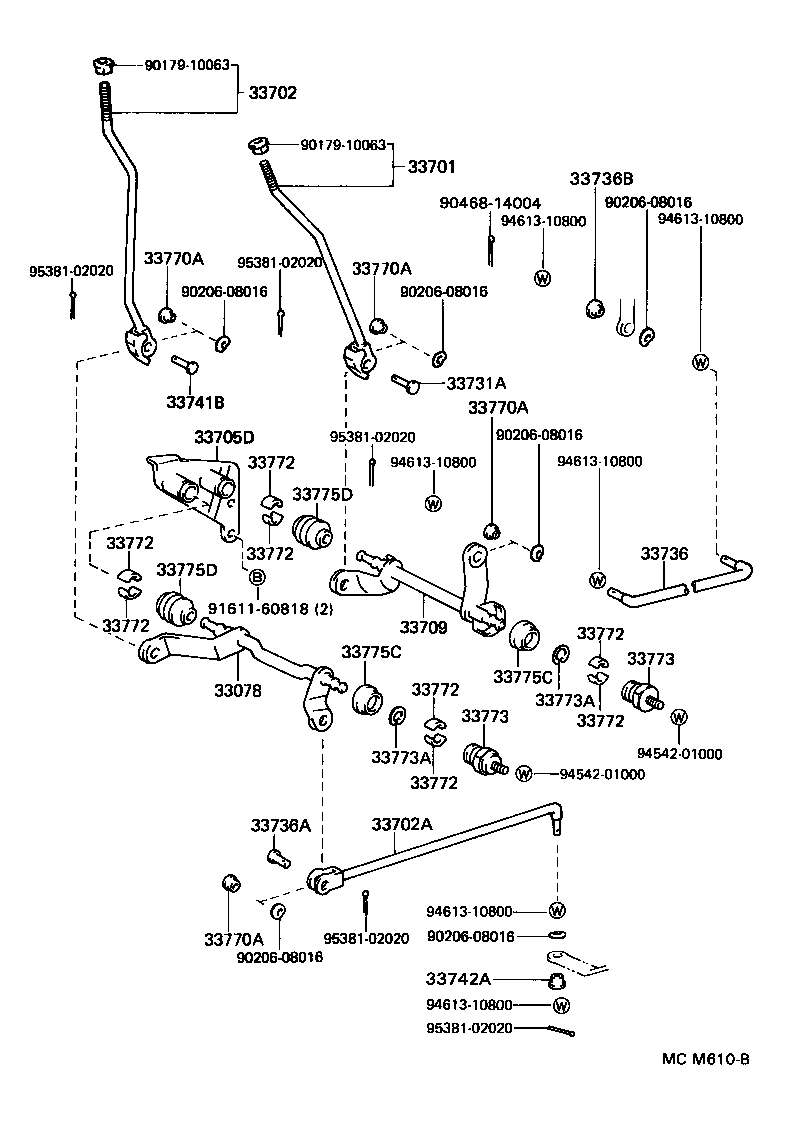

ILLUST NO. 2 OF 2(9110-9512)4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10063 | ||||
| 90206-08016 | ||||
| 90468-14004 | ||||
| 91611-60818 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
