GS130-AESDK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

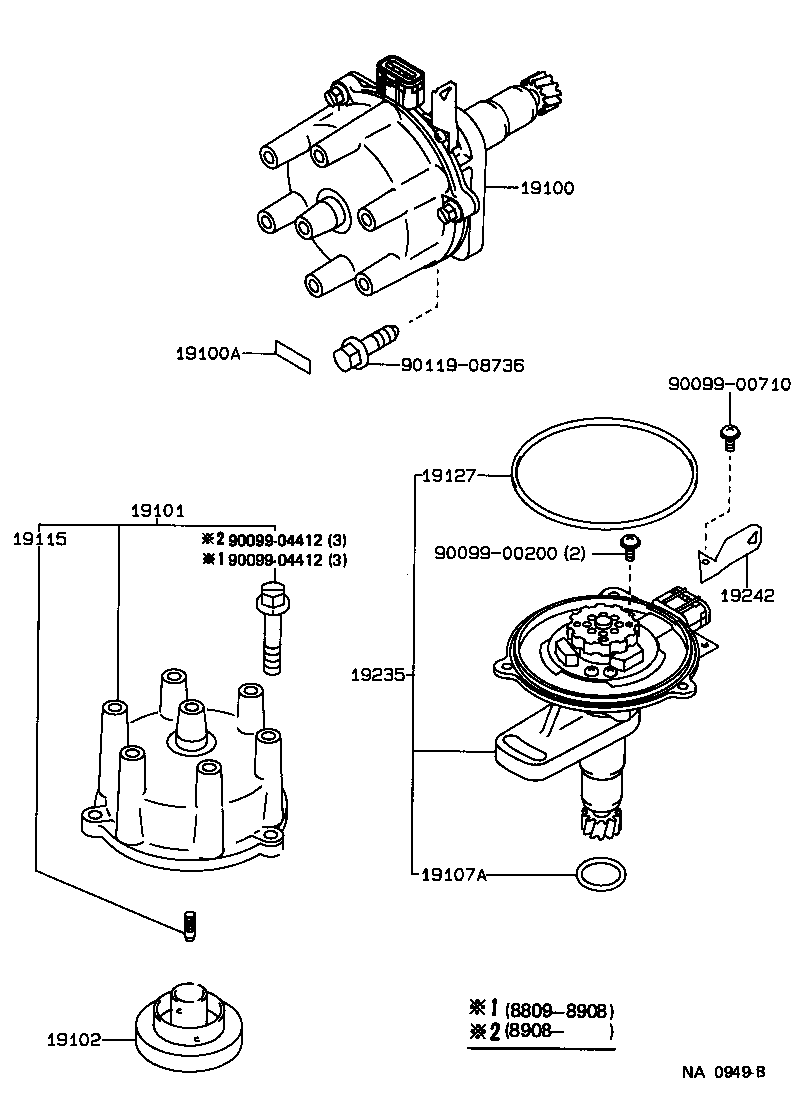

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19235 19242 9009900200 9009900710 9009904412 9009904412 9011908736
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-70160

1GFE..GS13#

 1
19100A - TAPE, SEALING
90919-24004

1GE,1GFE,1GG#..GS13#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70160

1GFE..GS130,131

 1
19101-70160

1GFE,1GGP..GS13#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-70160

1GFE..GS130,131

 1
19102-70160

1GFE..GS13#

 1
19102-70160

1GFE..GS13#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14095

1GFE..GS13#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1GFE..GS130,131

 1
19115-88280

1GFE,1GGP..GS13#

 1
19127 - PACKING, DUST PROOF
19127-61240

1GFE..GS130,131

 1
19127-61240

1GFE,1GGP..GS13#

 1
19235 - HOUSING, DISTRIBUTOR
19235-70160

1GFE..GS13#

 1
19242 - CLAMP, CORD
19242-70140

1GFE..GS13#

 1
Common parts
90099-00200
90099-00710
90099-04412
90119-08736
