GS130-AESDE (1987)
Toyota Crown
ILLUST NO. 1 OF 2(8709-8908)GS130,LS130..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30120 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77035-30130 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14010 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX,SPE)..HTWC;GS130..(DLX,ROY,SAL,SALEX,SDX,SPE)..(EFI,SPC);GS131,136,LS13#,MS135,137..DLX,ROY,ROYG,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
GS13#,LS13#,MS135,137 BLUE,TRIM8# |
1 | ||
| 77051-3006004 |
MS137..4HC..WIB;GS13#,LS13#,MS135 BLUE,TRIM8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30935 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS13#,JZS131,LS13#,MS135,137,UZS131..(HT,SED,V)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) *H,L=200 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22016 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30170 |
GS130,131,LS130,MS135,137..HT,SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30080 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) 長さ=222.8 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30030 |
GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08016 |
GS130,131,LS130,MS13#,YS130..HT,SED |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09011 |
GS130,131,LS130,MS13#,YS130..HT,SED 長さ=590 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS13#,JZS13#,LS13#,MS135,137,UZS131..DSL,EFI,HTWC,SPC,TD,TDE,TWC |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30130 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30120 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
4 | ||
| 77691 - SHEET, FUEL TANK SILENCER, UPPER NO.1 | ||||
| 77691-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77693 - SHEET, FUEL TANK SILENCER, UPPER NO.2 | ||||
| 77693-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77694 - SHEET, FUEL TANK SILENCER, LOWER NO.2 | ||||
| 77694-30020 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| 77695 - SHEET, FUEL TANK SILENCER, UPPER NO.3 | ||||
| 77695-30030 |
GS130,LS130..(HT,SED)..(DSL,EFI,HTWC,TD,TDE) |
1 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90119-08192 | ||||
| 90159-50225 | ||||
| 90159-50226 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90460-65004 | ||||
| 90467-10092 | ||||
| 90467-12039 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2211 | ||||

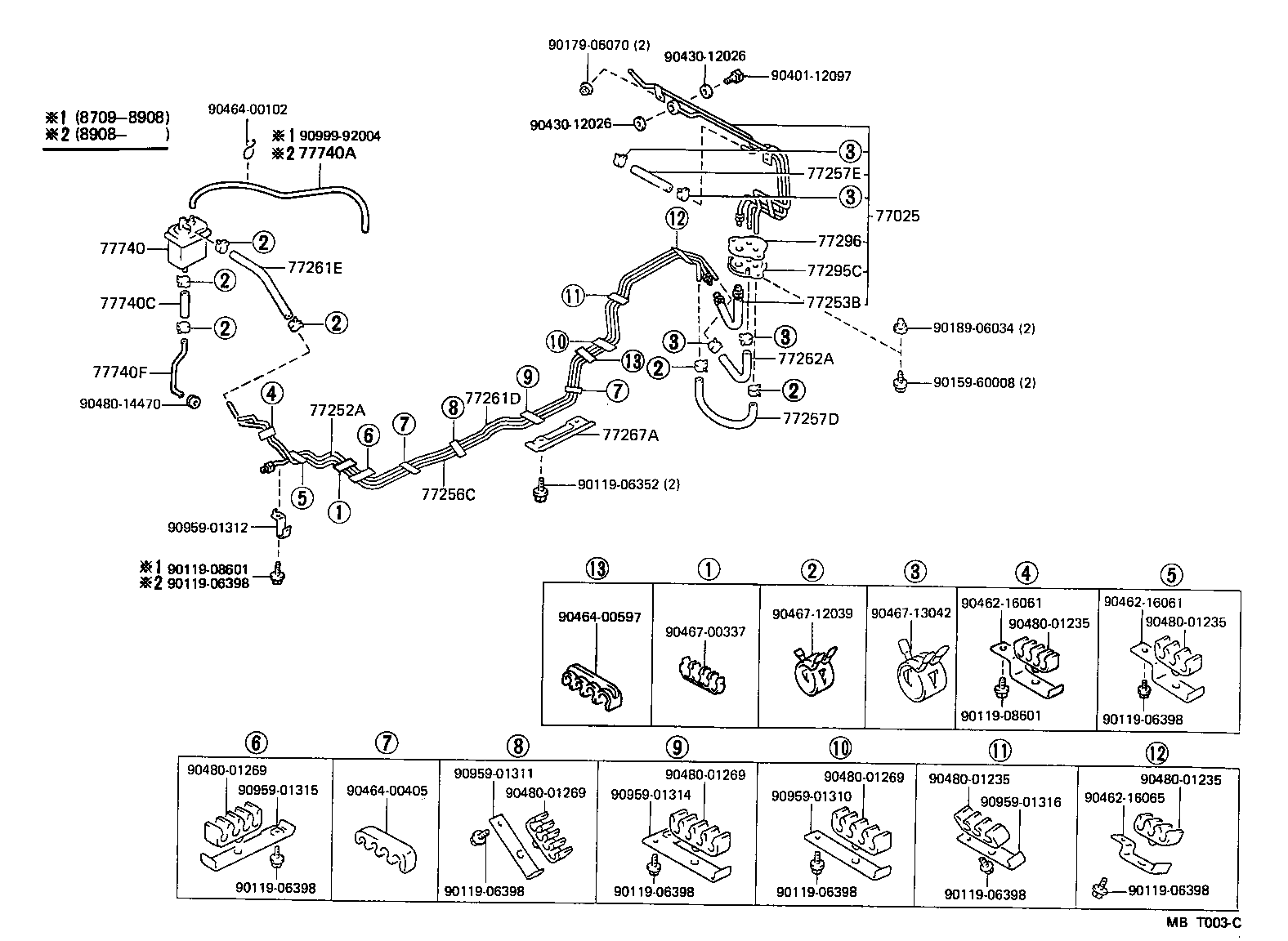

ILLUST NO. 2 OF 2(8709- )GS130..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30180 |
GS130..(HT,SED)..(EFI,HTWC) |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30320 |
GS130..(HT,SED)..(EFI,HTWC) |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-30100 |
GS130,131,JZS131,MS135,137,UZS131..(HT,SED)..(EFI,HTWC,SPC,TWC) |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-30230 |
GS130..(HT,SED)..(EFI,HTWC) |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08030 |
GS130,131,JZS131,MS135,137,UZS131..(HT,SED)..(EFI,HTWC,SPC,TWC) |
1 | ||
| 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08020 |
GS130..HT,SED |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-30090 |
GS130..(HT,SED)..(EFI,HTWC) |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 95333-06030 |
GS130,131,JZS131,MS135,137,UZS131..(HT,SED)..(EFI,HTWC,SPC,TWC) |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-30020 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30130 |
GS13#,JZS13#,MS135,137..EFI,HTWC,SPC,TWC |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12119 |
GS130,136;GS131..HTWC,SPC,TWC 長さ=100 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-30020 |
GS13#,JZS13#,MS135,137,UZS131..EFI,HTWC,SPC,TWC |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90119-06398 | ||||
| 90119-08601 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90189-06034 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90462-16061 | ||||
| 90462-16065 | ||||
| 90464-00102 | ||||
| 90464-00405 | ||||
| 90464-00597 | ||||
| 90467-00337 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90480-01235 | ||||
| 90480-01269 | ||||
| 90480-14470 | ||||
| 90959-01310 | ||||
| 90959-01311 | ||||
| 90959-01312 | ||||
| 90959-01314 | ||||
| 90959-01315 | ||||
| 90959-01316 | ||||
| 90999-92004 | ||||
