GS130-AEPJE (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 1GE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)SED

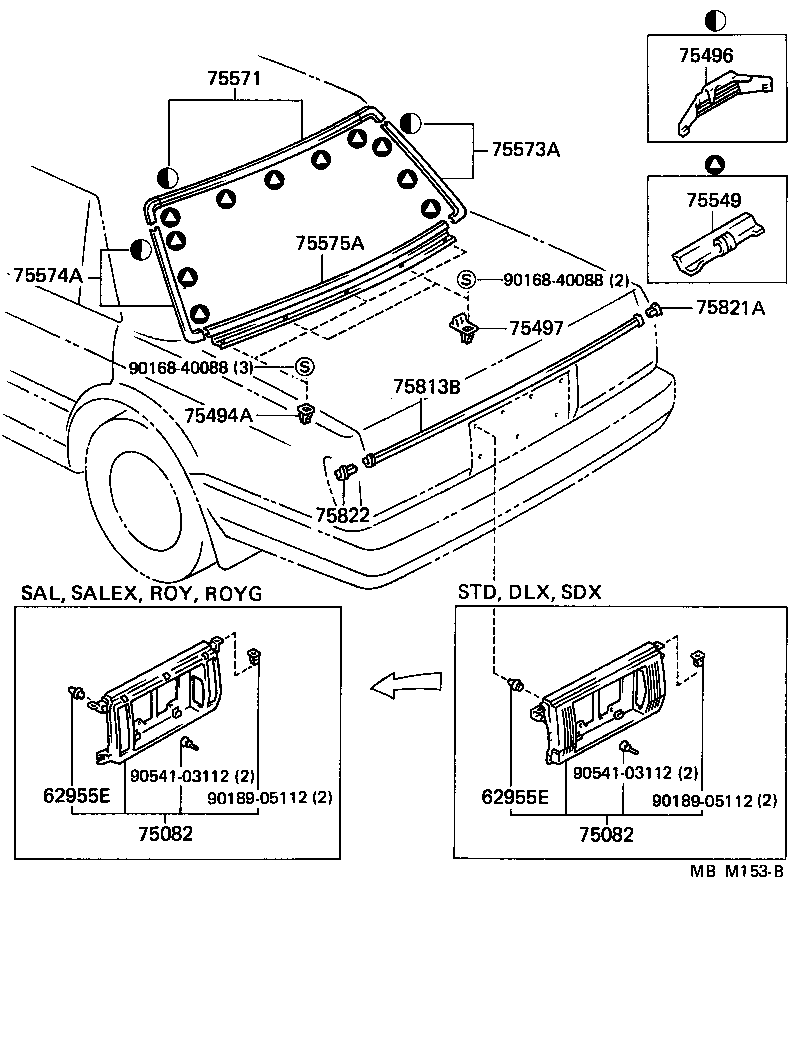

Click highlighted areas on diagram

diagram 62955E 62955E 75082 75082 75494A 75496 75497 75549 75571 75573A 75574A 75575A 75813B 75821A 75822 9016840088 9016840088 9018905112 9018905112 9054103112 9054103112
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GS130,131,LS130,MS13#,YS130..SED

 7
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GS130,131,LS130,MS13#,YS130..SED

 7
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30120

GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30120

GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX)

 1
75494A - CLIP, OUTSIDE MOULDING, NO.3
75494-30010

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED

 3
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-30040

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED

 11
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-30030

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED

 2
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20090

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..HT,SED

 11
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-30140

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-30230

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-30230

GS130,131,JZS131,LS130,131,MS13#,UZS131,YS130..SED

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-30160

GS130,131,LS130,MS13#,YS130..SED

 1
75575-30190

GS130,131,LS130,MS13#,YS130..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75813B - MOULDING, LUGGAGE COMPARTMENT DOOR
75813-30080

GS131..SED..ROY;GS130,LS130,MS13#,YS130..SED..(DSL,EFI,HTWC,LPG,TD,TDE,TWC)

 1
Common parts
90168-40088
90189-05112
90541-03112
