GS130-AEPJE (1987)
Toyota Crown

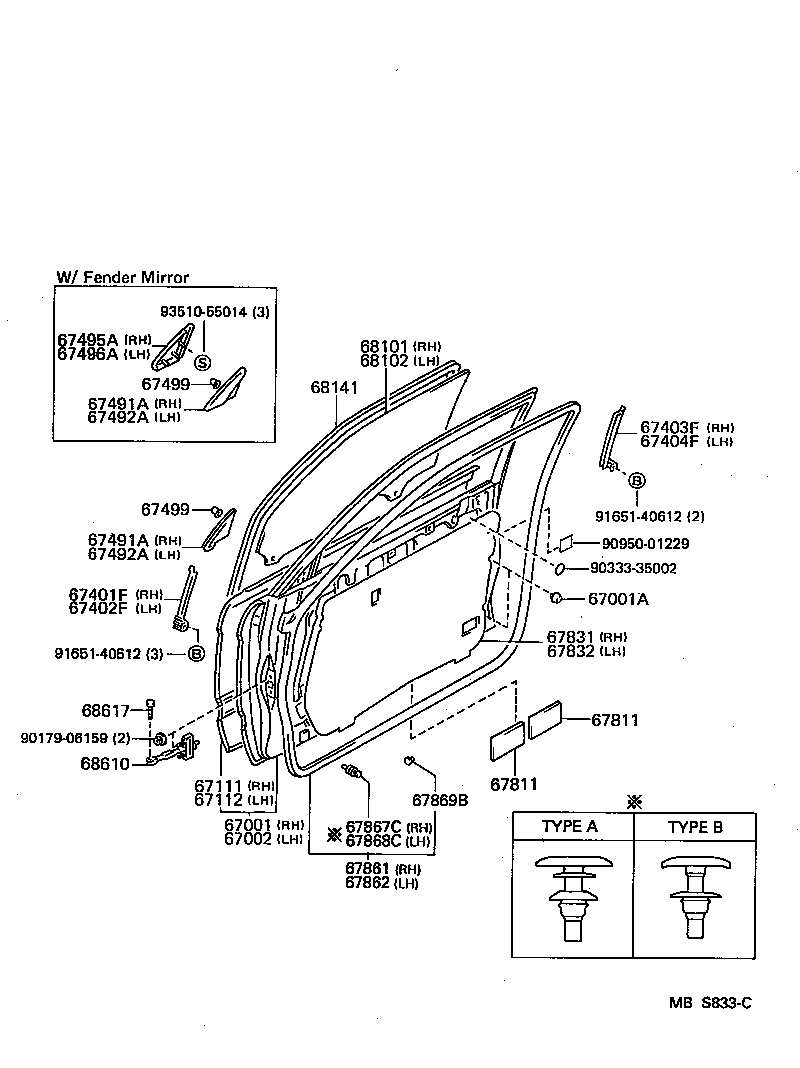

ILLUST NO. 1 OF 3(8709- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30590 |
GS130..WG..SDX;GS130,LS130,MS130..SED..(SAL,SALEX,SDX) |
1 | ||
| 67001-30600 |
GS130..WG..SDX;GS130,LS130..SED..(SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09046 |
GS13#,LS13#,MS13#,YS130 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30670 |
GS130..WG..SDX;GS130,LS130,MS130..SED..(SAL,SALEX,SDX) |
1 | ||
| 67002-30680 |
GS130..WG..SDX;GS130,LS130..SED..(SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30320 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30380 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30100 |
GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V |
1 | ||
| 67401-30110 |
GS130..WG..SDX;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30100 |
GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V |
1 | ||
| 67402-30110 |
GS130..WG..SDX;GS130,131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30090 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30090 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30070 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V |
1 | ||
| 67491-30080 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30070 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V |
1 | ||
| 67491-30080 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30080 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67492-30070 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30080 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 67492-30070 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-30020 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
4 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
4 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-30050 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-30050 |
GS13#,LS13#,MS13#,YS130 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30280 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30150 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30171 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 67861-30171 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67861-30170 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30170 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67862-30171 |
GS13#,LS13#,MS13#,YS130..SED,V,WG |
1 | ||
| 67862-30171 |
GS130,131,LS130,MS13#,YS130..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 TYPE B |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
GS13#,LS13#,MS13#,YS130 TYPE B |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-30430 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..(SED,V)..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TT,厚さ=4.0 |
1 | ||
| 68111-30450 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) *TT,厚さ=4.0,ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 68111-30480 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX) *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 68111-30460 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX) *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-30360 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..(SED,V)..(DLX,ROY,ROYG,SAL,SALEX,SDX) *TT,厚さ=4.0 |
1 | ||
| 68112-30380 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) *TT,厚さ=4.0,ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 68112-30410 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX) *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 68112-30390 |
GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX) *TEM,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68151-30080 |
GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V 左側 |
1 | ||
| 68141-30190 |
GS130..WG..SDX;GS13#,LS13#,MS13#,YS130..SED,V 右側 |
1 | ||
| 68141-30200 |
GS130..WG..SDX;GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾐﾗ-),右側 |
1 | ||
| 68151-30090 |
GS130..WG..SDX;GS130,131,LS130,MS135,137..SED..(ROY,ROYG,SAL,SALEX,SDX) ｱﾘ(ﾄﾞｱ ﾐﾗ-),左側 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-30040 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-30030 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 90950-01229 | ||||
| 91651-40612 | ||||
| 93510-55014 | ||||

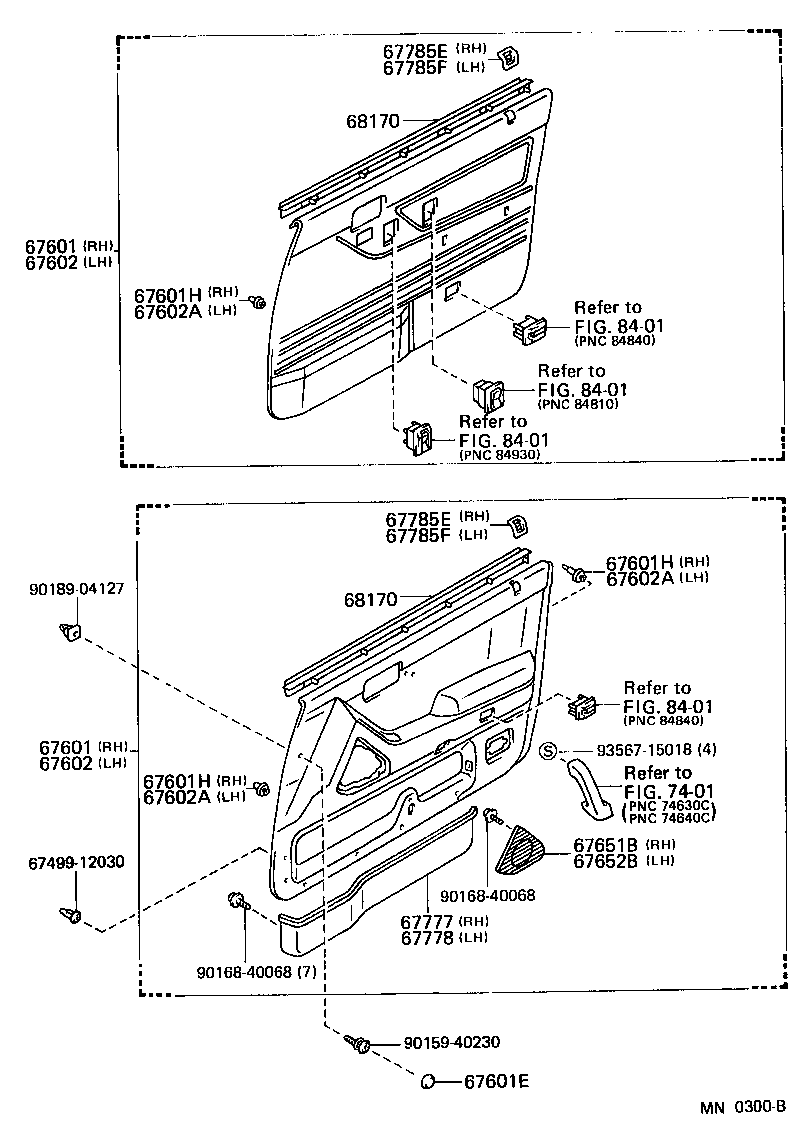

ILLUST NO. 2 OF 3(8709- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3A14004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 67650-3A14006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 67650-3A14002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 67650-3A24002 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67650-3A48002 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67650-3A19004 |
GS130,131..SAL BLUE,TRIM8# |
1 | ||
| 67650-3A19006 |
GS130,131..SAL SABLE,TRIM4# |
1 | ||
| 67650-3A48004 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67650-3A24004 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67650-3A19002 |
GS130,131..SAL MAROON,TRIM3# |
1 | ||
| 67650-3A48006 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67650-3A24006 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3A14004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 67650-3A14006 |
GS130,131,LS130,131..SED..SALEX SABLE,TRIM4# |
1 | ||
| 67650-3A14002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 67650-3A24002 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67650-3A48002 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67650-3A19004 |
GS130,131..SAL BLUE,TRIM8# |
1 | ||
| 67650-3A19006 |
GS130,131..SAL SABLE,TRIM4# |
1 | ||
| 67650-3A48004 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67650-3A24004 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67650-3A19002 |
GS130,131..SAL MAROON,TRIM3# |
1 | ||
| 67650-3A48006 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67650-3A24006 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000136 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SPE,SSL SABLE,TRIM4# |
2 | ||
| 90339-1000122 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL MAROON,TRIM3# |
2 | ||
| 90339-1000124 |
GS130,131,LS130,MS13#..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL DARK BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3A84002 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67620-3A84004 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67620-3A84006 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67620-3F05004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 67620-3F05002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 67620-3F04002 |
GS130,131..SAL MAROON,TRIM3# |
1 | ||
| 67620-3F09002 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67620-3F04004 |
GS130,131..SAL BLUE,TRIM8# |
1 | ||
| 67620-3F09004 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67620-3F05006 |
GS130,131,LS130,131..SED..SALEX BROWN,TRIM4# |
1 | ||
| 67620-3F04006 |
GS130,131..SAL SABLE,TRIM4# |
1 | ||
| 67620-3F09006 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3A84002 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67620-3A84004 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67620-3A84006 |
GS130,131..SAL ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67620-3F05004 |
GS130,131,LS130,131..SED..SALEX BLUE,TRIM8# |
1 | ||
| 67620-3F05002 |
GS130,131,LS130,131..SED..SALEX MAROON,TRIM3# |
1 | ||
| 67620-3F04002 |
GS130,131..SAL MAROON,TRIM3# |
1 | ||
| 67620-3F09002 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),MAROON,TRIM3# |
1 | ||
| 67620-3F04004 |
GS130,131..SAL BLUE,TRIM8# |
1 | ||
| 67620-3F09004 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),BLUE,TRIM8# |
1 | ||
| 67620-3F05006 |
GS130,131,LS130,131..SED..SALEX BROWN,TRIM4# |
1 | ||
| 67620-3F04006 |
GS130,131..SAL SABLE,TRIM4# |
1 | ||
| 67620-3F09006 |
GS130,131,LS130,131..SED..SALEX ｱﾘ(ﾄﾞｱ ﾐﾗ-),SABLE,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30090 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ｲｴﾛｰ |
1 | ||
| 67771-12050 |
GS130,131,JZS13#,LS130,131,MS13#,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX,SDX) ﾚｯﾄﾞ |
10 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-3004006 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131..(SED,WG)..(SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 67651-3004004 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 67651-3004002 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-3001002 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) MAROON,TRIM3# |
1 | ||
| 67652-3001006 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131..(SED,WG)..(SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 67652-3001004 |
GS131..4HC..(EFI,HTWC);GS131..SED..(4FC,5F)..HTWC;GS130,LS130,131,MS130..(SED,WG)..(SAL,SALEX,SDX) BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-3002004 |
GS130,131,JZS131,LS130,131..SAL,SSL BLUE,TRIM8# |
1 | ||
| 67770-3002006 |
GS130,131,JZS131,LS130,131..SAL,SSL SABLE,TRIM4# |
1 | ||
| 67770-3007002 |
GS130,131,JZS131,LS130,131,MS135..SALEX MAROON,TRIM3# |
1 | ||
| 67770-3002002 |
GS130,131,JZS131,LS130,131..SAL,SSL MAROON,TRIM3# |
1 | ||
| 67770-3007006 |
GS130,131,JZS131,LS130,131,MS135..SALEX SABLE,TRIM4# |
1 | ||
| 67770-3007004 |
GS130,131,JZS131,LS130,131,MS135..SALEX BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-3004002 |
GS130,131,JZS131,LS130,131..SAL,SSL MAROON,TRIM3# |
1 | ||
| 67780-3007006 |
GS130,131,JZS131,LS130,131,MS135..SALEX SABLE,TRIM4# |
1 | ||
| 67780-3007002 |
GS130,131,JZS131,LS130,131,MS135..SALEX MAROON,TRIM3# |
1 | ||
| 67780-3007004 |
GS130,131,JZS131,LS130,131,MS135..SALEX BLUE,TRIM8# |
1 | ||
| 67780-3004006 |
GS130,131,JZS131,LS130,131..SAL,SSL SABLE,TRIM4# |
1 | ||
| 67780-3004004 |
GS130,131,JZS131,LS130,131..SAL,SSL BLUE,TRIM8# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 67785-3007006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785-3007006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 67785-3007002 |
GS130..(4FC,4H)..DLX..HTWC;GS130..(SAL,SALEX,SDX)..HTWC;GS13#,LS13#,MS13#,YS130..(SED,V,WG)..(DLX,ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,LPG,SPC,TD,TDE,TWC) MAROON,TRIM3# |
1 | ||
| 67785-3007004 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..SED,V,WG BLUE,TRIM8# |
1 | ||
| 67785-3007006 |
GS130,131,JZS13#,LS130,131,MS135,137,UZS131..(SED,WG)..(ROY,ROYG,SAL,SALEX) SABLE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30200 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V 右側 |
1 | ||
| 68170-30210 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-),右側 |
1 | ||
| 68220-30160 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-),左側 |
1 | ||
| 68220-30150 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30200 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V 右側 |
1 | ||
| 68170-30210 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-),右側 |
1 | ||
| 68220-30160 |
GS130..WG..SDX;GS130,131,JZS131,LS130,131,MS135,137,UZS131..SED..(ROY,ROYG,SAL,SALEX,SDX)..(DSL,EFI,HTWC,SPC,TD,TDE,TWC) ｱﾘ(ﾄﾞｱ ﾐﾗ-),左側 |
1 | ||
| 68220-30150 |
GS130..WG..SDX;GS13#,JZS131,LS13#,MS13#,UZS131,YS130..SED,V 左側 |
1 | ||
| Common parts | ||||
| 67499-12030 | ||||
| 90159-40230 | ||||
| 90168-40068 | ||||
| 90189-04127 | ||||
| 93567-15018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(8709-8908)SED
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9110-9308)GS130,131,JZS131,133,135,LS131..ROY,ROYG,SALEX
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
