GS130-AEPJE (1987)
Toyota Crown
(8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG

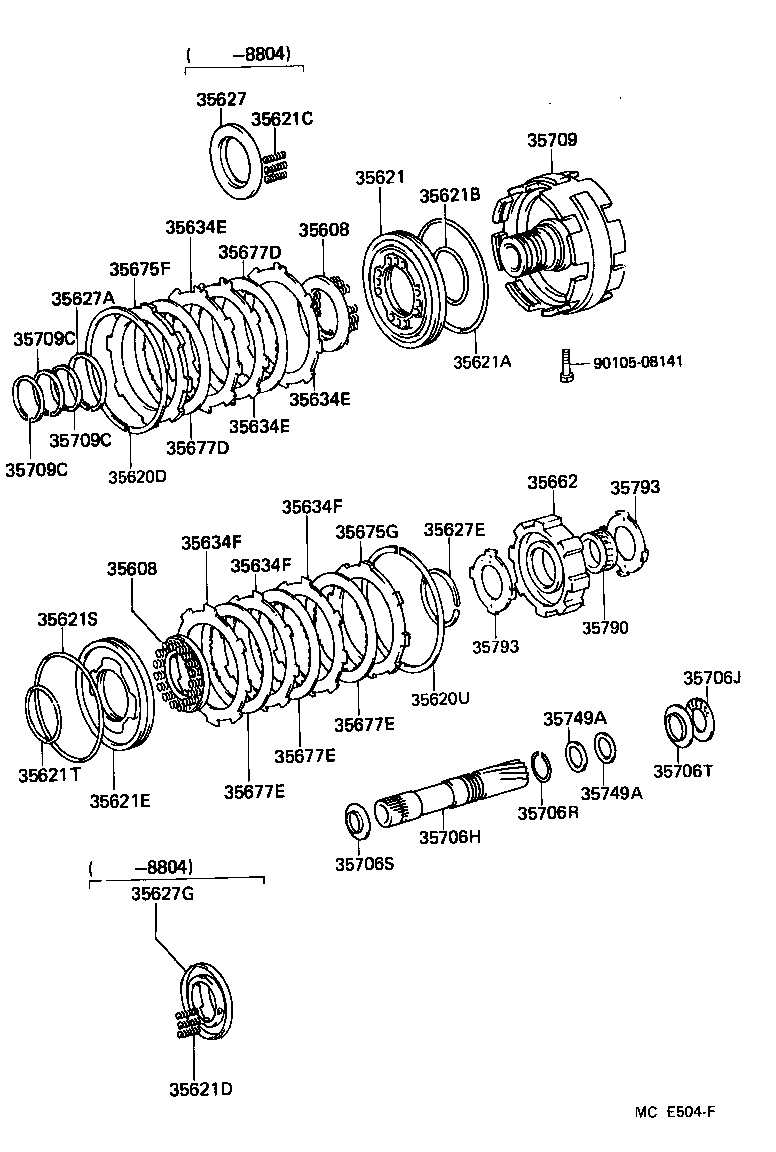

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35620D - RING (FOR BRAKE) | ||||
| 90521-99139 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35620U - RING (FOR REAR BRAKE) | ||||
| 90521-99139 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35624-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99192 |
YS130..4HC..LPEFI;GS130,131,LS13#,MS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621C - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
12 | ||
| 35621D - SPRING, COMPRESSION (FOR REAR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
GS130,131,LS130,MS130,YS130..ATM..(EFI,LPG,TDE,TWC) |
20 | ||
| 35621E - PISTON, BRAKE (FOR REAR BRAKE) | ||||
| 35621-30010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621S - RING (FOR REAR BRAKE PISTON OUTER) | ||||
| 90301-99007 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35621T - RING (FOR REAR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35627 - SEAT, BRAKE RETURN SPRING | ||||
| 35627-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
1 | ||
| 35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35627E - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35627G - SEAT, BRAKE RETURN SPRING (FOR REAR BRAKE) | ||||
| 35627-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
1 | ||
| 35634E - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG) |
1 | ||
| 35634E - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG) |
1 | ||
| 35634E - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWLPG) |
1 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,LPEFI,LPG) 厚さ=1.8 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,LPEFI,LPG) 厚さ=1.8 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35634-22060 |
GS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,LPEFI,LPG) 厚さ=1.8 |
3 | ||
| 35675F - FLANGE, CLUTCH (FOR BRAKE) | ||||
| 35675-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
1 | ||
| 35675G - FLANGE, BRAKE (FOR REAR BRAKE) | ||||
| 35675-22010 |
GS130,131,LS136,MS130,YS130..ATM..(DSL,EFI,LPEFI,LPG) |
1 | ||
| 35677E - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,LPG) |
2 | ||
| 35677E - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,LPG) |
2 | ||
| 35677E - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,LPG) |
2 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-22011 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC) |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-23012 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
1 | ||
| 35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR) | ||||
| 90520-34260 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC) |
1 | ||
| 35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT) | ||||
| 35789-22030 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35706T - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR) | ||||
| 35789-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-12011 |
GS130,131,MS130..ATM..(EFI,LPG) |
1 | ||
| 35709-12011 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,LPG) |
1 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
3 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC) |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
GS130,131,LS136,MS130..ATM..(DSL,EFI,HTWC,LPG,TWC) |
2 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35791-30020 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
2 | ||
| Common parts | ||||
| 90105-08141 | ||||
