GS130-AEPFK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

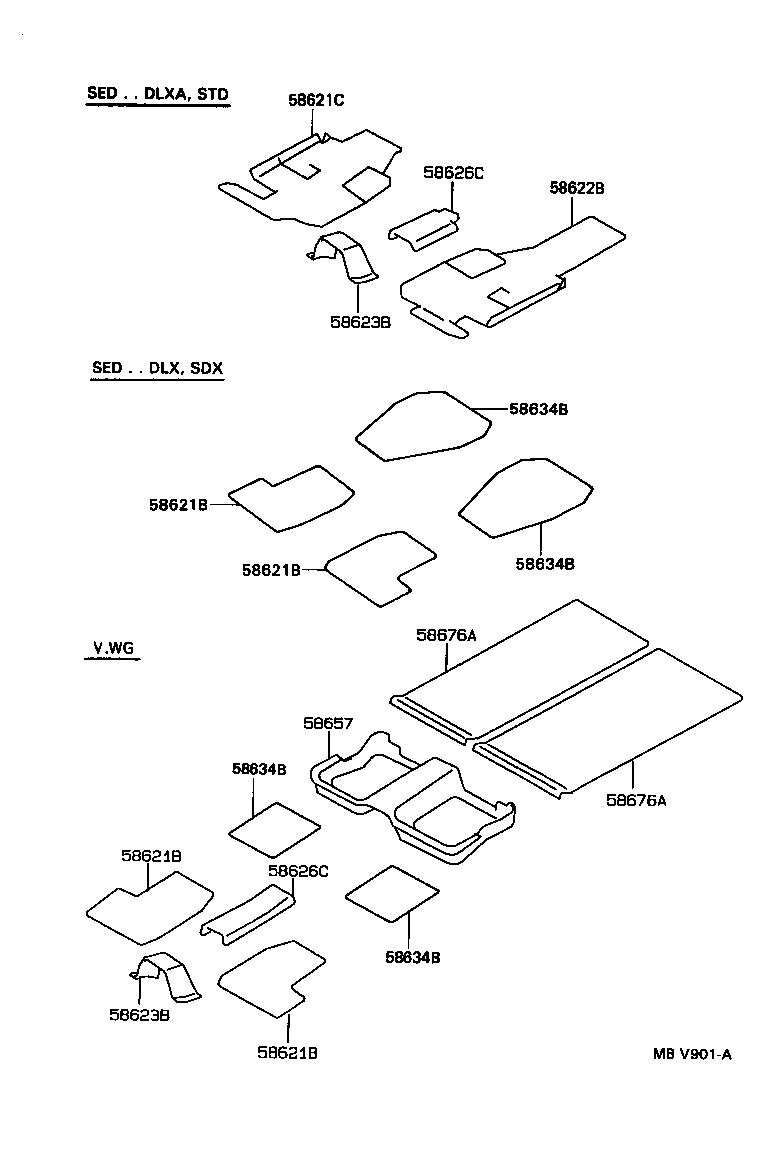

Click highlighted areas on diagram

diagram 58621B 58621B 58621B 58621B 58621C 58622B 58623B 58623B 58626C 58626C 58634B 58634B 58634B 58634B 58657 58676A 58676A
Part # Description Qty Price
58621B - PAD, FRONT FLOOR SILENCER
58621-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58621-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58621B - PAD, FRONT FLOOR SILENCER
58621-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58621-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58621B - PAD, FRONT FLOOR SILENCER
58621-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58621-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58621B - PAD, FRONT FLOOR SILENCER
58621-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58621-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58634-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58634-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58634-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91701

GS130..WG..SALEX;GS130,136,LS130,136,YS130..DLX,SDX

 2
58634-91701

GS136;GS130,LS130,136,YS130..DLX,ROY,SDX

 2
