GS130-AEPFK (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )HTWC

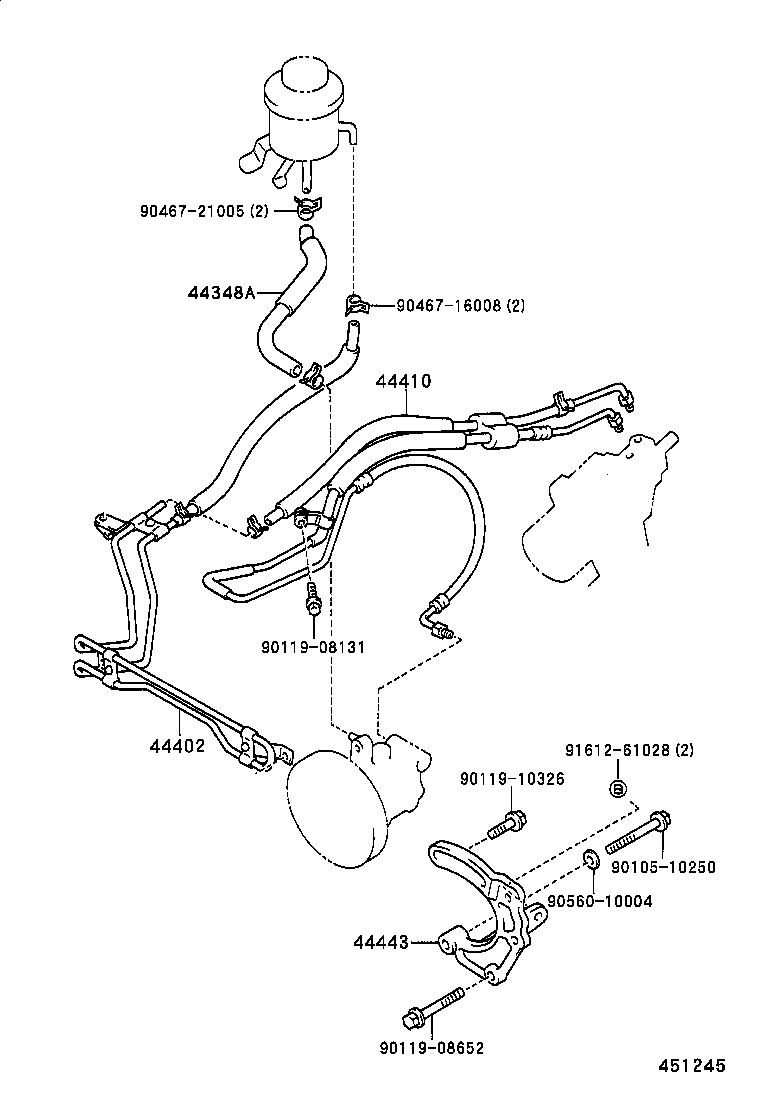

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-30120 |
GS13#..HTWC |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-30130 |
GS13#..HTWC |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-30170 |
GS13#..HTWC |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-22100 |
GS13#..HTWC |
1 | ||
| Common parts | ||||
| 90105-10250 | ||||
| 90119-08131 | ||||
| 90119-08652 | ||||
| 90119-10326 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90560-10004 | ||||
| 91612-61028 | ||||
