GS130-AEPFK (1988)

Toyota Crown

Production Sep 1988 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )1GFE

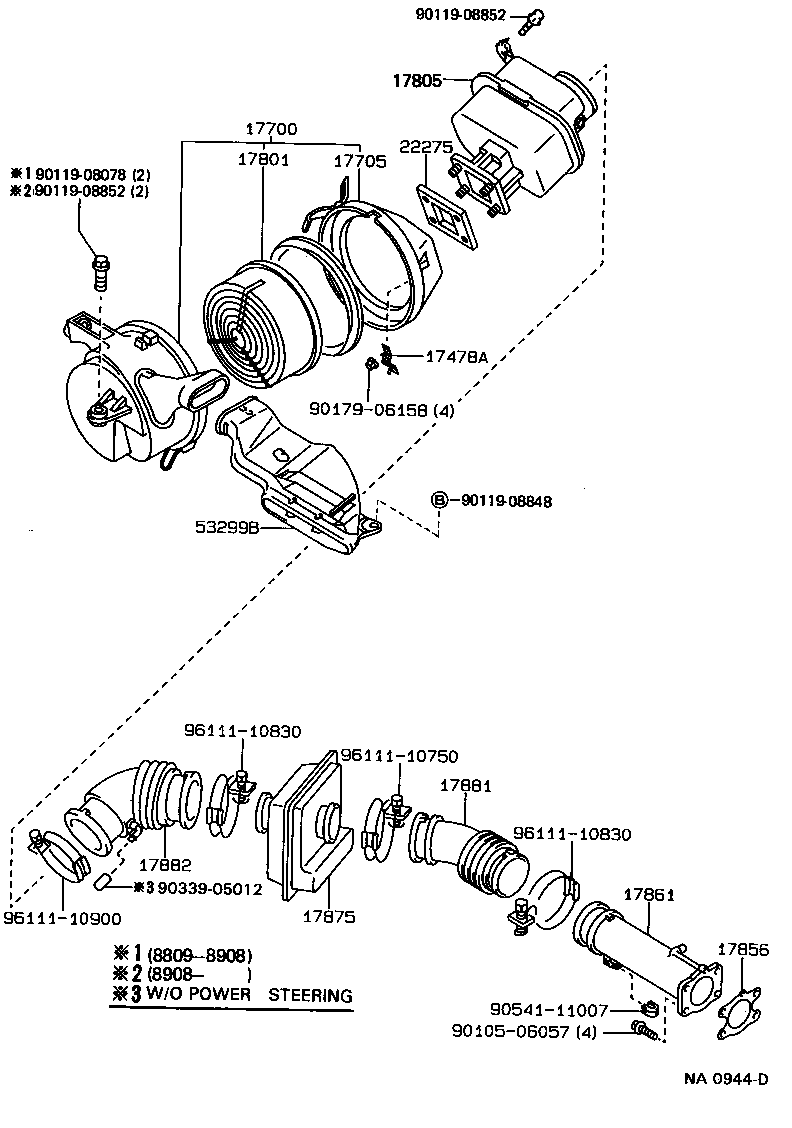

Click highlighted areas on diagram

diagram 17478A 17700 17705 17801 17805 17856 17861 17875 17881 17882 22275 53299B 9010506057 9011908078 9011908848 9011908852 9011908852 9017906158 9033905012 9054111007 9611110750 9611110830 9611110830 9611110900
Part # Description Qty Price
17478A - PLATE, LOCK
17478-43010

1GE,1GFE,1GGZE,1GGE..GS13#

 2
17700 - CLEANER ASSY, AIR
17700-70080

1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-42130

1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

1GE,1GFE,1GGZE,1GGE..GS13#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-70070

1GFE,1GGE..GS13#

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-70020

1GFE..GS13#

 1
17861 - CONNECTOR, INTAKE AIR
17861-70020

1GFE..GS13#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70120

1GFE,1GG#..GS13#

 1
17875-70120

1GFE,1GGP,1GGE..GS13#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70240

1GFE..GS13#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-70060

1GFE,1GGZE,1GGE..GS13#

 1
22275 - GASKET, AIR FLOW METER
22275-43010

1GFE..GS136;1GE,1GFE,1GGZE,1GGE..GS130,131

 1
53299B - DUCT, COOL AIR INTAKE
53299-30160

GS13#..EFI,HTWC,SPC,TWC

 1
Common parts
90105-06057
90119-08078
90119-08848
90119-08852
90179-06158
90339-05012
90541-11007
96111-10750
96111-10830
96111-10900
