GS130-AEPFD (1991)
Toyota Crown
ILLUST NO. 1 OF 4(9110-9308)GS130,131,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ; (9308- )GS130,13
ﾌﾛﾝﾄ--ﾒ-ｶ- ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30670 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88501-30771 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88501-30670 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-30040 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88508-30040 |
GS130..5F..DLX;GS136,LS136..DLX,SDX;GS130..SED..(4FC,4H)..(DLX,SDX) |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-30040 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88508-30040 |
GS130..5F..DLX;GS136,LS136..DLX,SDX;GS130..SED..(4FC,4H)..(DLX,SDX) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-3A560 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88510-3A760 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30332 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515-30333 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515-30380 |
GS13#,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30610 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88539-30610 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-30750 |
GS136..STD;GS130,131,JZS13#,LS130,131 |
1 | ||
| 88625-30750 |
GS136..STD;GS130,131,JZS13#,LS130,131,YS130 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 90987-02004 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 90987-02004 |
GS13#,LS13#..DLX,ROY,SALEX,SDX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30680 |
GS130..TWLPG ﾘﾔ |
1 | ||
| 88650-30590 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28120 |
GS130..TWLPG ﾘｱ ｴｱｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88723-30070 |
GS130..TWLPG ｸﾘ-ﾝ ｴｱﾌｲﾙﾀ |
1 | ||
| 88880B - FILTER ASSY, CLEAN AIR | ||||
| 88880-30030 |
GS13#,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,SDX |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-30660 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 82711-3A690 | ||||
| 87116-14010 | ||||
| 88626-33010 | ||||
| 88688-3A250 | ||||
| 90119-06246 | ||||
| 90159-60195 | ||||
| 90179-06239 | ||||
| 93540-14012 | ||||
| 93540-15010 | ||||

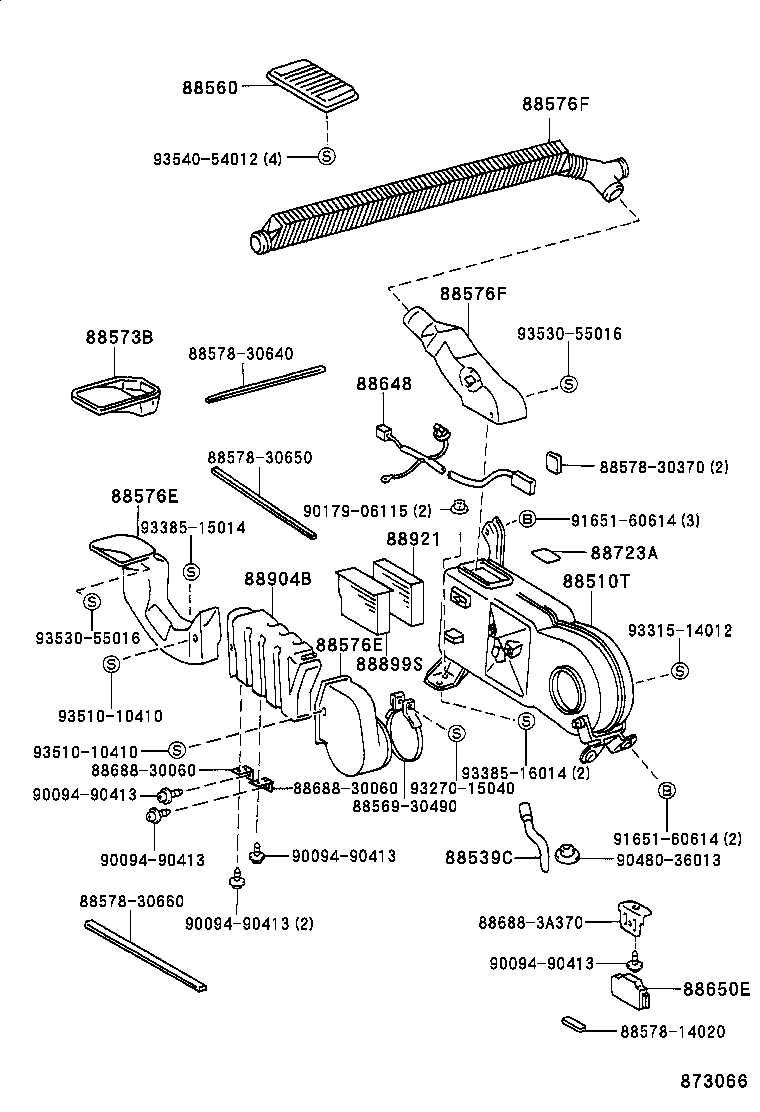

ILLUST NO. 2 OF 4(9112-9512)4FC..TWLPG
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-3A770 |
GS130..4FC..TWLPG |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30680 |
GS130..4FC..TWLPG |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-30320J0 |
GS130..4FC..TWLPG;GS130,131,JZS131,LS130,131..SED..(SALEX,SDX)..(HTWC,TDEC,TWC) DK.BLUE,TRIM8# |
1 | ||
| 88573B - BASE, GRILLE | ||||
| 88576-3A310 |
GS130..4FC..TWLPG |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A320 |
GS130..4FC..TWLPG FRONT |
1 | ||
| 88576-3A330 |
GS130..4FC..TWLPG REAR |
1 | ||
| 88576E - DUCT, COOLER AIR, NO.1 | ||||
| 88576-3A320 |
GS130..4FC..TWLPG FRONT |
1 | ||
| 88576-3A330 |
GS130..4FC..TWLPG REAR |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-30860 |
GS130..4FC..TWLPG DUCT TO DUCT |
1 | ||
| 88576-3A340 |
GS130..4FC..TWLPG DUCT TO UNIT |
1 | ||
| 88576F - DUCT, COOLER AIR, NO.2 | ||||
| 88576-30860 |
GS130..4FC..TWLPG DUCT TO DUCT |
1 | ||
| 88576-3A340 |
GS130..4FC..TWLPG DUCT TO UNIT |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30850 |
GS130..TWLPG |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-30540 |
GS130..TWLPG ﾘﾔ |
1 | ||
| 88650-30540 |
JZS130..ROY;GS130..SED..(SALEX,SDX);GS131,JZS131,133,LS130,131..SED |
1 | ||
| 88650-30600 |
GS130..TWLPG ﾌﾛﾝﾄ |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28120 |
GS130..TWLPG ﾘｱ ｴｱｺﾝﾃﾞｲｼﾖﾅ |
1 | ||
| 88723-30070 |
GS130..TWLPG ｸﾘ-ﾝ ｴｱﾌｲﾙﾀ |
1 | ||
| 88899S - FRAME, FRONT COOLER | ||||
| 88899-20231 |
GS130..TWLPG |
1 | ||
| 88904B - CASE SUB-ASSY, AIR PURIFIER | ||||
| 88904-30010 |
GS130..TWLPG |
1 | ||
| 88921 - FILTER, AIR PURIFIER, NO.1 | ||||
| 88926-20021 |
GS130..TWLPG |
1 | ||
| Common parts | ||||
| 88569-30490 | ||||
| 88578-14020 | ||||
| 88578-30370 | ||||
| 88578-30640 | ||||
| 88578-30650 | ||||
| 88578-30660 | ||||
| 88688-30060 | ||||
| 88688-3A370 | ||||
| 90094-90413 | ||||
| 90179-06115 | ||||
| 90480-36013 | ||||
| 91651-60614 | ||||
| 93270-15040 | ||||
| 93315-14012 | ||||
| 93385-15014 | ||||
| 93385-16014 | ||||
| 93510-10410 | ||||
| 93530-55016 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 4(9110- )GS130,136,LS136 ; (9112-9512)YS130
ﾌﾛﾝﾄ--ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30670 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88501-30771 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88501-30670 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-30040 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88508-30040 |
GS130..5F..DLX;GS136,LS136..DLX,SDX;GS130..SED..(4FC,4H)..(DLX,SDX) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-3A560 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 88510-3A760 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30332 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515-30333 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88515-30380 |
GS13#,JZS13#,LS130,131..DLX,ROY,ROYG,SALEX,SDX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30610 |
GS13#,JZS13#,LS130,131,YS130 |
1 | ||
| 88539-30610 |
GS13#,JZS13#,LS130,131 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-30750 |
GS136..STD;GS130,131,JZS13#,LS130,131 |
1 | ||
| 88625-30750 |
GS136..STD;GS130,131,JZS13#,LS130,131,YS130 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30680 |
GS130..TWLPG ﾘﾔ |
1 | ||
| 88650-30590 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-30660 |
GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88578-16290 | ||||
| 88626-33010 | ||||
| 90099-00968 | ||||
| 90179-06054 | ||||
| 93385-15010 | ||||
| 93540-14008 | ||||

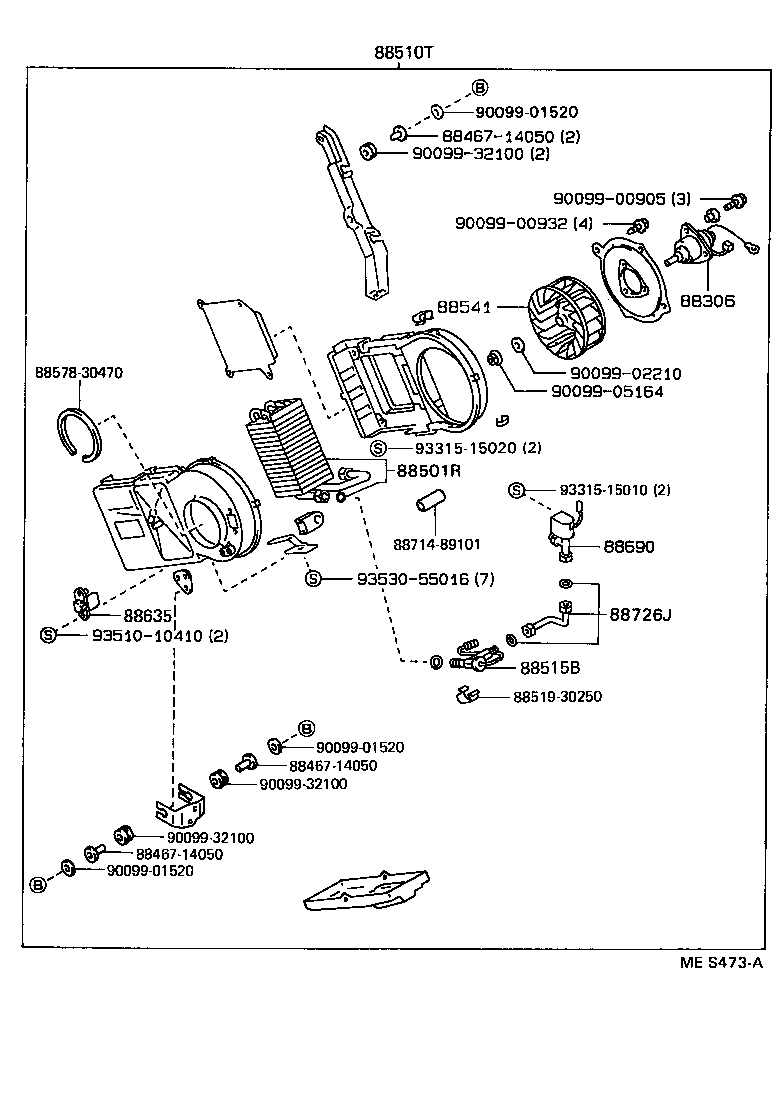

ILLUST NO. 3 OF 4(9112-9512)TWLPG
ﾘﾔ ｸ-ﾘﾝｸﾞﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-91701 |
JZS130..ROY;GS130..4FC..TWLPG |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-30730 |
GS130..4FC..TWLPG |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-3A770 |
GS130..4FC..TWLPG |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30310 |
JZS130..ROY;GS130..4FC..TWLPG;GS130,131,JZS131,133,135,LS130,131..SED..(ROY,ROYG,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88541 - FAN, BLOWER | ||||
| 88541-30270 |
JZS130..ROY;GS130..4FC..TWLPG |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-30290 |
JZS130..ROY;GS130..4FC..TWLPG;GS130,131,JZS131,133,LS130,131..SED..(ROY,SALEX,SDX)..(HTWC,TDEC,TWC) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-30520 |
JZS130..ROY;GS130..4FC..TWLPG |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88519-30250 | ||||
| 88578-30470 | ||||
| 88714-89101 | ||||
| 90099-00905 | ||||
| 90099-00932 | ||||
| 90099-01520 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-32100 | ||||
| 93315-15010 | ||||
| 93315-15020 | ||||
| 93510-10410 | ||||
| 93530-55016 | ||||
